SimpliFire • SF-BI30-EB, SF-BI36-EB • 2040-980 Rev. K • 7/23
8
D. Location
Note: If this unit is installed in a bathroom, it must be
protected by GFI receptacle or circuit. If receptacle
is used it must be readily accessible. This electrical
appliance is not water tight. To prevent electrical shock, it
must be installed as to prevent water from entering unit. It
must be installed away from showers, tubs, or other water
sources. Never locate the appliance where it may fall into
a bathtub or other water container.
When choosing a location for your replace ensure that
the general rules are followed:
• For best results, install out of direct sunlight.
• Power supply service must be installed within
proximity of electric replace prior to nishing to
avoid reconstruction.
• See Figure 3.C for appliance dimensions and to
determine location of appliance installation.
E. Clearance to Combustibles
The SimpliFire Built-in Series is a zero clearance design,
with the exception of the top of the unit when hard-
wired for 240V. Any insulation and vapor barrier should
be placed a minimum of 2" from the top of the rebox.
Bend the supplied stand-offs to a vertical position to
maintain this clearance.
Minimum Clearance to Combustibles
120V 240V
Sides.......................0 in..................0 in
Floor........................0 in..................0 in
Top..........................0 in..................2 in
Back........................0 in..................0 in
Front.......................36 in...............36 in
Mantels..........See Figure 3.1
F. Electrical Supply Circuit Requirements
Plan the location of the appliance so that it will have ad-
equate electric power. A 15 AMP, 60Hz circuit is required
for both 120V and 240V installations. Additional appli-
ances on the same circuit as this appliance may exceed
the current rating of that circuit. A dedicated circuit is not
required, but is preferred to prevent circuit breaker trips
or fuse failure.
Reference Section 4.F for more complete detail on com-
pleting electrical installation.
2 in.
2 in.
2 in.
6 in.
12 in.
Measurements from top
surface of the unit.

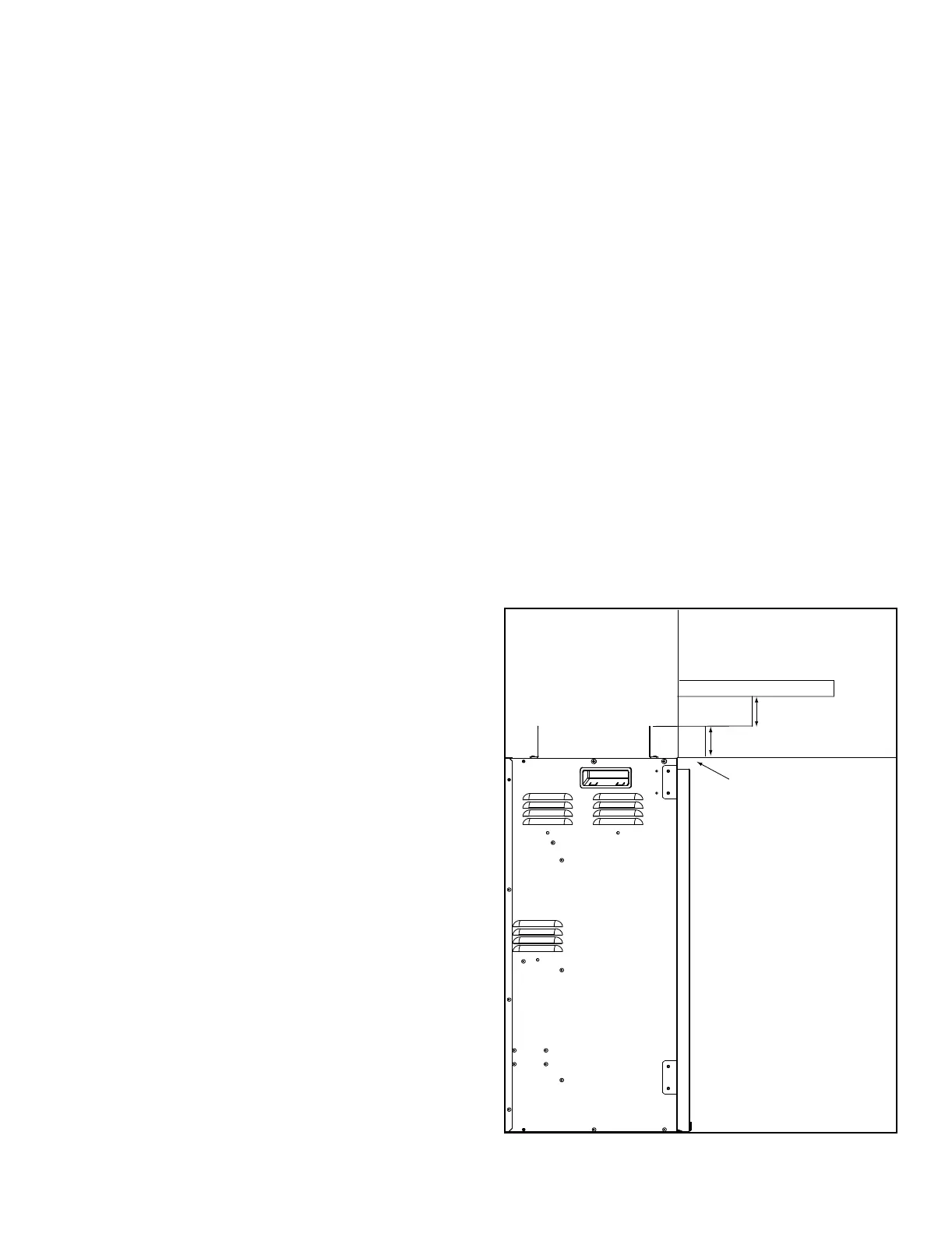

Figure 3.1 Minimum Vertical and Maximum Horizontal
Dimensions of Combustible Mantels.
G. Positioning of Top Stand-offs
When this unit is to be hard-wired for 240V, a clearance
of 2 inches is required on the top of the unit. Bend the
supplied stand-offs on the top of the unit to a vertical
position to maintain this clearance.
Conrm electrical connection switch is properly
positioned to reect 120V or 240V, depending on wiring
choice.
WARNING! Risk of Fire! Keep electrical cords, drapery,
furnishings or other combustibles at least 3 ft. (0.9 m)
from the front of the electric replace.

