Simpson 460 4 Series - Ac Current Measurements

Operation

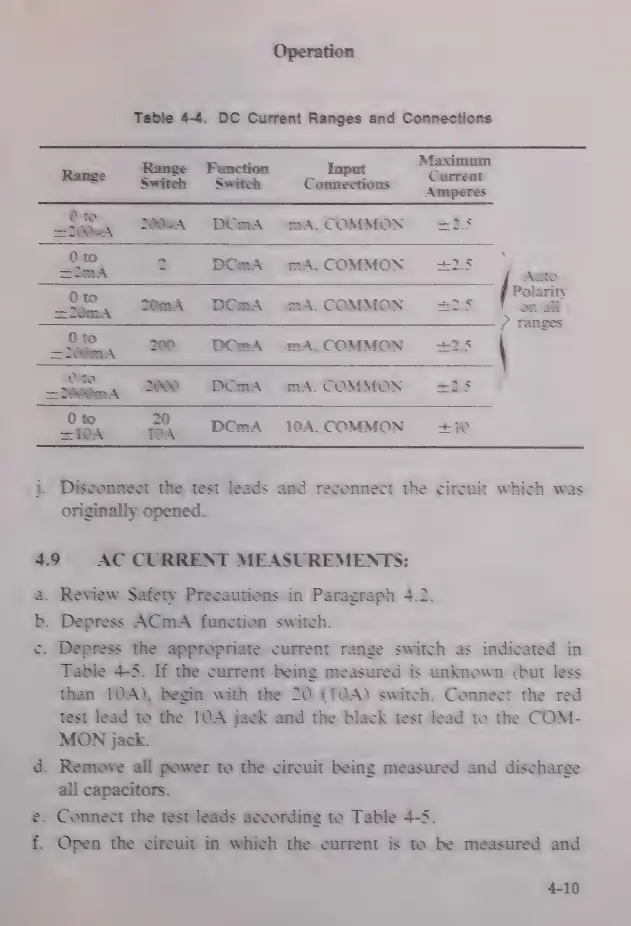

Table 4-4. DC Current Ranges and Connections
< Maximum
Fumction Input à
Range Range Š > Current
Switch Switch Connections A
„ОВА 2002A DCmA mA, COMMON +25
0 to š à у
s MMON 325
+2mA 2 DCmA mA, COMMO frora
0 to T D Polarity
+20mA 20mA DCmA mA, COMMON +25 on ali
= ranges
0 to ET.
2200mA 700 DCmA mA, COMMON +23
2000 А 2000 — DCmA mA, COMMON +25
0 to 20 3 T
4104 _ 104 DOMA 10A,COMMON +10
j. Disconnect the test leads and reconnect the circuit which was
originally opened.
49 AC CURRENT MEASUREMENTS:
a. Review Safety Precautions in Paragraph 4.2.
b. Depress ACmA function switch.
c. Depress the appropriate current range switch as indicated in
Table 4-5. If the current being measured is unknown (but less
than 10A), begin with the 20 (10A) switch. Connect the red
test lead to the 10A jack and the black test lead to the COM-
MON jack.
d. Remove all power to the circuit being measured and discharge
all capacitors.
e. Connect the test leads according to Table 4-5.
f. Open the circuit in which the current is to be measured and
4-10
