Simpson H335 User Manual

(25.000) or goes below -15000 (-15.000).
2 point Linearization: In this mode the display will relate indirectly to the electrical
input. This case is typically used to create a process meter.
Using the example of a 20V DC meter, a 1 to 10VDC process output will be
monitored and will display the result in percent. 1 Volt represents 0% and 10 Volt
represents 100%. Notice that on 2 point linearization no symmetry is assumed.
The display will show over-range (EEE or -EEE) when the display exceeds 10000,
(100.00), (input above 10V even though the card is designed to handle up to 20V)
or goes below 0(0.00).
Multi-point Linearization: In this mode the display will not relate to the electrical
input. This case is typically used to flatten a logarithmic response. This feature is
only included on the 4-1/2 digit unit. Up to 16 points of data can be entered.
Using the example of a 20V DC meter, we wish to monitor a -5 to 20V DC pressure
transducer that spans 0 psi to 300 psi but in a non linear way.
The transducer manufacturer provides the following information:
-5 Volts = 0 Psi
0 Volts =10Psi
5 Volts = 40Psi
15 Volts = 80Psi
18 Volts =200Psi
20 Volts =300Psi
We will use this data to develop 6 point linearization.
Notice that on Multi-point linearization no symmetry is assumed. The display will

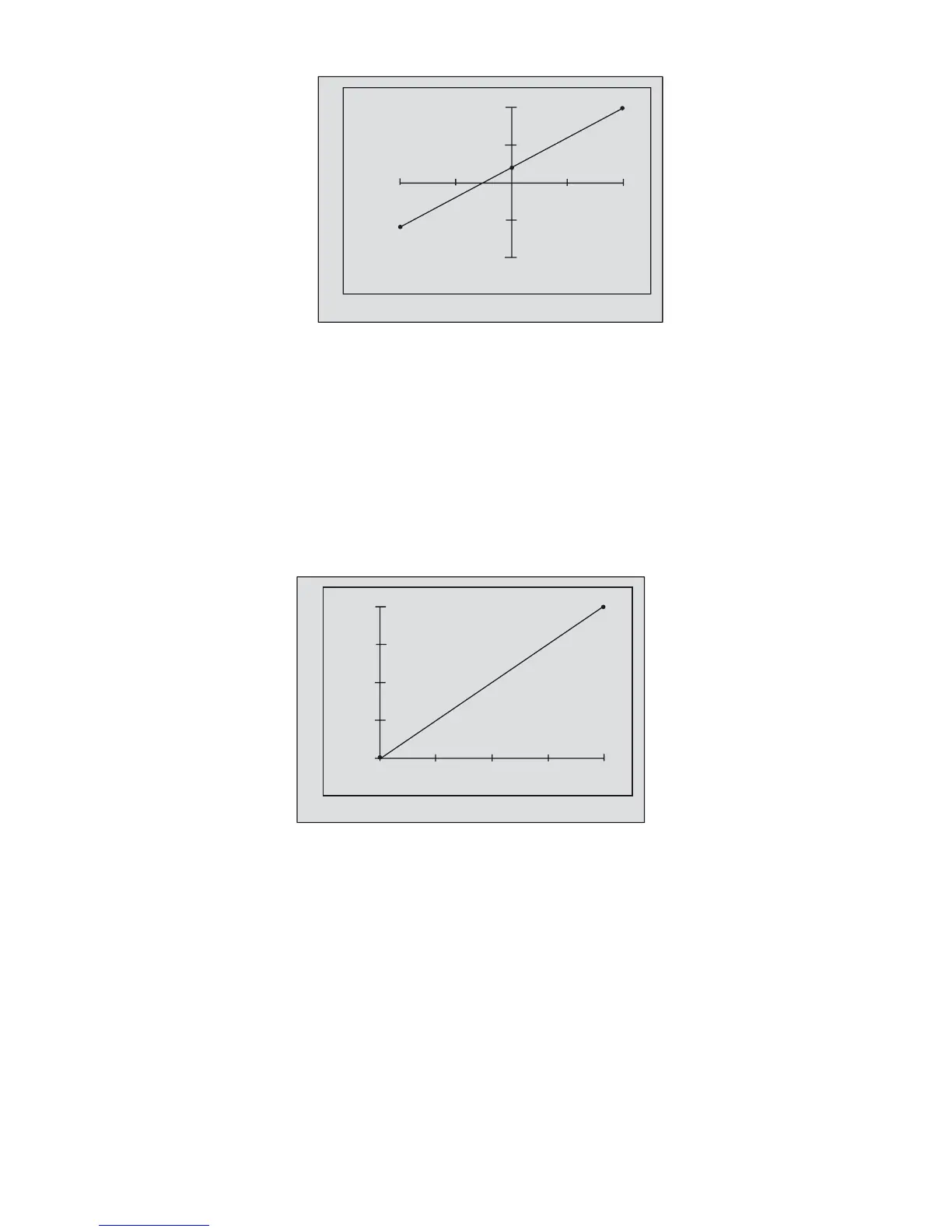

Figure 6-3
Figure 6-4
-20.000 -10.000 0.000
10.000
0.000
-25.000
25.000
12.500
-12.500
20.000
Electrical Value
D
i
s
p
l
a
y
V
a
l
u
e
10.00
7.75
5.50
3.251.00
100.00
75.00
50.00
25.00
0.00
Electrical Value
D
i
s
p
l
a
y
V
a
l
u
e
27
