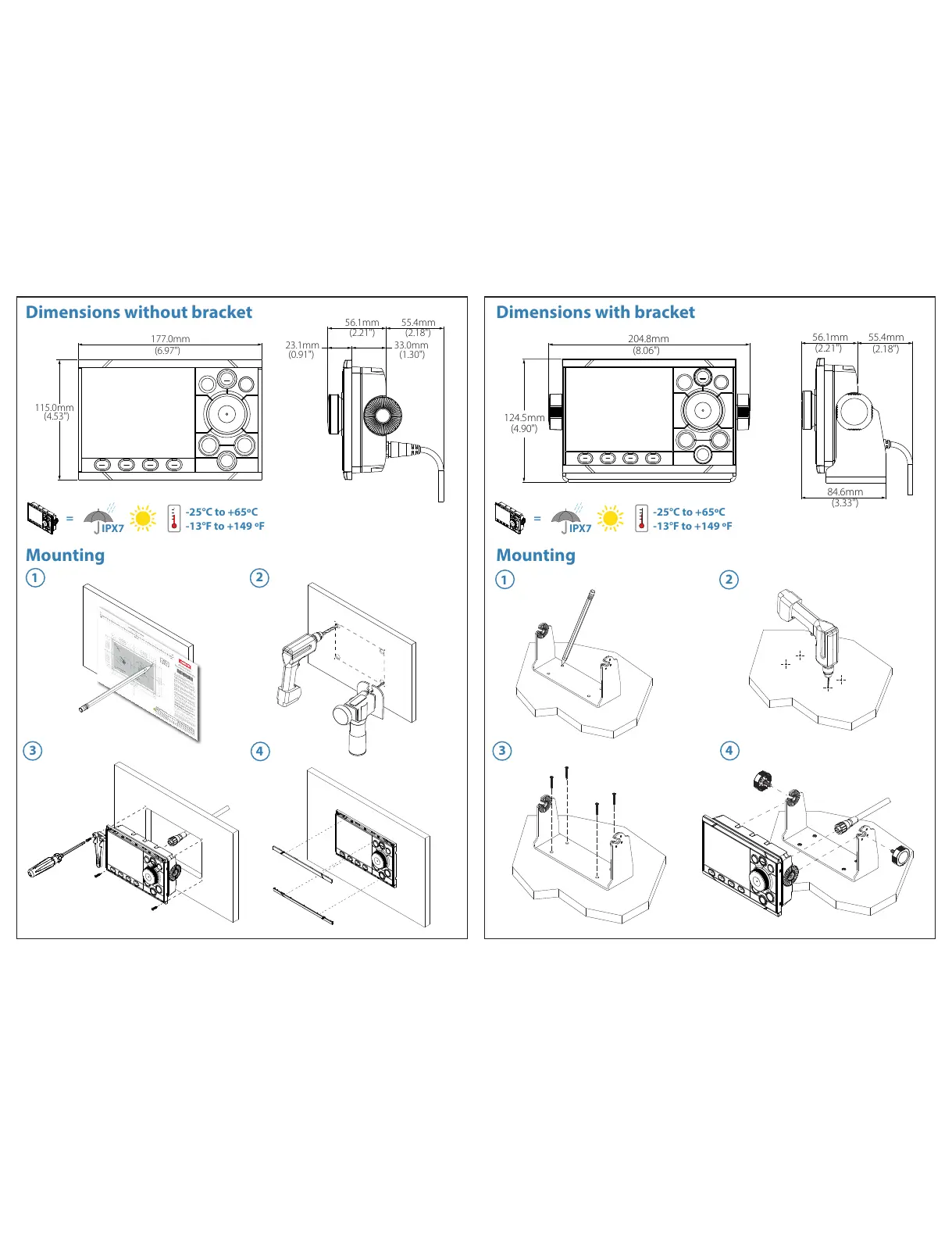

Simrad A2004 Installation Guide

=
IPX7
-25°C to +65ºC
-13°F to +149 ºF
177.0mm
(6.97")
56.1mm
(2.21")
23.1mm
(0.91")
33.0mm
(1.30")
55.4mm
(2.18")
115.0mm
(4.53")
Mounting Mounting
204.8mm
(8.06")
56.1mm
(2.21")
55.4mm
(2.18")
84.6mm
(3.33")
124.5mm
(4.90")
2
4
1
Dimensions with bracket
3
Dimensions without bracket
2
4
1
3
=
IPX7
-25°C to +65ºC
-13°F to +149 ºF
