Simrad AP70 Operation Manual

46 |

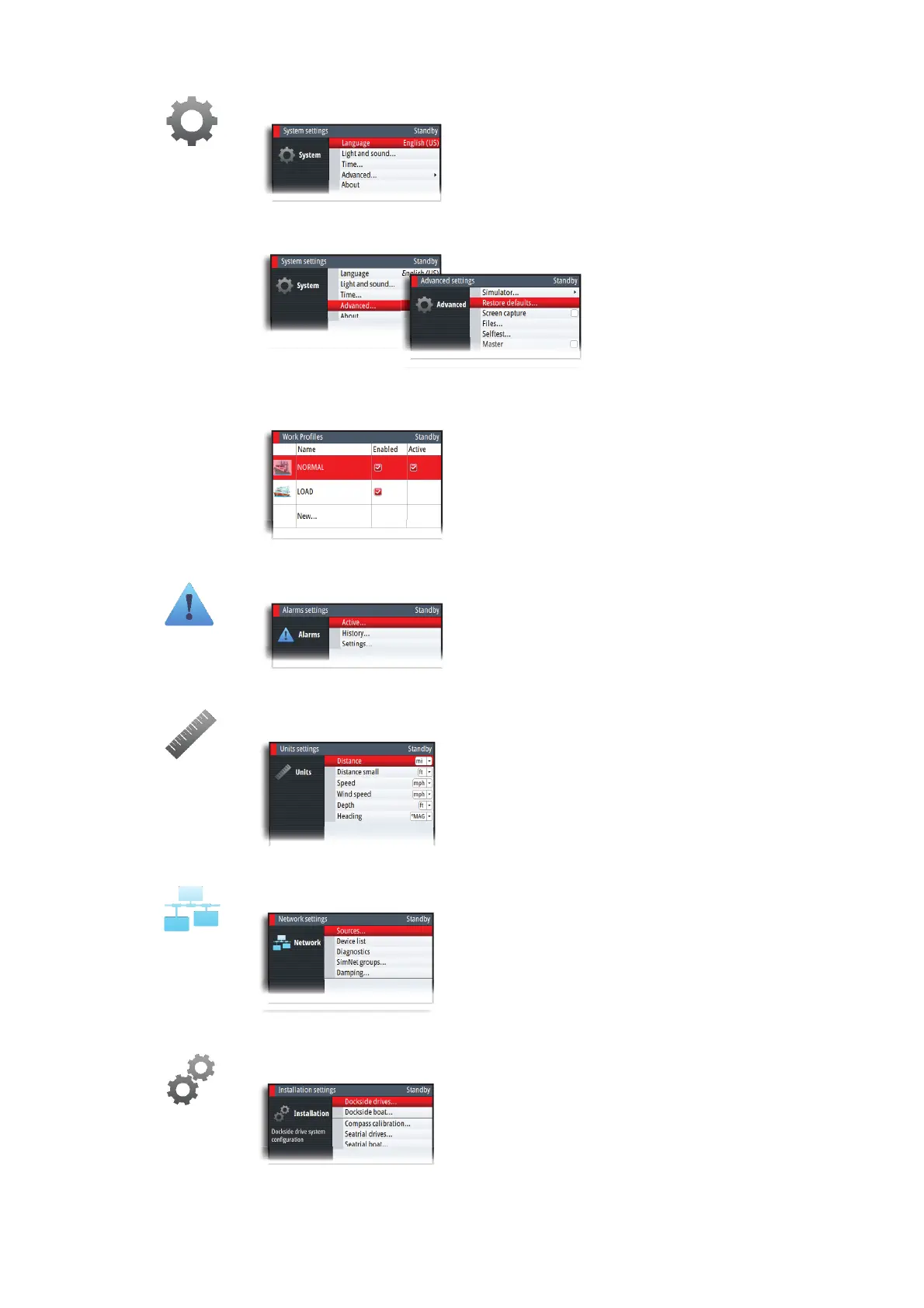

Menu overview | AP70/AP80 Operator Manual
System
User settings that have not any aff ect on autopilot
performance.
Advanced system settings
Work pro les
Used for creating and managing the vessel’s work profi les.
Described in “Work profi le setup” on page 30.
Alarms
Alarm listings and settings.
Described in “The Alarm dialog” on page 35.
Units
Units of measure used on display, in dialogs and menus.
Network
List of devices connected to the CAN bus network.
Used for setup, diagnostics and confi guration.
See “System confi guration” on page 47.
Installation
Includes dockside and seatrial calibrations.
See “System confi guration” on page 47.

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
