Simrad IS15 User Manual

IS15 Wind Manual
16 20220752G
Wind data Output via NMEA port
General
Power Requirement 10,8 to 15,6VDC, 70 mA, (100 mA with max. lighting)
Size See Figure 4-1
Weight 225 grams
Environmental Protection IP56 from front, IP44 from rear
Temperature Range
Operation: 0
°C to +55°C (+32 to +130°F)
Storage: -30
°C to +80°C (-22 to +176°F)
1
1
0
m
m
[
4
,
3
3
"
]
21 mm
[0,83"]
30 mm
[1,18"]
85 mm Dia
[3,35"].
(Panel cut-out)
32 mm
[1,26"]
1
1
0
m
m
[
4
,
3
3
"
]
110 mm [4,33"]
9 mm
[0,35"]

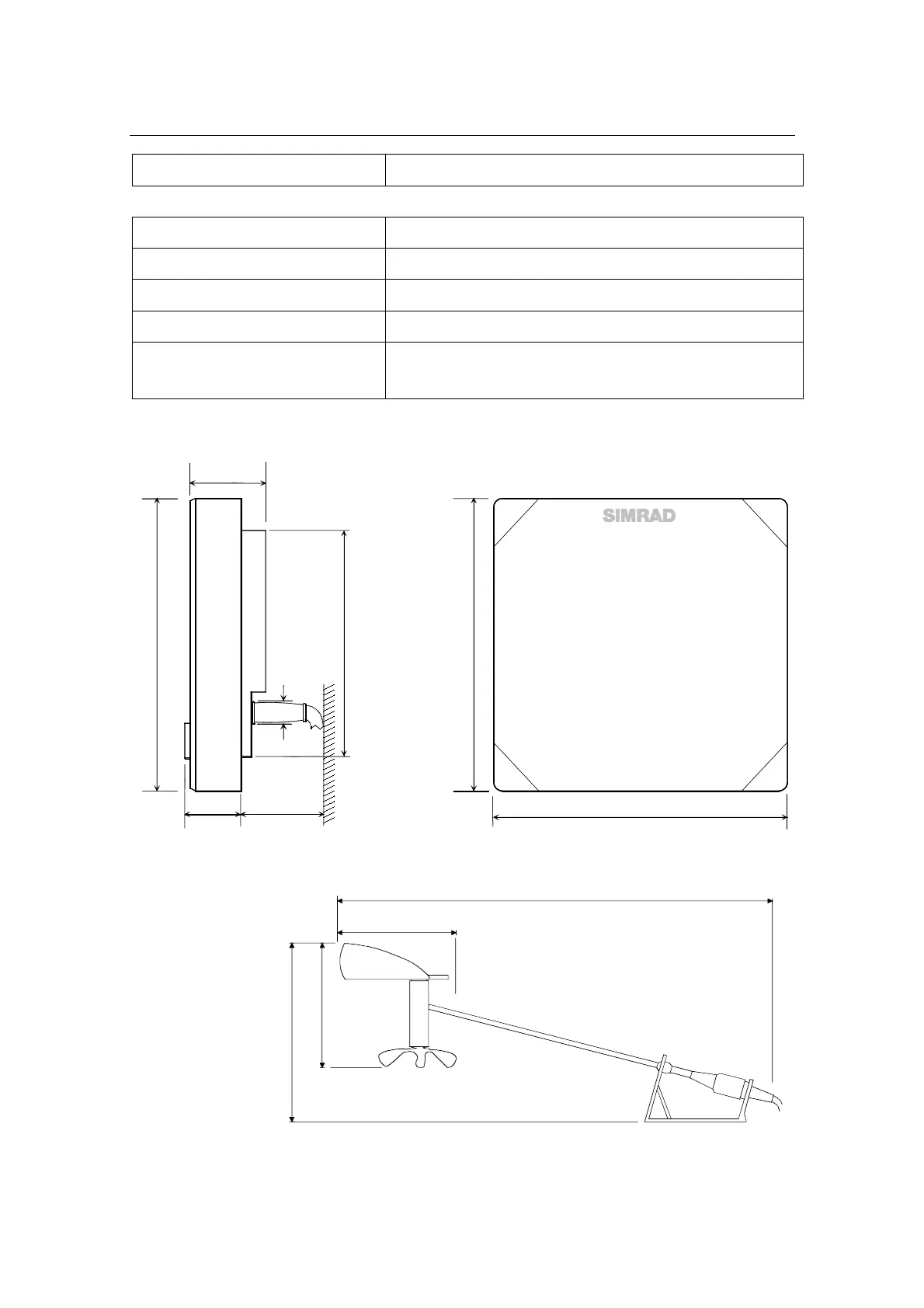

Figure 4-1 IS15 Dimensions
210 mm (8.2 in)
600 mm (23.6 in)
178 mm (7 in)
345 mm (13.6 in)
Figure 4-2 IS15 Wind Transducer

Simrad IS15 Specifications

General

Brand	Simrad
Model	IS15
Category	Transducer
Language	English
