IS15 Wind Manual
20 20220752G
2. Carefully position the self-adhesive template provided on
the surface where the display head is to be mounted.
3. Allow sufficient space for the protection cover as shown on
the template when instruments are installed adjacent to
each other, see Figure 5-2.
4. Check the location on the other side of the panel or
bulkhead to confirm suitability. Drill a small pilot hole first.
5. Open out the pilot hole to 85 mm (3.4”) using a cutter in a
hand-held brace, or an electric drill saw (86 mm or 3 3/8”).
6. Drill the four screw holes using a 2.5 mm (0.1”) drill.
7. Secure the instrument using the four self-tapping screws
provided. Ensure that the sealing gasket is correctly located.
8. Apply the front panel corners.
Note ! Ensure that all sockets without cable connections have the protection
plug inserted.
Caution ! Do not over-tighten fixing screws.
Do not use sealing compound on the instrument back.
Do not use WD40 or any solvent on any part of the instrument.

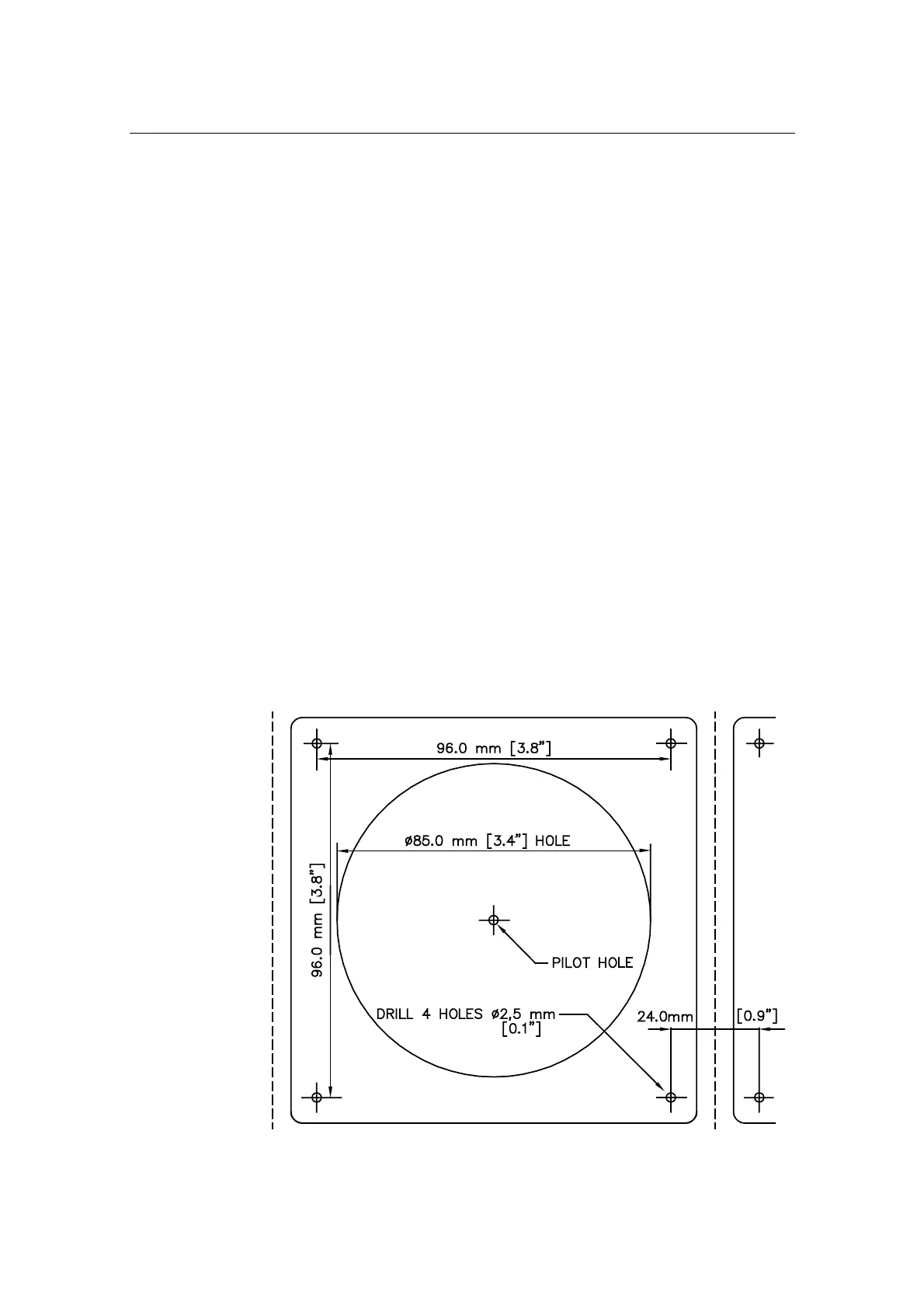

Figure 5-2 - Mounting Details (Not To Scale)
