Simrad NSS evo2 Software Upgrade Instructions

8 |
Update procedure | Software upgrade instructions

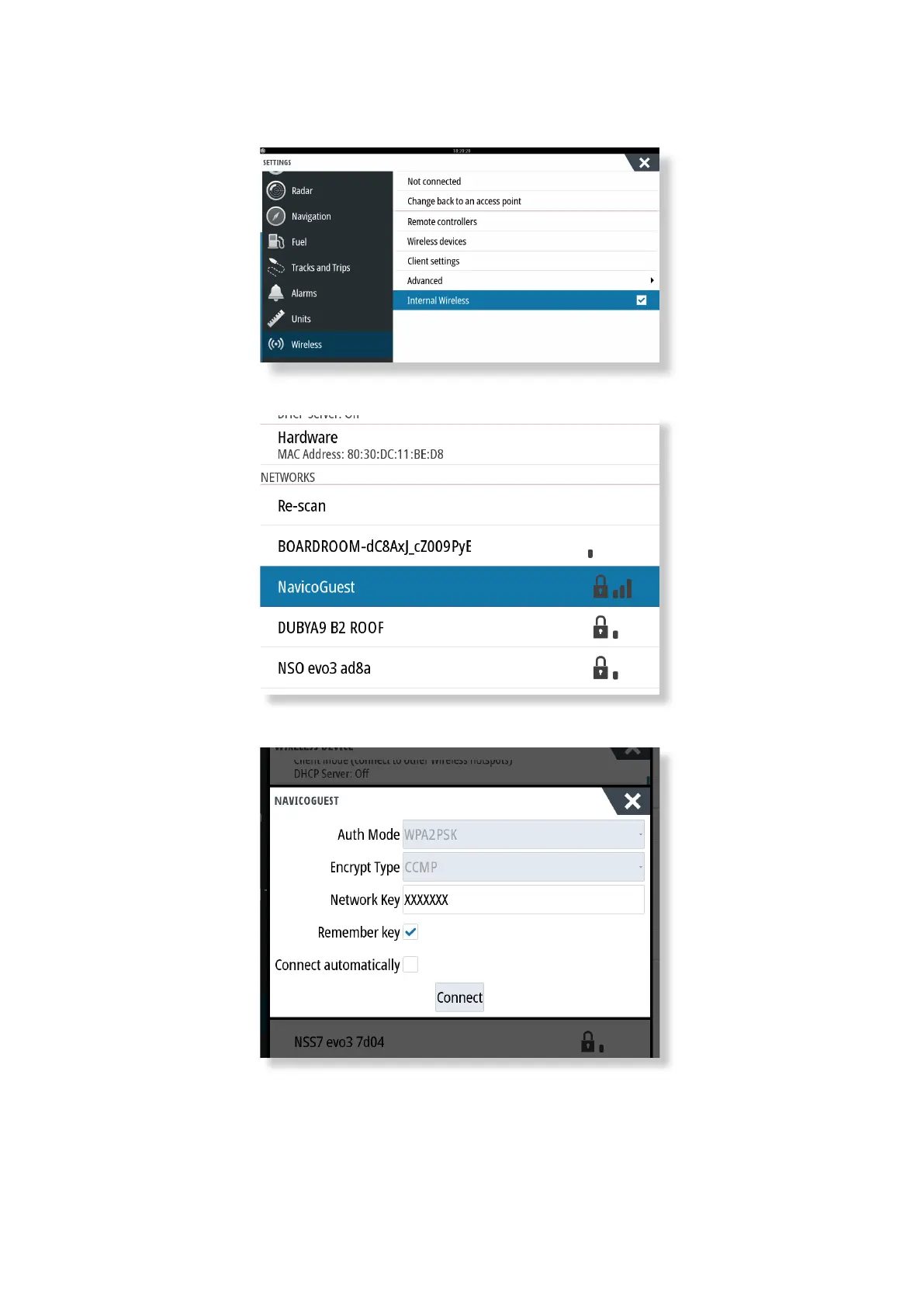

Connect the MFD to the Internet
1 Access the Wireless settings page (HOME>SETTINGS>WIRELESS). Most current models of MFD
will have internal wireless. Make sure this is active (by default this is off)
2 Select the menu item “Connect to a wireless hotspot...” or “Not connected”
3 Choose the desired Hotspot
4 Enter the Password (network Key) then select connect
If there is a new version of software, the following will be presented. If this is the only MFD
on the network or you only want to update this MFD, then select “Download.” Or to update
remote MFDs or devices select “Go to Updates List”(see “” on page 10)

Simrad NSS evo2 Specifications

General

Display Size	7", 9", 12", 16"
Radar Support	Yes
Chartplotter	Yes
Autopilot Compatible	Yes
NMEA 0183	Yes
Video Input	Yes
Operating Temperature	-15°C to +55°C (5°F to 131°F)
