14

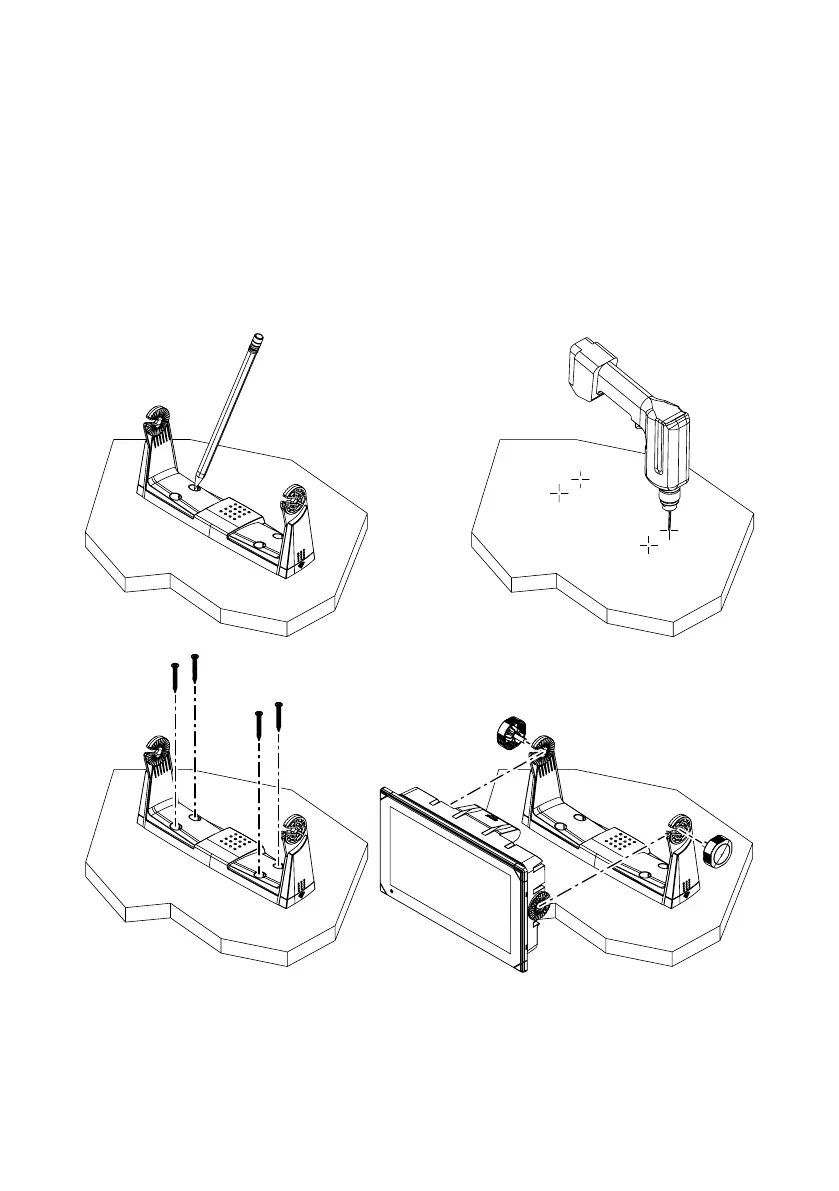

U-bracket mounting
1 Place the bracket in the desired mounting location. Ensure that the chosen location has
enough height to accommodate the unit tted in the bracket, and allows tilting of the unit.
Adequate space is also required on both sides to allow tightening and loosening of the knobs.
2 Mark the screw locations using the bracket as a template, and drill pilot holes.
3 Screw down the bracket using fasteners that are suitable for the material you are mounting
the bracket on.
4 Mount the unit to the bracket using the knobs. Hand tighten only.
¼ Note: The screws shown below are for illustration purposes only. Use fasteners that are suitable
for the material you are mounting the bracket on.
