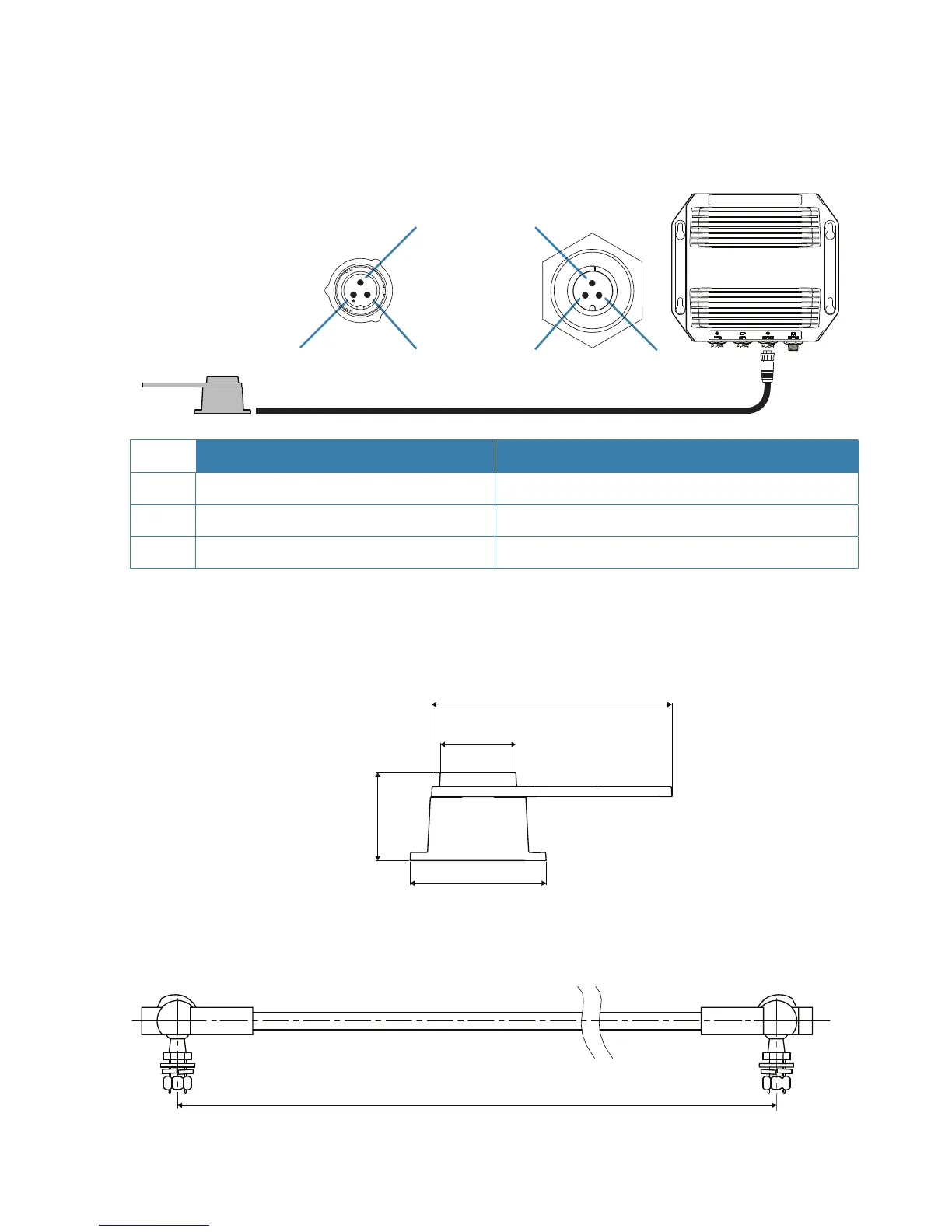

Wiring
The RF40 is equipped with a 15 m (49 feet) cable with connector (A). The unit
connects to the NAC-1/NAC-2 autopilot computer’s three pins rudder feedback
socket (B).
A B
3
12
3
1 2
Function Color
1 +5 V DC Red
2 Signal Yellow
3 -0 V DC Black
Dimensional drawings
RF40
177 mm (6.97”)
55 mm
(2.16”)
99 mm (3.90”)
65 mm
(2.56”)
Transmitter link
345 mm (13.6”)
