Installation | RS20 operator manual
Installation
This Simrad DSC VHF radio is designed to generate a digital
maritime distress call to facilitate search and rescue. To be
effective as a safety device, this radio must be used only within the
geographic range of a shore-based VHF marine Channel 70 distress
and safety watch system. The geographic range may vary but under
normal conditions is approximately 20 nautical miles.
Checklist
The following items should be supplied in the box. Check before
starting the installation and contact your dealer if an item is missing.
¼ Note: An antenna is not provided. Consult your Simrad dealer for
advice on selecting the correct antenna for your installation:
ENGLISH
Installation Manual
bandg.com
ENGLISH
Installation Manual
bandg.com
ENGLISH
Installation Manual
bandg.com
ENGLISH
VHF RADIO
User Guide
www.bandg.com | www.simrad-yachting.com | www.lowrance.com
5
1
2
11
10
8
7
9
6
3
4

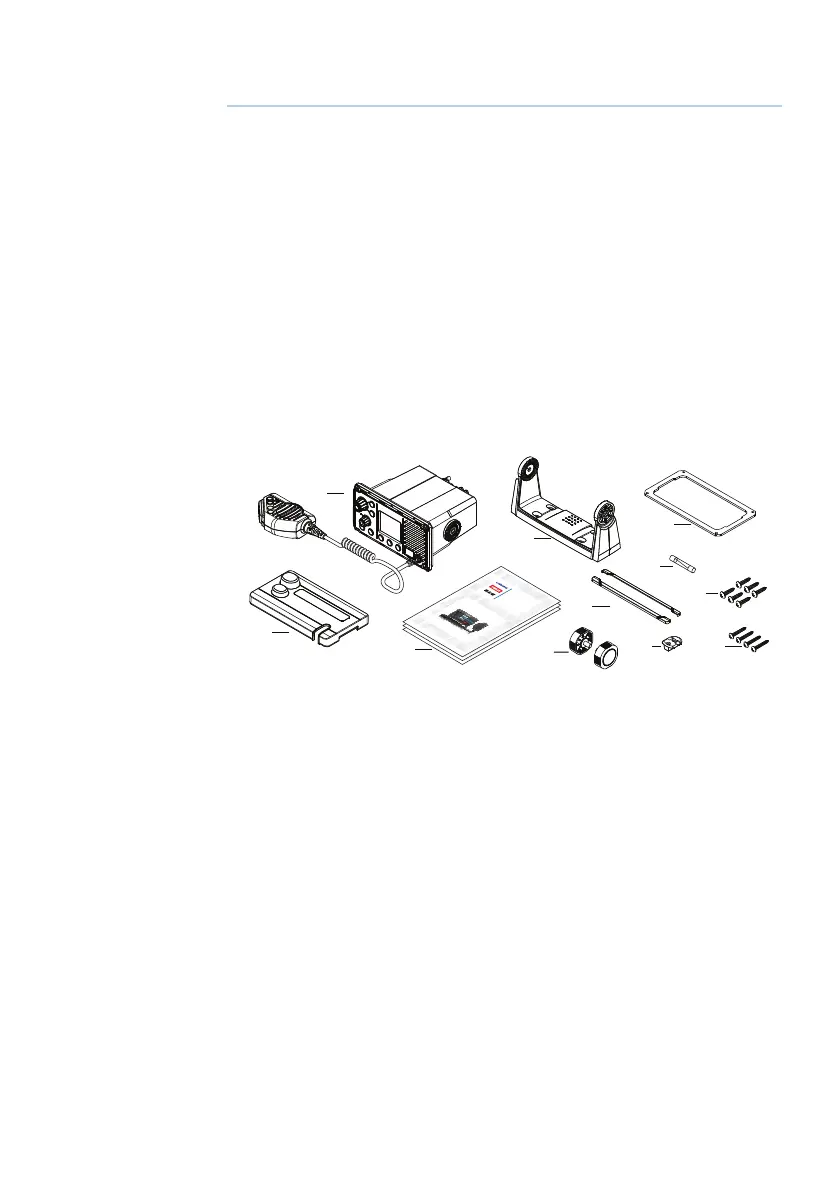

1. VHF radio with hand mic
2. Bracket for gimbal mounting
3. Gasket for recessed mounting
4. Sun cover
5. Documents:
- user’s manual
- warranty card
- mounting template
6. Knobs for bracket
7. bezel trim
8. 8 A (3 AG) spare fuse
9. Bulkhead mount for hand mic
10. 6 pcs 3.5 x 20 mm, stainless steel, panhead phillips
11. 4 pcs 4 x 25 mm, stainless steel, panhead phillips
