Installation | RS20 operator manual
antenna
6. NMEA 0183 TX_A (white): connect to RX_A of chart plotter
7. NMEA 0183 TX_B (brown): connect to RX_B of chart plotter
8. GND: optional ground connection. May help with induced noise issues.
9. Antenna: connect to a marine VHF antenna using 50 ohm cable fitted with
a PL-259 connector
10. Battery + (red): connect to vessel’s 12 V DC, via a switch panel or breaker
(comes with inline 8 amp fuse ready fitted)
11. Battery - (black): connect to vessel’s negative busbar
¼ Note: external speaker and plotter connections are optional.
First startup conguration
The first time the radio is powered up, the user is prompted to make
a series of setting selections in order to allow the radio to perform
to its full potential. Some steps must be completed; some are
optional and can be completed later. The steps are outlined below
for reference:

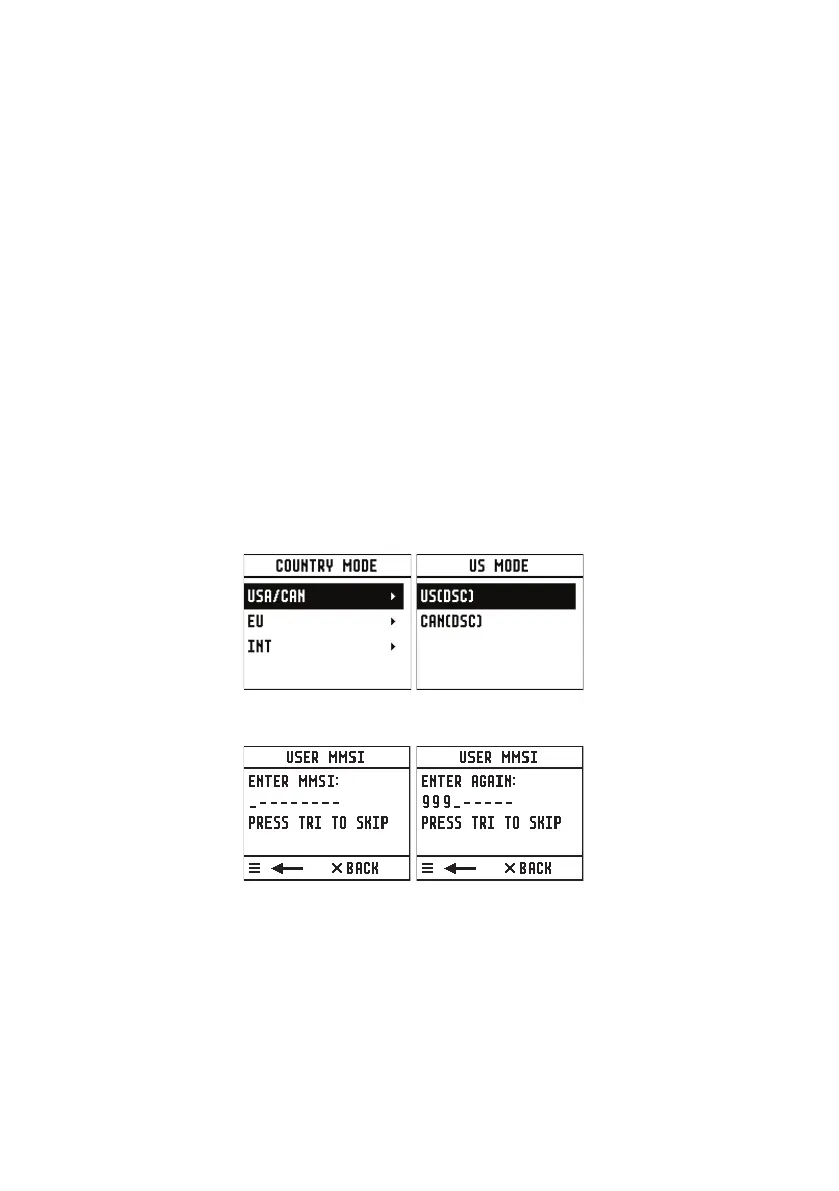

Select the region and country the radio will be operated in.
Enter MMSI number if known, or skip to next step. Re-enter number
to confirm correct entry.
¼ Note: MMSI entry can only be done once. Changing the MMSI
requires radio be returned to a Simrad dealer.
