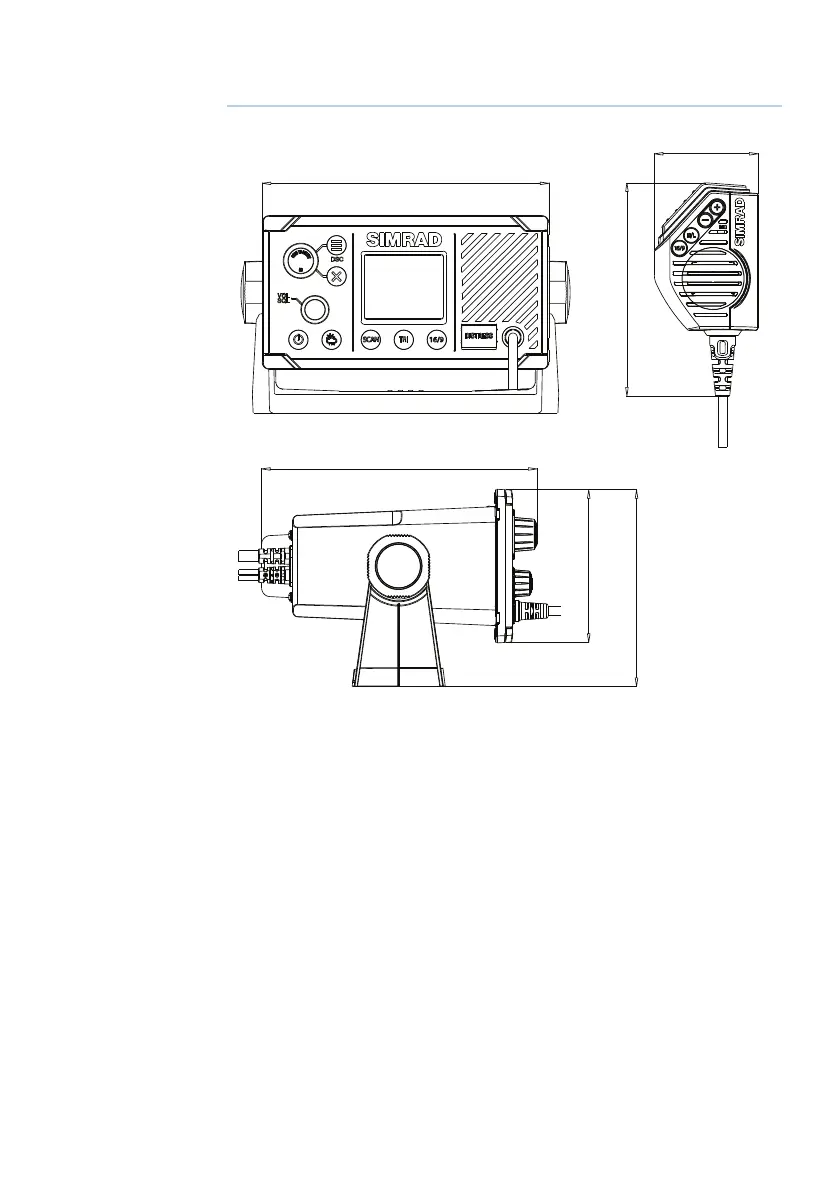

Dimensional drawings
165.9 mm (6.53”)
60 mm (2.36”)
123.4 mm (4.86”)
161.4 mm (6.35”)
89.2 mm (3.51”)
114.2 mm (4.5”)
