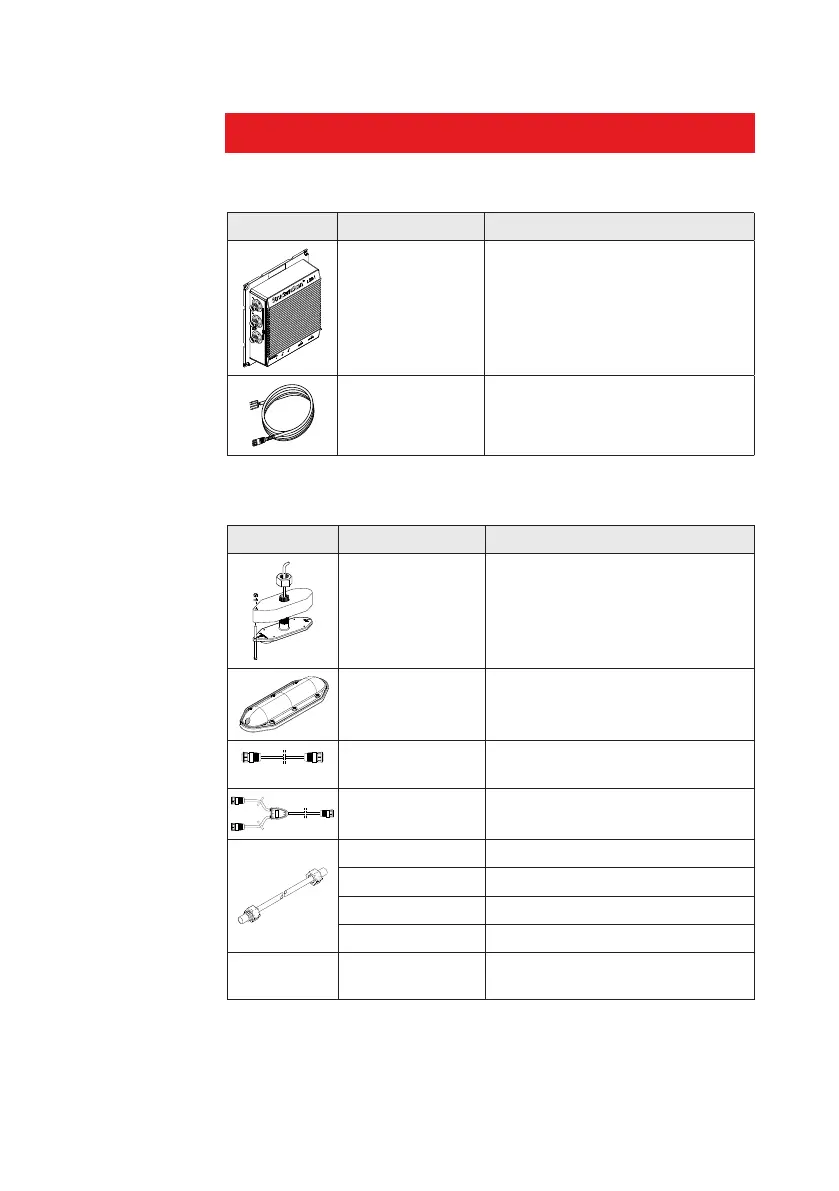

Page #13 background image
StructureScan LSS-1 Installation manual | 11
Spare parts and accessories
Spare parts
Item Part no. Description.
000-10238-001 Simrad LSS-1 module
032-0055-08 4 pin power cable
Assessories
Item Part no. Description.
000-00099-003
LSS-1 Thru-hull transducer,
including 9 m (30 ft) cable
000-00099-007
LSS-1 Skimmer mount
transducer, including 6 m
(20 ft) cable
LTW
LTW
000-00099-006
Transducer Extension cable,
3 m (10 ft)
000-10202-001
StructureScan Y-cable,
0.3 m (11.8”)
000-0127-51 Ethernet cable, 1.8 m (6 ft)
000-0127-29 Ethernet cable, 4.6 m (15 ft)
000-0127-30 Ethernet cable, 7.6 m (25 ft)
000-0127-37 Ethernet cable, 15.2 m (50 ft)
000-0124-70
Kit of 4 replacement caps for
connectors
Question and Answer IconNeed help?

Do you have a question about the Simrad StructureScan LSS-1 and is the answer not in the manual?

Simrad StructureScan LSS-1 Specifications

General IconGeneral
Frequency455/800 kHz
Beam Width0.5° (along track) x 50° (athwart track)
InterfaceEthernet
Weight2.2lbs (1kg)
TypeSide Imaging Sonar
CompatibilitySimrad NSS
Power Consumption1.5A
