StructureScan LSS-1 Installation manual | 5

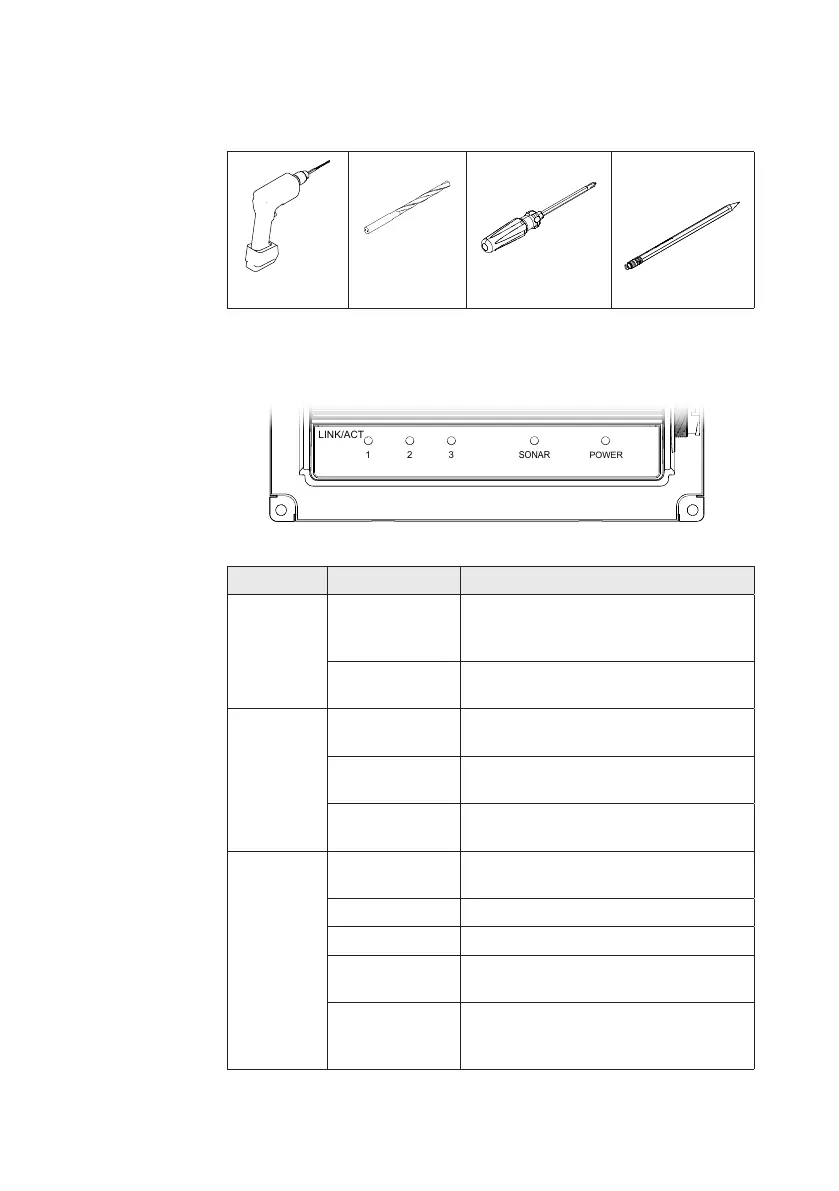

Required tools and supplies
Drill
2 mm
(5/64”)
Drill Bit
Phillips screw
driver Pencil
LSS-1 Indicator lights
IND. STATUS DESCRIPTION
1, 2 and 3
Off
No Ethernet communication
(cable unplugged, bad cable or
remote unit not powered)
Flashing -
yellow
Ethernet communication is
working (link/active light)
Sonar
Off
Transducer not connected or
cable/transducer is broken
On - Green
Transducer detected/locked on to
bottom
Flashing -
green
Transducer detected/not locked
on to bottom
Power
Off
No power or not switched on
(check yellow wire)
On - Red System booting
On - Green System operating
Slow ashing
- Red/green
Product in factory mode;
Ethernet communication working
Fast ashing -
Red/green
Product in factory mode; no
Ethernet communication (cable
unplugged or bad cable)
LINK/ACT
1 2 3 SONAR
POWER
