8 | StructureScan LSS-1 Installation manual

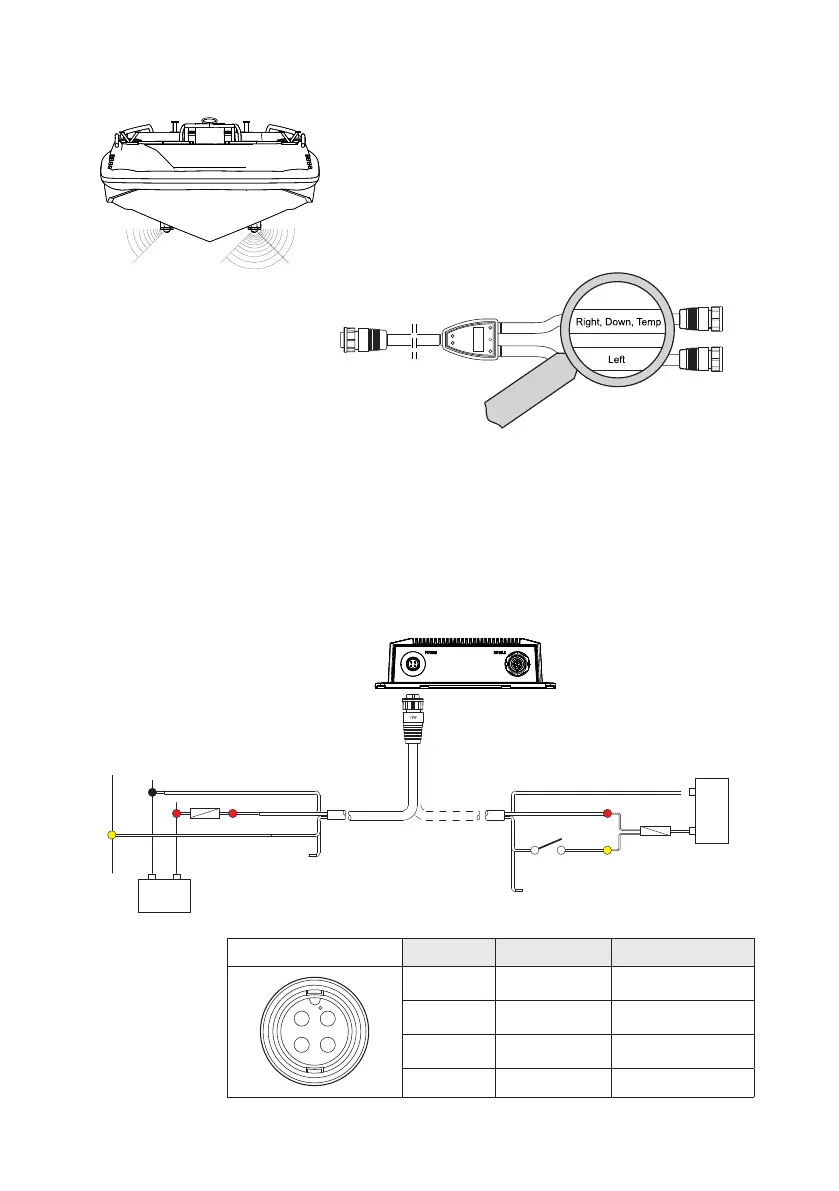

On boats with large dead rise angle two
StructureScan transducers can be used.
They are connected to the LSS-1 by using
the optional Y cable.
Connect the transducers according to the
labeling on the Y-cable.
Power connection
The unit will turn on when power is applied.
It is recommended to connect the LSS-1 to NSE Power
control bus (A), and set NSE to power control master.
Alternatively the unit can be powered directly from the
vessel’s battery (B).
Pin Color Signal
1
2
4
3
1 Black 12 V battery -
2 Blue NC
3 Red 12V battery +
4 Yellow Ignition sense
Red
Fuse
Black
NSE
Power
Control
bus
Black
BA
Yellow
Red
Yellow
Switch
Blue
(no connect)
Blue
(no connect)
12 V DC
12 V DC
+
_
+
_
LTWLTW
LTW
