Issue 1.1 19/09/03 SIMRAD
11

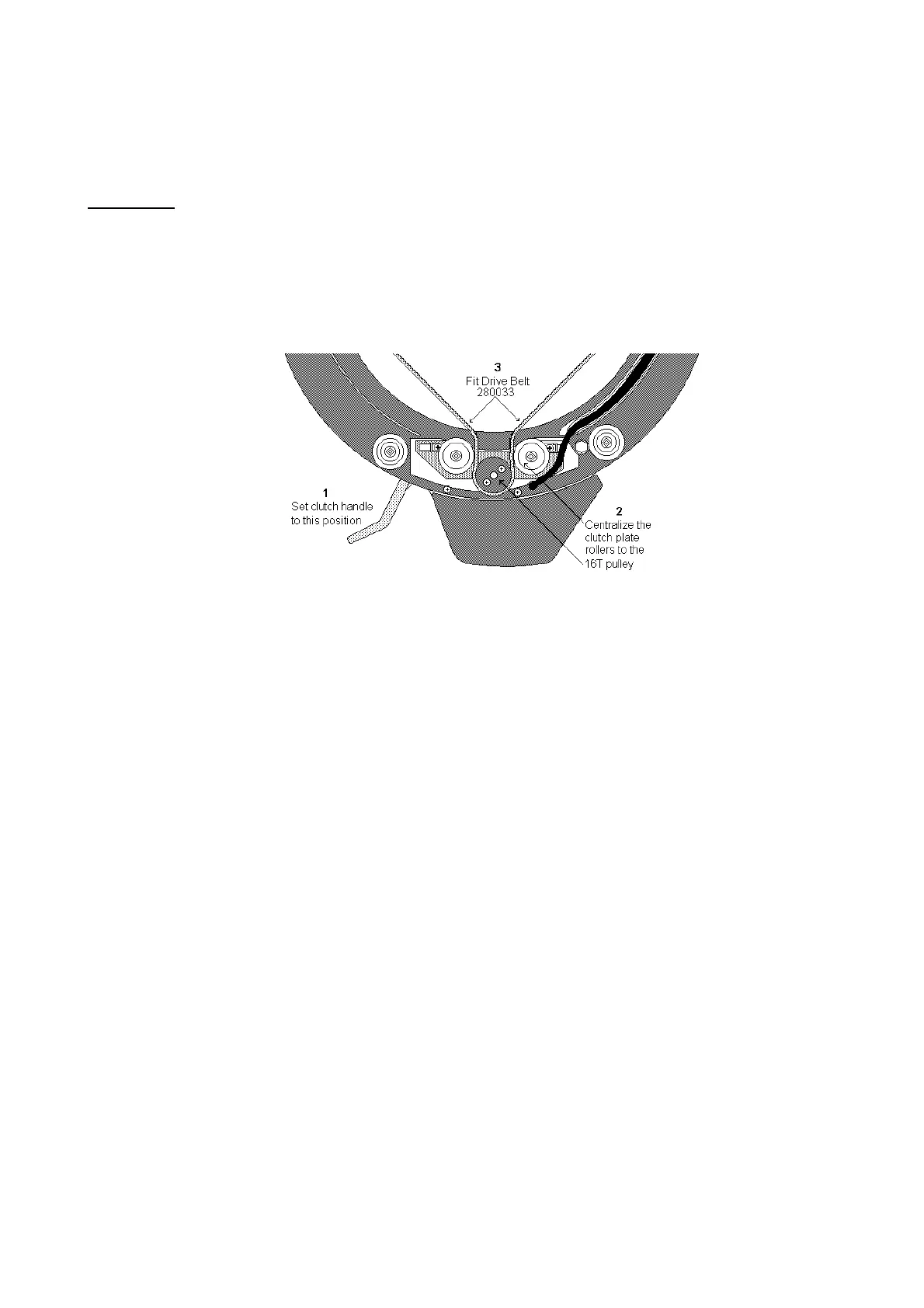

Final Assembly. Refer to the sketch below and set the clutch handle to the midway position.
Position the clutch roller plate so that the two rollers on the plate are equidistant about the 16T
drive pulley. Fit the belt as shown, and push the clutch lever up to capture the belt. Check all the
rollers are loose.
WARNING Care should be exercised in the following operation to avoid trapping fingers.
Place the Drive Ring Assembly (Spinning) over the belt in between the gear box housing, push the
belt up into ring and tuck the six rollers into the drive ring. When all the rollers are in the ring, turn
the unit over and tighten the six mushroom head screws on the rear.
