4.3 Installation Methods

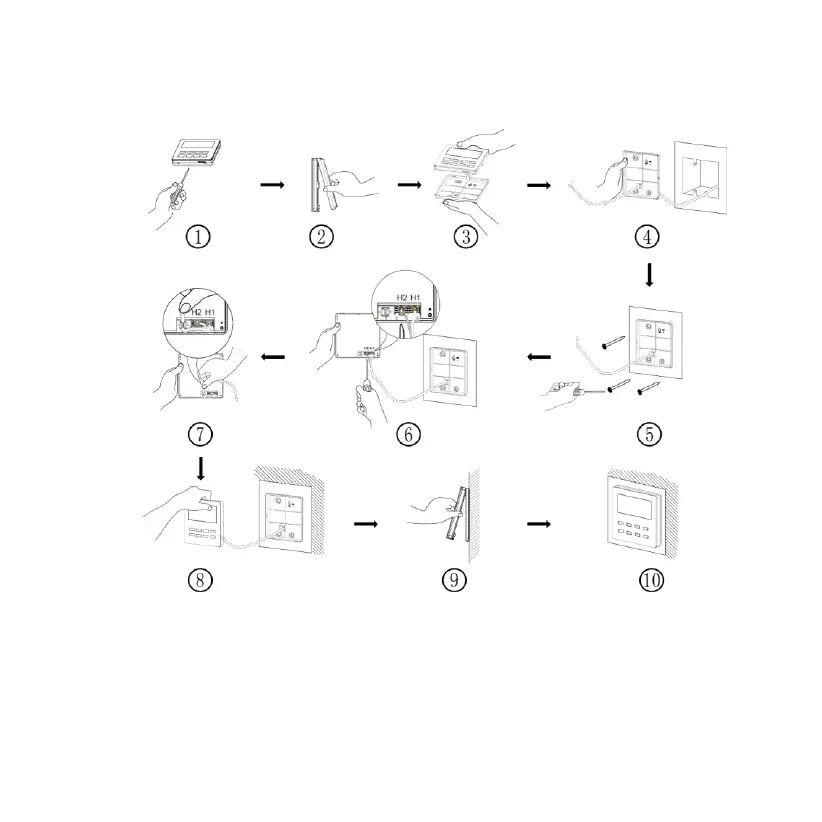

Fig. 23 Installation diagram for wired controller
Fig. 23 is the simple installation process of wired controller; please
pay attention to the following items:
(1) Before installation, please cut off the power for indoor unit;
(2) Pull out the 2-core twisted pair wire from the installation hole on
