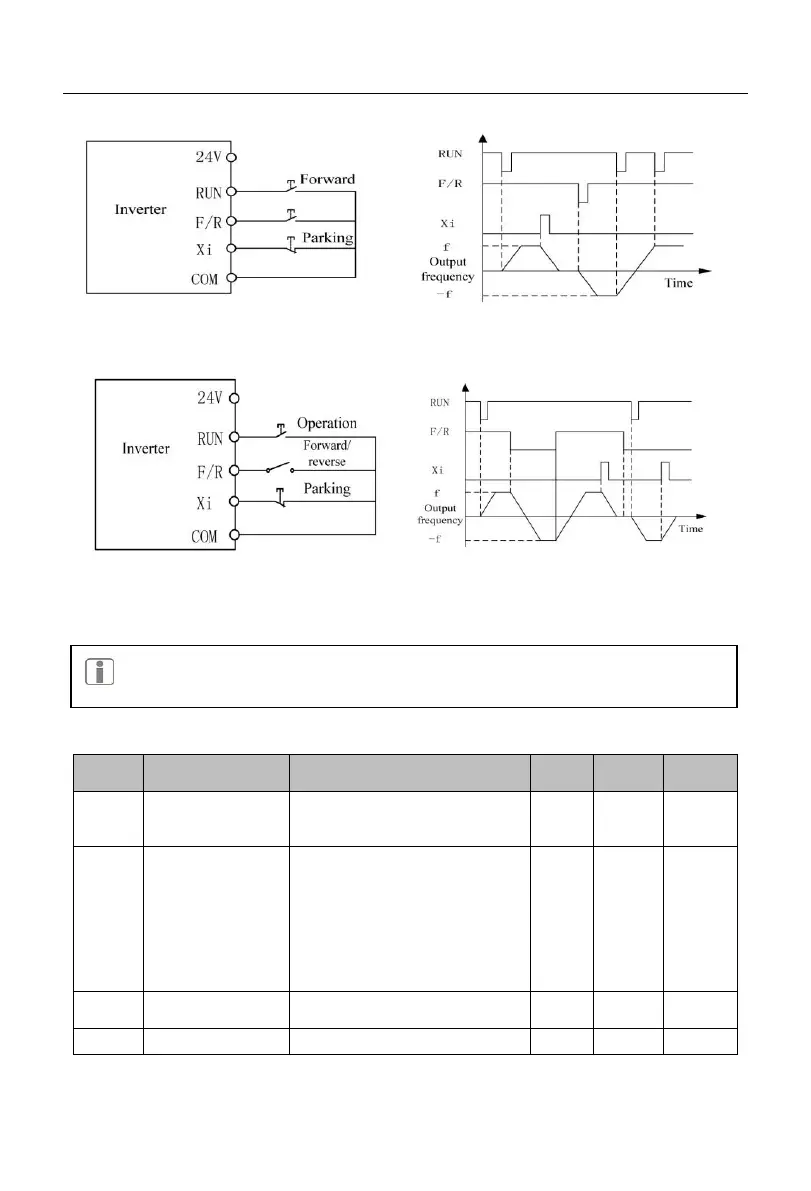

(F04.19=0), the logic diagram is as shown in Fig. 5-3(d).
(a) Wiring diagram of three-line control (F00.03=2) (b) Forward/reverse control logic
(F04.19=0, F00.03=2)
(c) Wiring diagram of two-line control (F00.03=3) (d) Forward/reverse running logic
(F04.19=0, F00.03=3)
Fig. 5-3 Three-line Control
The three-line control logic of the A90 series inverter is consistent with the
conventional electrical control. The keys and knob switches should be used
correctly as shown in the schematic diagram. Otherwise, operation errors may be caused.
5.6 Common Process Parameters of Inverter
Function
code
Function code
name
Parameter description
Unit
Default
setting
Attribute
F00.01
Drive control mode
of motor 1
0: V/F control (VVF)
1: Speed sensorless vector
control (SVC)
0
○
F00.04
Options of main
frequency source A
0: digital frequency setting
F00.07
1: AI1 2: AI2
4: VP (keyboard potentiometer)
6: Percentage setting of main
frequency communication
7: Direct setting of main
frequency communication
0
○
F00.07
Digital frequency
setting
0.00 to maximum frequency
F00.16
Hz
0.00
●
F00.14
Acceleration time 1
0.00~650.00 (F15.13=0)
s
15.00
●

Sinee A90 Series Specifications

General

Cooling	Forced air cooling
Rated Power	0.4kW to 500kW
Output Voltage	0 to input voltage
Output Frequency	0 to 400Hz
Overload Capacity	150% for 60 seconds, 180% for 10 seconds
Braking Unit	Built-in
Communication	Modbus
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Output Voltage (AC)	0 to input voltage
Output Waveform	Sine wave
Output Frequency (AC)	0 to 400Hz
Operating Temperature	-10°C to +40°C (Derating above 40°C)
Storage Temperature	-20°C to 65°C
Dimensions	Varies with model
Weight	Varies with model
