Belt Cover
Installation

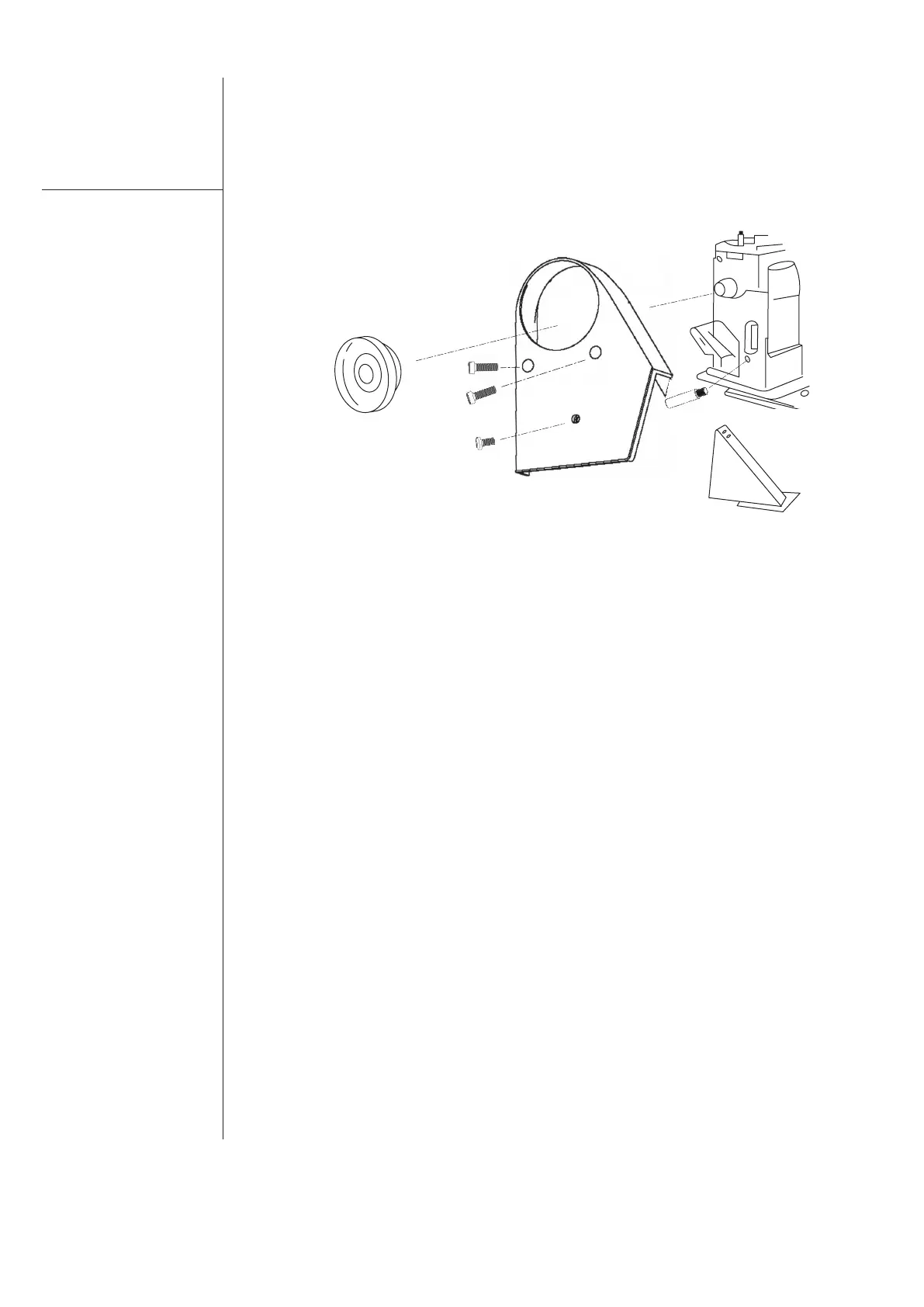

Figure 5
The machine belt cover
Install the machine belt cover so
that the hand wheel and v-belt
move freely without interference,
and then tighten the screw at this
position (see Figure 5).
The motor belt cover
Install the motor belt cover so that
motor pulley and v-belt will rotate
freely without interference.
Caution
Switch off the
machine.
Set sewing head
upright again
using both hands.
Danger of crush-
ing between
sewing head and
table top.
For your safety,
do not run the
machine without
the belt cover.
