Singer 20U-105C - Oil Reservoir Installation

6
3.2
Oil Reservoir
Installation

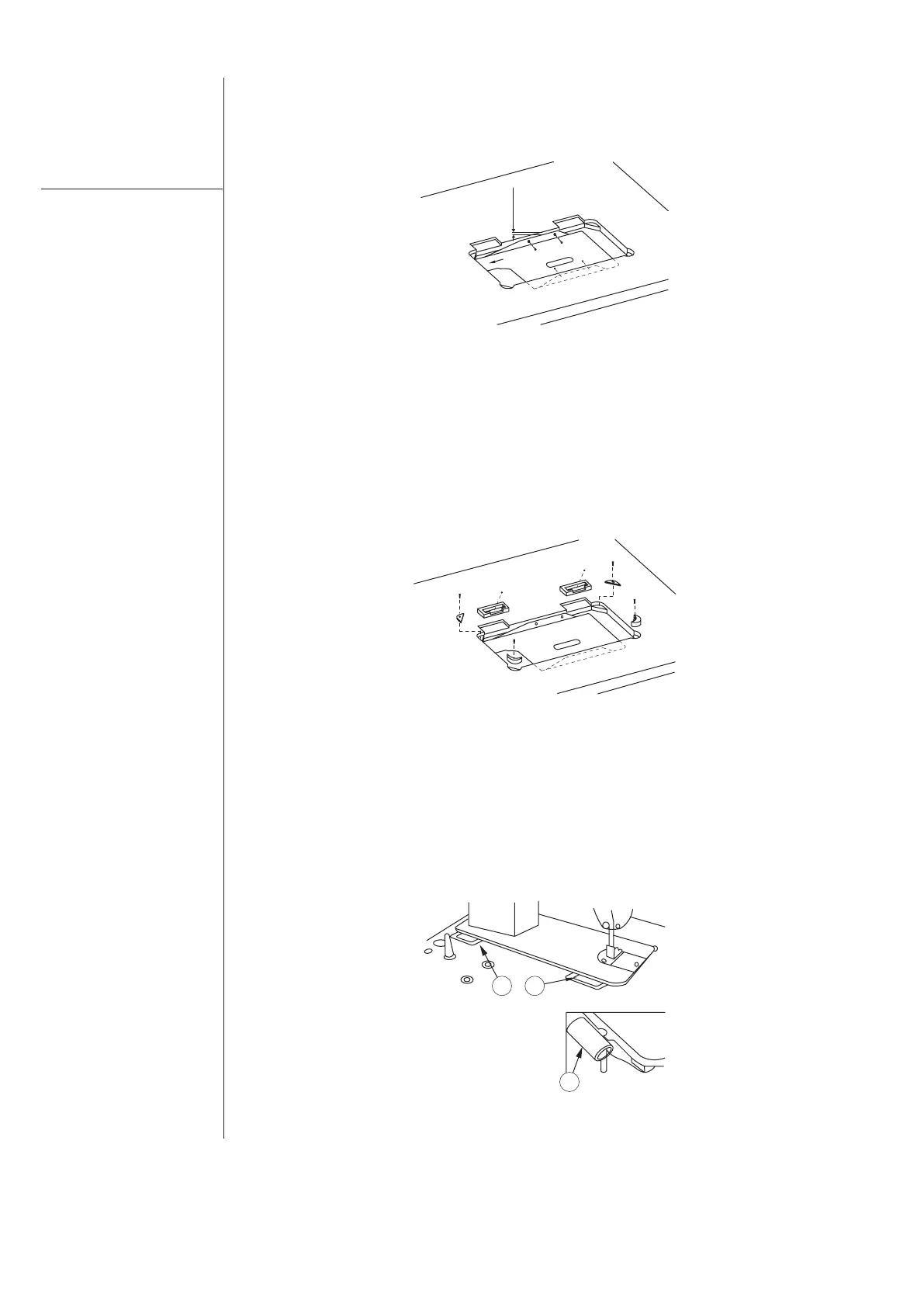

Figure 4
Figure 3
Figure 2
The oil reservoir should be fixed on the side of the machine table groove
by using four nails (Figure 2).
Two rubber seats and two rubber
corners for supporting the head
portion should be fixed on the
extended portion of the table by
25mm
using nails, and the other two
rubber cushion on the hinge side
should be fixed on grooves by
using nails too (Figure 3).
Two hinges ‘1’ fit into the hole in the
machine bed, and the machine head
fitted the table hinge’s rubber ‘2’ ,
before the machine head is placed to
the cushions on the four corners of
the table (Figures 3 and 4).
1
12
Zigzag Sewing Machine
|
Instruction Manual and Parts List
