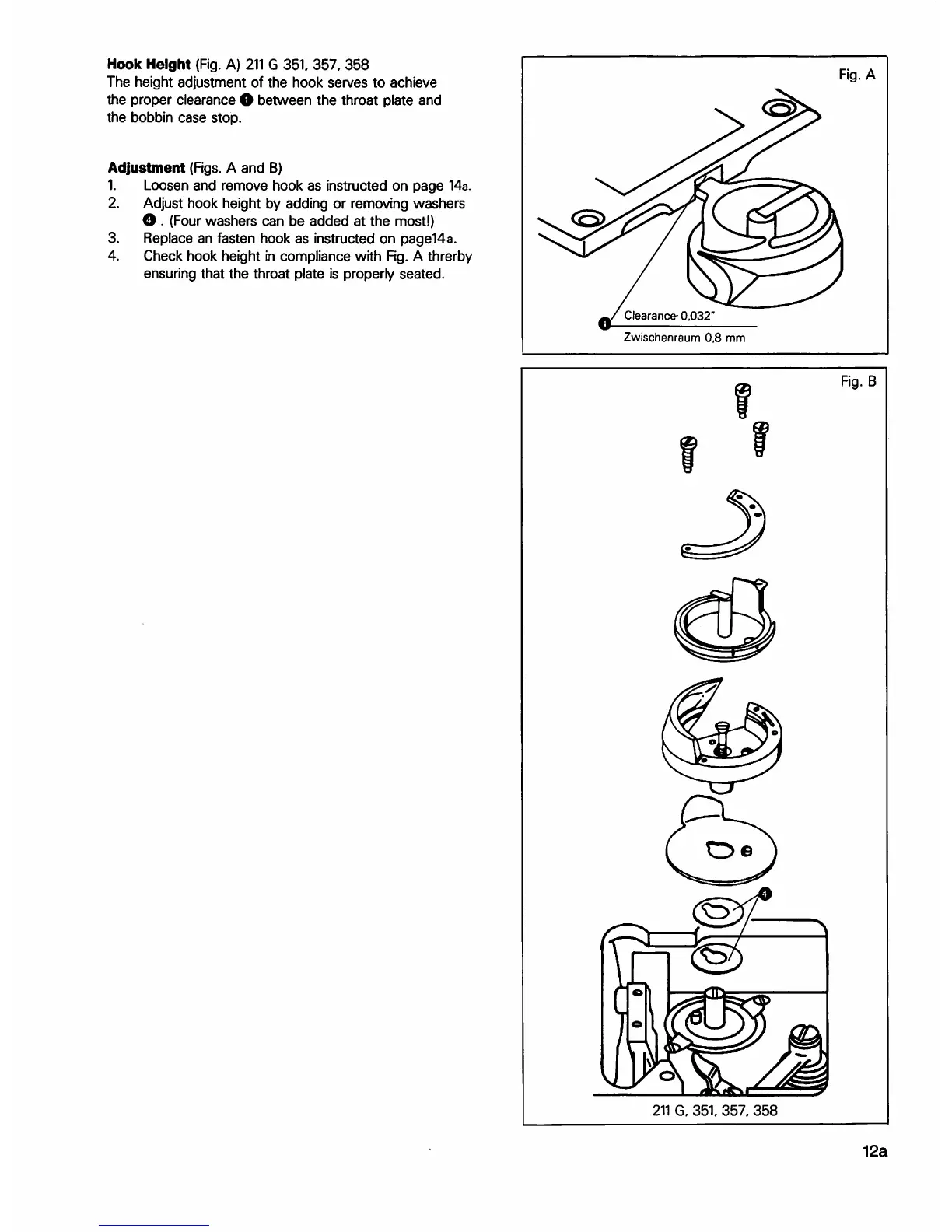

Hook Height {Fig. A) 211 G 351. 357. 358
The height adjustment of the hook serves to achieve
the proper clearance O between the throat plate and
the bobbin case stop.
Adjustment (Figs. A and B)
1. Loosen and remove hook as instructed on page 14a.
2. Adjust hook height by adding or removing washers
O . (Four washers can be added at the most!)
3. Replace an fasten hook as instructed on page14a.
4. Check hook height In compliance with Fig. A threrby
ensuring that the throat plate is properly seated.
Clearance- 0.032"
Zwischenraum 0,8 mm
211 G. 351. 357. 358
Fig. A
12a
