Singer 211G146 - Page 17

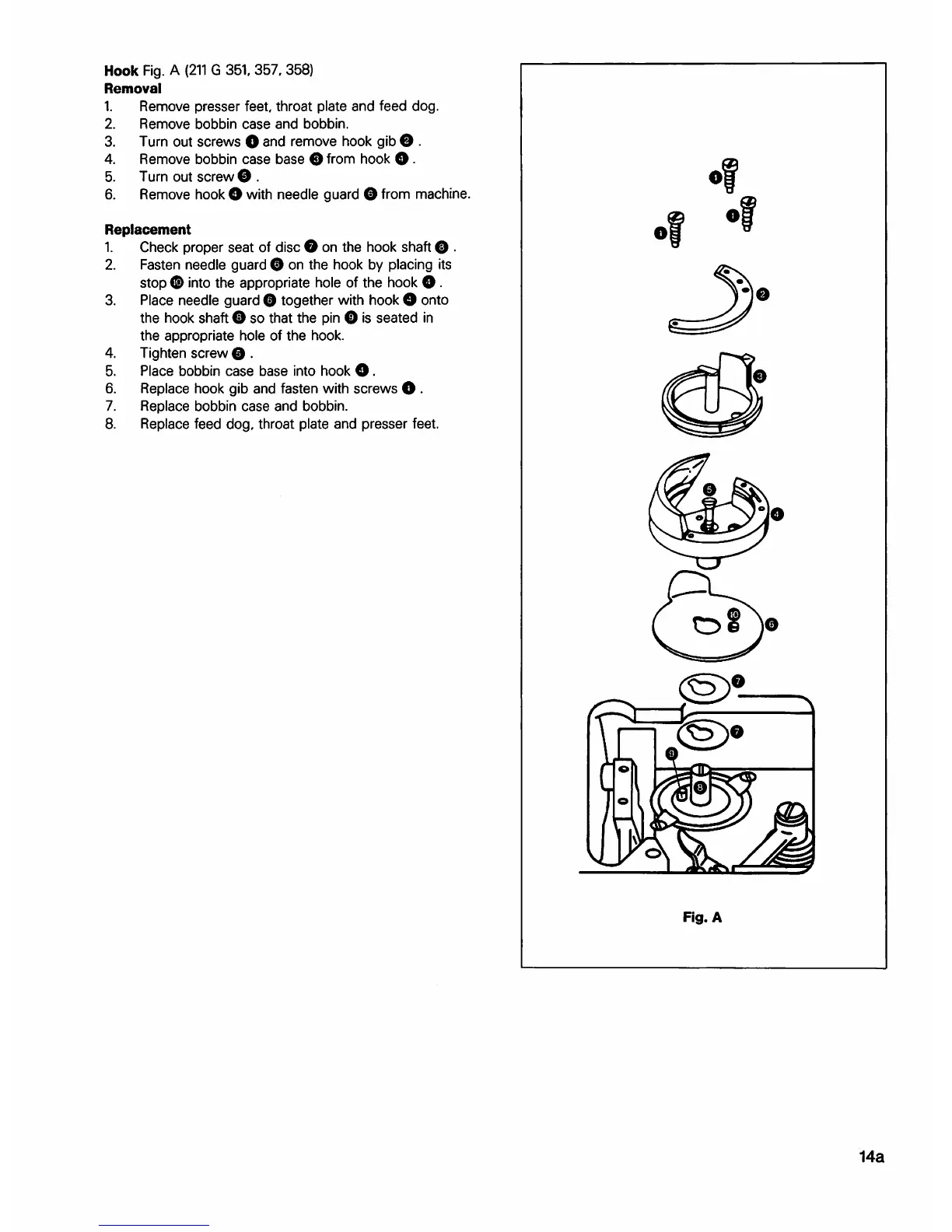

Hook Fig. A (211 G 351,357. 358)
Removal
1. Remove presser feet, throat plate and feed dog.
2. Remove bobbin case and bobbin.
3. Turn out screws O and remove hook gibO .
4. Remove bobbin case base ©from hook O .
5. Turn out screw© .
6. Remove hook O with needle guard © from machine.
Replacement
1. Check proper seat of disc © on the hook shaft © .
2. Fasten needle guard © on the hook by placing its
stop © into the appropriate hole of the hook © .
3. Place needle guard © together with hook © onto
the hook shaft © so that the pin © is seated in
the appropriate hole of the hook.
4. Tighten screw © .
5. Place bobbin case base into hook ©.
6. Replace hook gib and fasten with screws © .
7. Replace bobbin case and bobbin.
8. Replace feed dog, throat plate and presser feet.
©
