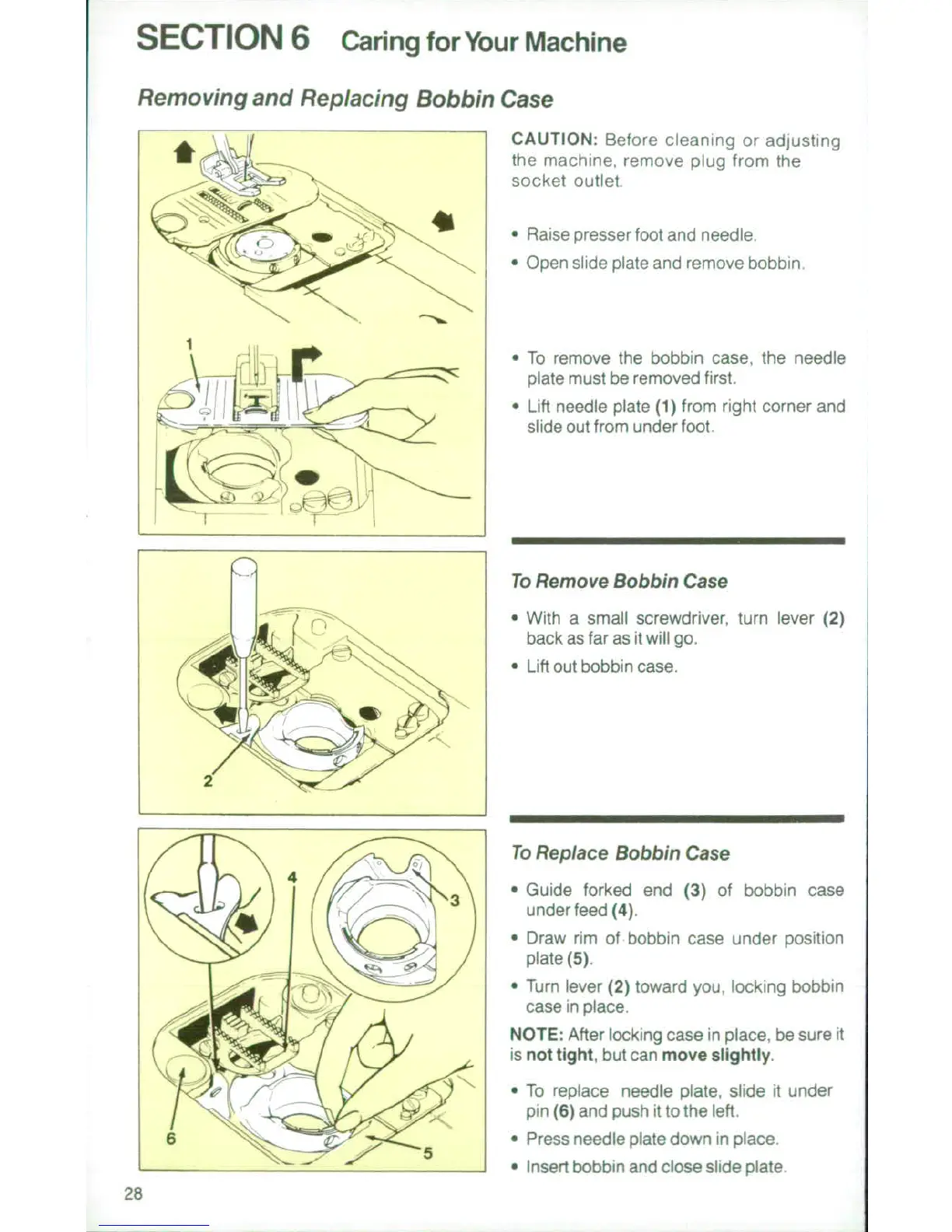

SECTION
6 Caring
forYour Machine
Removing
and
Replacing
Bobbin
Case
CAUTION: Before cleaning or adjusting
the machine,
remove
plug from
the
socket outlet
,,
f:
'V.\
a u; '>> . Raise presser foot
and needle
"'V,; . * Open slide plate and remove bobbin,
1S q - #.
To remove the bobbin
case, the needle
plate must be removed first.
* Lift needle plate (1) from right corner and
.___ I slide out from under foot.
vrlg.~~~~C
<01
To Remove Bobbin Case
. With a small screwdriver,
turn lever (2)
back
as
far
as
it
will
go.
/<t
1kb *.
.\
* Lift
out bobbin
case.
2
To Replace
Bobbin
Case
L/ A t / / * Guide forked end (3) of bobbin case
3 r / / under feed
(4).
EDraw rim of bobbin case under position
plate
(s).
,lz
..
n >
* Turn lever (2) toward you,
locking bobbin
'V
I 9' ''&
case
in place.
NOTE:
After locking case
in place, be
sure it
is not tight, but can move slightly.
>tj' l2%~ ,t '\ W / 'V * To replace needle plate, slide it under
|V \,. <, >pin (6) and push it to
the left.
6 s * Press needle plate down in place.
* Insert bobbin and close slide plate.
28
