Singer 7464 - Switch Board - 3 Component Identification

- 35 -
Switch Board – 3 (for 7426 and 7424)

Component number for 7426 is 87563 and for 7424 is 87562.
87562 is the one where jumper wire is cut on 87563.
Component number printed on board is 87563 on both boards.
63

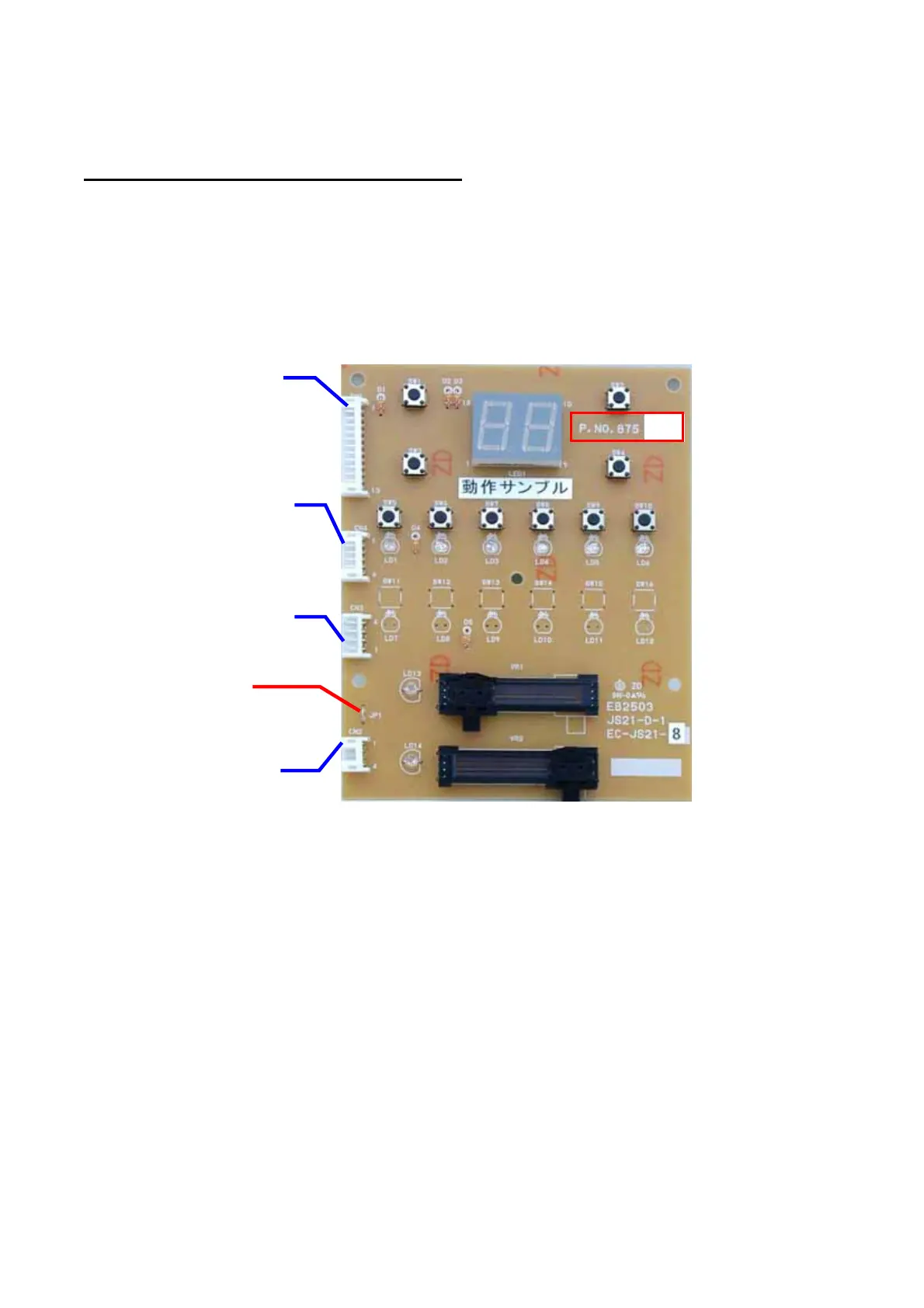

13P Connector
Connect with CPU
4P Connector
Connect with CPU
4P Connector
Connect with CPU
Twin needle select
SW & needle stop
select SW
Jumper wire
