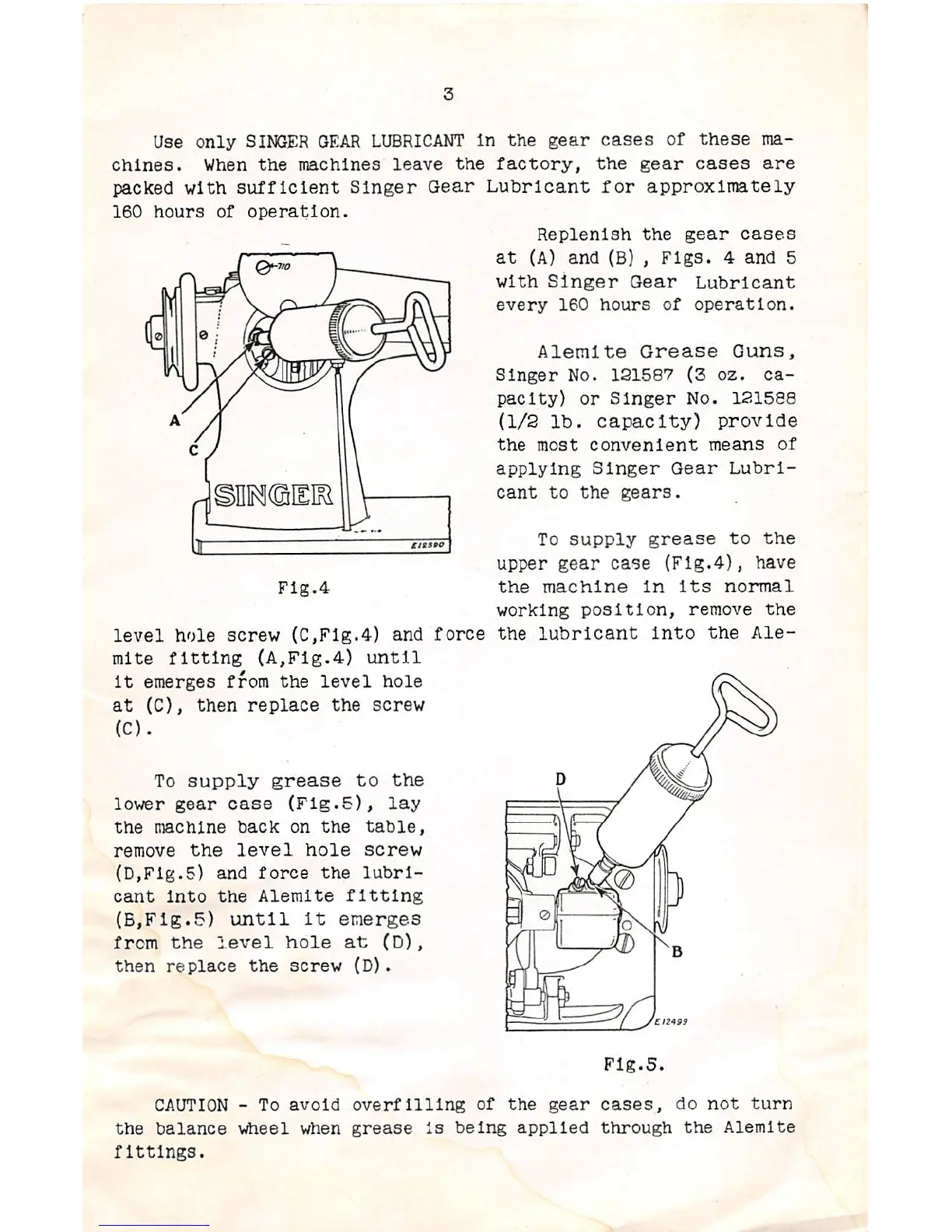

Use only SIN3ER GEAR LUBRICANT In the gear cases of these ma
chines. When the machines leave the factory, the gear cases are
packed with sufficient Singer Gear Lubricant for approxinately
160 hours of operation.
Replenish the gear cases
at (A) and (B) , Figs. 4 and 5
with Singer Gear Lubricant
every 160 hours of operation.
Alemlte Grease Guns,
Singer No. 1S1587 (3 oz. ca
pacity) or Singer No. 121588
(1/2 lb. capacity) provide
the most convenient means of
applying Singer Gear Lubri
cant to the gears.
To supply grease to the
upper gear case (Fig.4), have
Fig.4 the machine In Its normal
working position, remove the
level hole screw (C,Flg.4) and force the lubricant Into the Ale
mlte fitting (A,Fig.4) until
It emerges from the level hole
at (C), then replace the screw
(C).
To supply grease to the
lower gear case (Fig.5), lay
the machine back on the table,
remove the level hole screw
(D,Flg.5) and force the lubri
cant Into the Alemlte fitting
(B,Flg.5) until It emerges
from the level hole at (D),
then replace the screw (D).
Flg.S.
CAUTION - To avoid overfilling of the gear cases, do not turn
the balance vAieel when grease Is being applied through the Alemlte
fittings.
