Singer 95-80 - Additional Oiling Locations; Oiling Points in Base of Machine; Oiling Point in Hook Race

D, /B

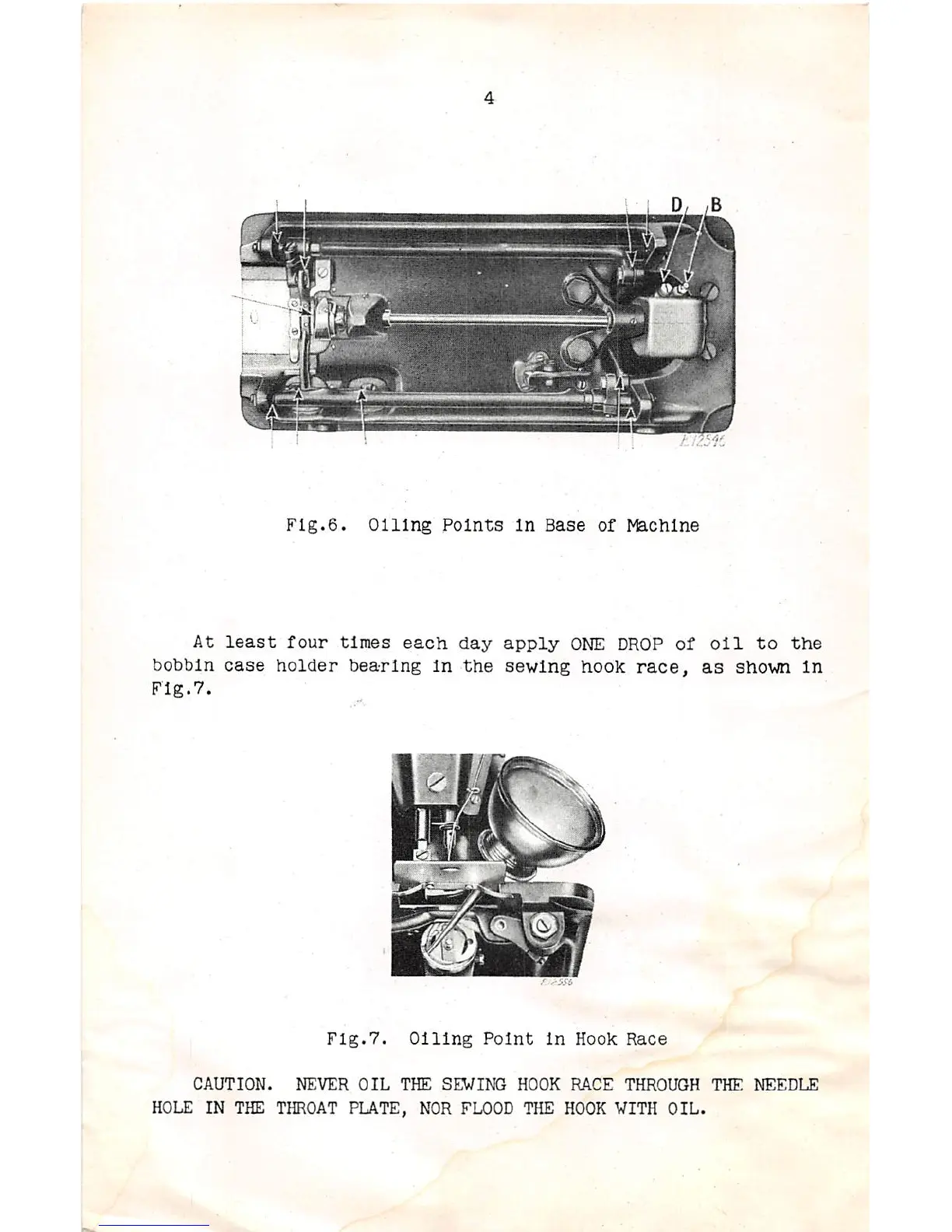

Fig.6. Oiling Points In Base of l^chlne
At least four times each day apply ONE DROP of oil to the
bobbin case holder bearing In the sewing hook race, as shown In
Fig.7.
Fig.7.
Oiling Point In Hook Race
CAUTION. NEVER OIL THE SEWING HOOK RACE THROUGH THE NEEDLE
HOLE IN THE THROAT PUTE, NOR FLOOD THE HOOK WITH OIL.
