46
Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.
68. Circlip WD01-00713 91. Bearing 6006 WD01-00900
69. Spindle shaft WD01-00888 92. Washer WD01-00901
70. Bearing 6005 WD01-00889 93. Arbor MT2 66633
71. Bearing ring WD01-00890 94. Chuck WD01-00789
72. Screw (M8 x 25) WD01-00891 95. Table WD01-00902
73. Casting WD01-00892 96. Table arm WD01-00903
74. Label WD01-00893 97. Bolt (M16 x 30) WD01-00854
75. Lock washer WD01-00725 98. Spring washer M16 WD01-00853
76. Clip WD01-00724 99. Lock handle WD01-00904
77. Screw (M5 x 6) WD01-00894 100. Worm pin WD01-00850
78. Tension spring WD01-00842 101. Table support WD01-00849
79. Tension spring cover WD01-00841 102. Bolt (M6 x 12) WD01-00905
80. Nut M12 WD01-00821 103. Crank handle WD01-00906
81. Switch box WD01-00910 104. Circlip WD01-00742
82. Switch WD01-00895 105. Worm shaft WD01-00911
83. Screw (M3 x 10) WD01-00896 106. Worm gear WD01-00848
84. Mains lead clamp WD01-00700 107. Locking handle WD01-00852
85. Mains lead WD01-00720 108. Angle label WD01-00851
86. Indicator WD01-00897 110. Chuck guard 55mm 07662
87. Circlip WD01-00787 111. Drift key WD01-00862
88. Bearing 6203 WD01-00714 112. Hex. wrench 4mm WD01-00737
89. Quill WD01-00898 113. Hex. wrench 6mm WD01-00861
90. Spindle WD01-00899
15

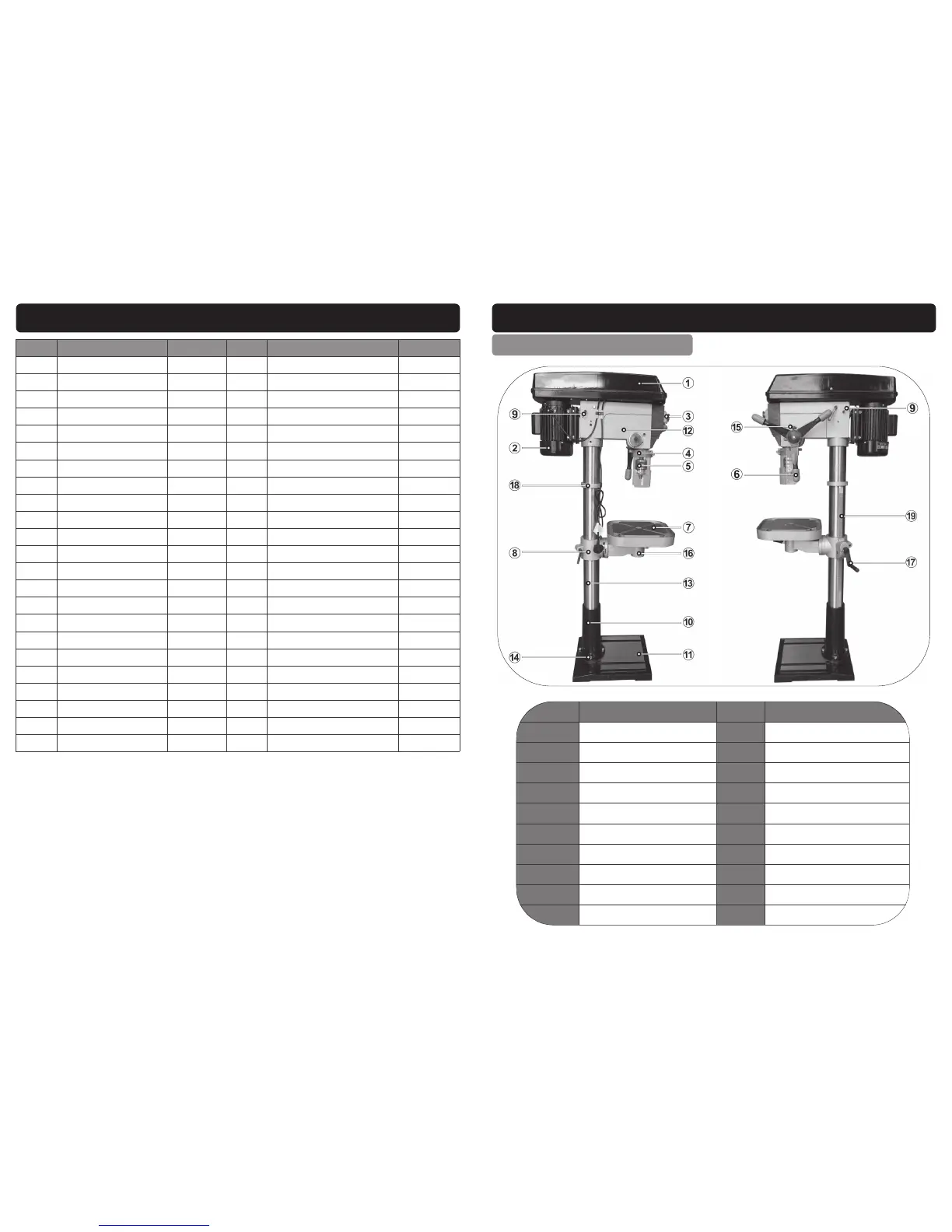

GETTING TO KNOW YOUR DRILL….cont
01701 - 01708
Ref. No. Description Ref. No. Description
1. Pulley Cover 11. Base
2. Motor 12. Main Drill Head
3. NVR On/Off Switch 13. Column
4. Chuck Guard 14. Column Support Bolts
5. Chuck 15. Depth Stop
6. Feed Handle 16. Table Lock
7. Table 17. Table Height Adjust
8. Table Support Collar 18. Rack Collar
9. Belt Tension Lock 19. Rack
10. Column Support
