20

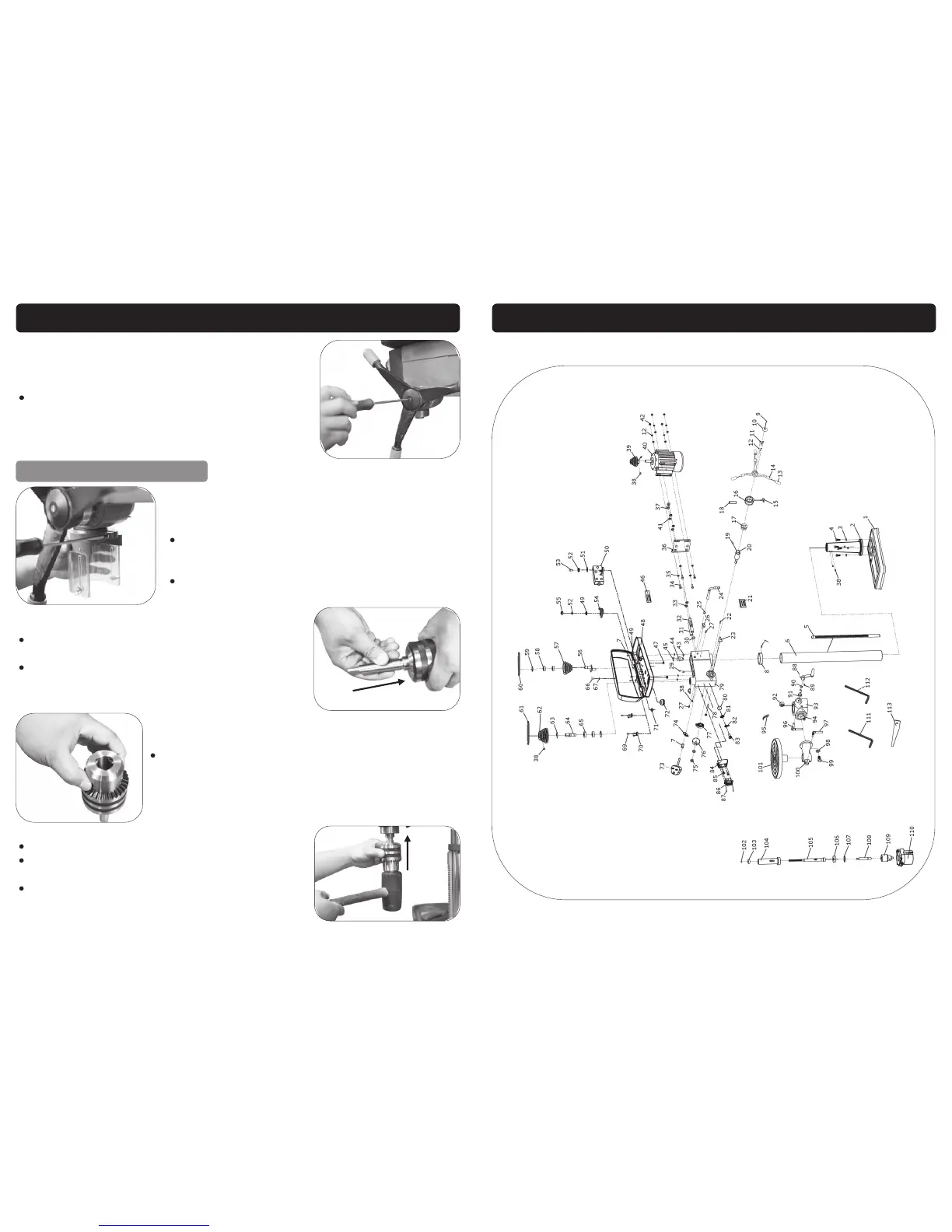

FIT THE ARBOR & CHUCK
Slide the arbor and chuck into the spindle.
Rotate the arbor with small upward pressure until it
‘seats’ correctly.
Tap the arbor with a piece of scrap wood or a mallet
to ensure it stays in place (019).
ASSEMBLY INSTRUCTIONS….cont
Prior to fitting the chuck / arbor; Fit the chuck guard:
Slide the chuck guard over the spindle collar ensuring
that the ‘open’ part of the guard faces towards the
back.
Tighten the screw to secure in place.
Ensure that the outside of the arbor and the inside of
the chuck are clean and free of dust/debris.
Slide the arbor into the chuck with reasonable force,
as shown (017).
Ensure that the chuck jaws are wound all the way in
(inside the chuck) to prevent them from getting dam-
aged (018).
015
016
017
018
019
Fit the cover and secure with the screw (015).
