Operation instructions
SIPOS 5 PROFITRON, HiMod
Page 6 Y070.020/GB
2 General
2
General
2 General
2.1 Functional principle
Description
The electronics with integral frequency converter (1) controls the motor (2). The motor turns the
output drive shaft (4) via the worm shaft (3). The output drive shaft (4) drives a gear or a valve stem
(5) via a stem nut.
The motion of the worm shaft (3) is transferred via the signaling shaft (6) to.
■
the signaling gear (7a). The signaling gear reduces the movement and turns the potentiometer or
the magnetic travel sensor (8).
or:
■
the non-intrusive position encoder (niP) (7b) for „non intrusive“ version. The non-intrusive position
encoder counts the number of rotations. The position recording is also performed without external
power supply.
From the position of the potentiometer or the non-intrusive position encoder, the electronics recog-
nizes the position of the output shaft (9) and therefore the position of the operated valve. The motor
is controlled according to the process requirements.
The torque detection (DE) is performed electronically.

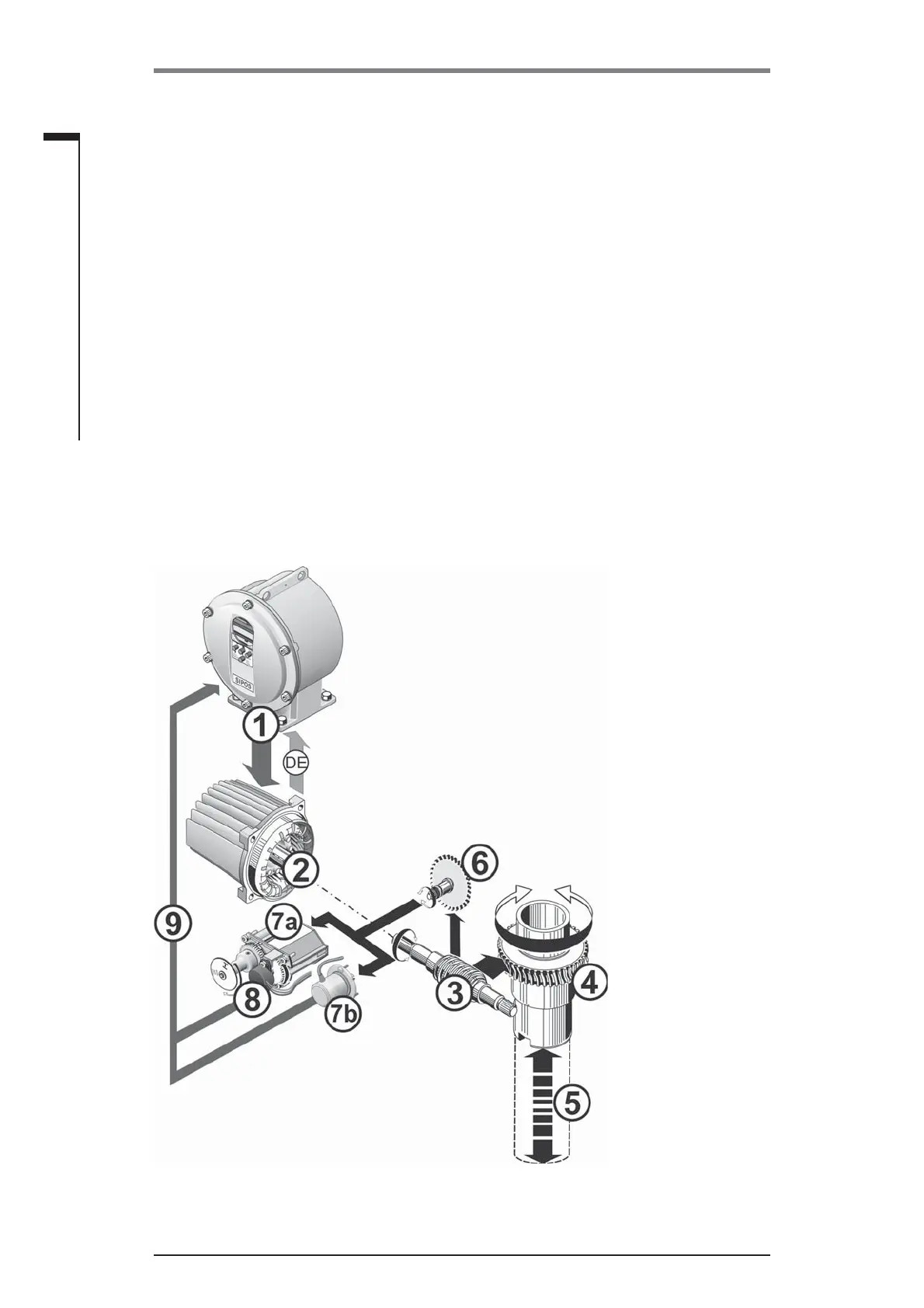

Fig.: Functional principle
