Operation instructions
SIPOS 5 PROFITRON, HiMod
2
General
2 General

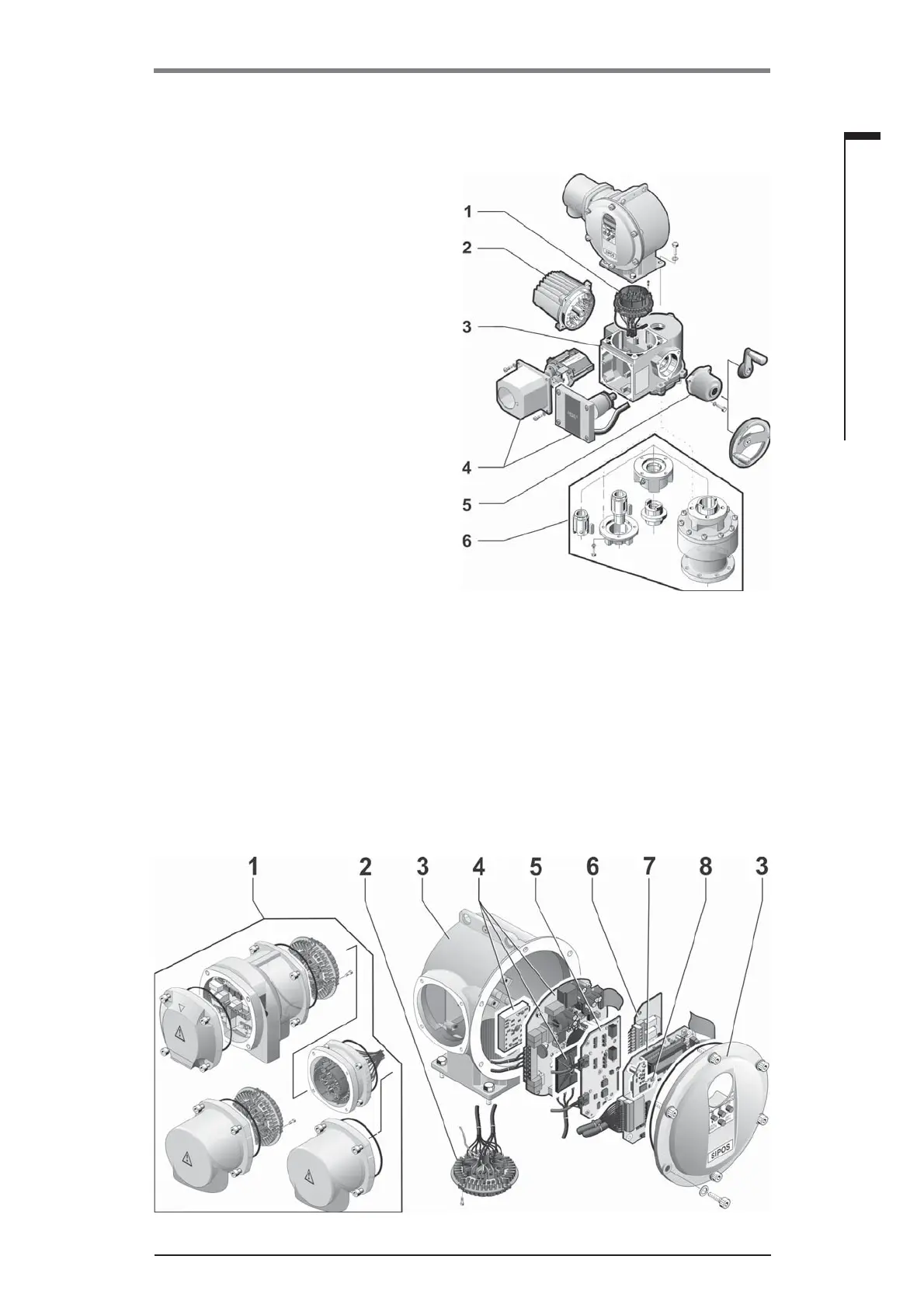

2.2 Sub-assemblies
The actuators of the SIPOS 5-Series comprise
two main assemblies: gear unit and electronics
unit.
For details see chapter 9. „Spare parts“.
The main sub-assembly gear consists
of the sub-assemblies:
1 Plug element electronic connection,
2 Motor,
3 Gear unit,
4 Signaling gear or non-intrusive position enco-
der (not for 2SG5) with cover,
5 Manual drive (with crank or hand wheel),
6 Possible mechanical extensions, depending
on the version,
For the small 2SG5 part-turn actuator, the
signaling gear is omitted; gear unit and manual
drive have a different shape.
The main sub-assembly electronics unit
consists of the sub-assemblies:
1 Electrical connection (there are three versi-
ons),
2 Plug element gear connection,
3 Electronic housing with cover,
4 Power control PCB, including Power module,
Fig.: Sub-assemblies gear
Fig.: Sub-assemblies electronics unit
5 Fieldbus board (option) or
6 Relay board (option),
7 Control board ,
8 Bluetooth module (option).
