Sipromac 350 - Page 24

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4144
S.L.
1
M
300/350

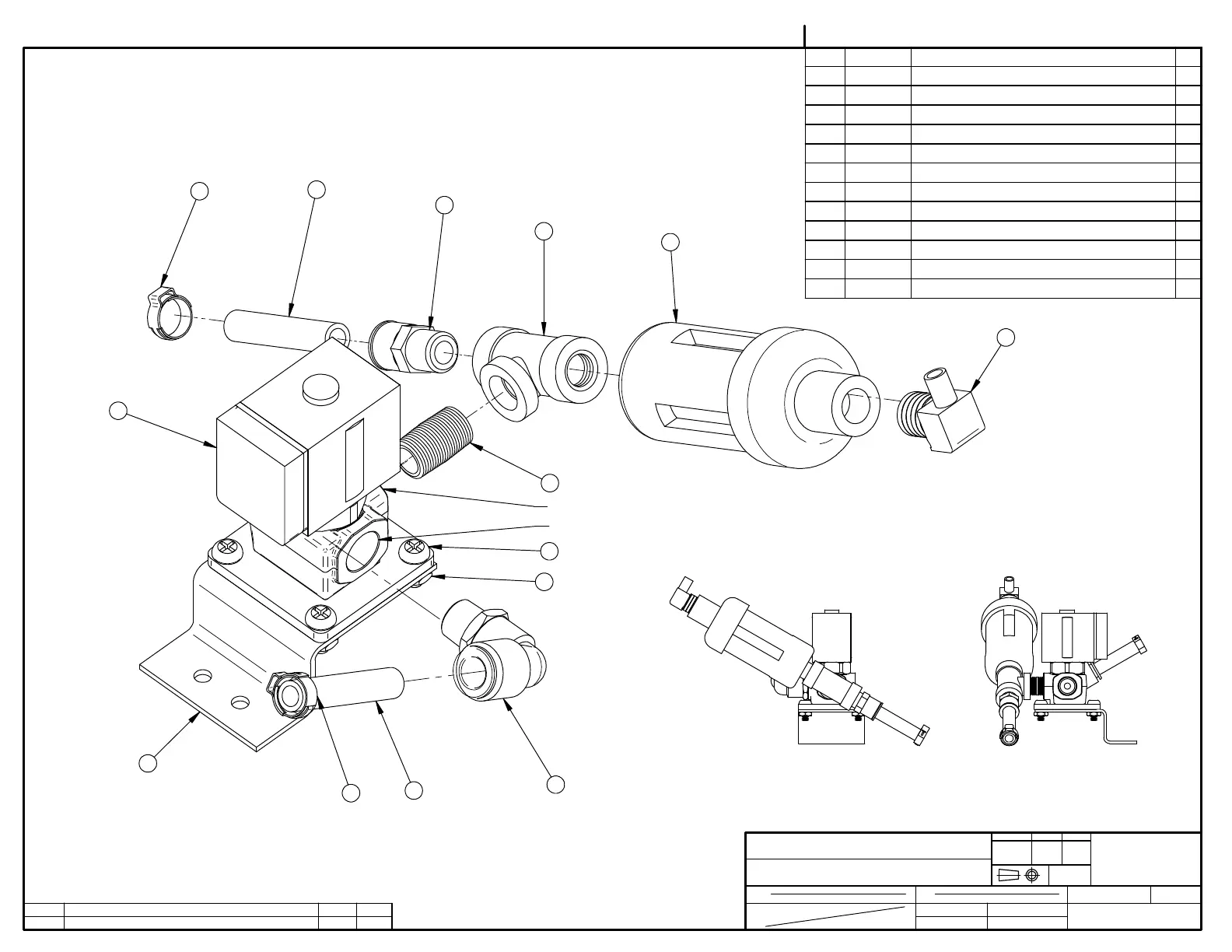

VALVE ASSEMBLY VACCUM SENSOR
13-11-14
004A4144
LET. MODIFICATION DATE INT.
A
106-00701 WAS 106-0070
14-03-26 SBU
ITEM PART # DESCRIPTION QT.
2 100-0463 TEE 1/4" NPT S/S 1
3 114-2020 FILTER / DRYER ¼"mnpt. X 1/4"t.p. COMP. 1
4 101-0170 ELBOW 90° 1/4MNPTx1/4"HOSE 1
5 102-0410 MALE CONN.1/4"MNPTx3/8"T.QUICK 1
6 102-0330 ELBOW 1/4" NPT X 3/8" HOSE QUICK 1
7 104-0060 TUBE 3/8"OD x 1/4"ID POLYETHYL. 2
8 105-0218 EAR CLAMP 3/8" S/S 2
9 106-00701 VALVE 3WAY 24V 1/4''NPT 1
10 001A0564 VALVE SUPPORT 1
11 100-0225 CLOSE NIPPLE 1/4" NPT SS 1
12 051-0144 SCREW #10-24 N.C 1/2"PAN PHIL. S/S 4
13 051-0571 NUT #10-24 S/S 4
8
7
5
2
3
4
11
6
7
8
10
9
12
13
PORT #3
PORT #2
