Sipromac 350 - Page 25

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B4134
S.L.
1
M
300D/350D

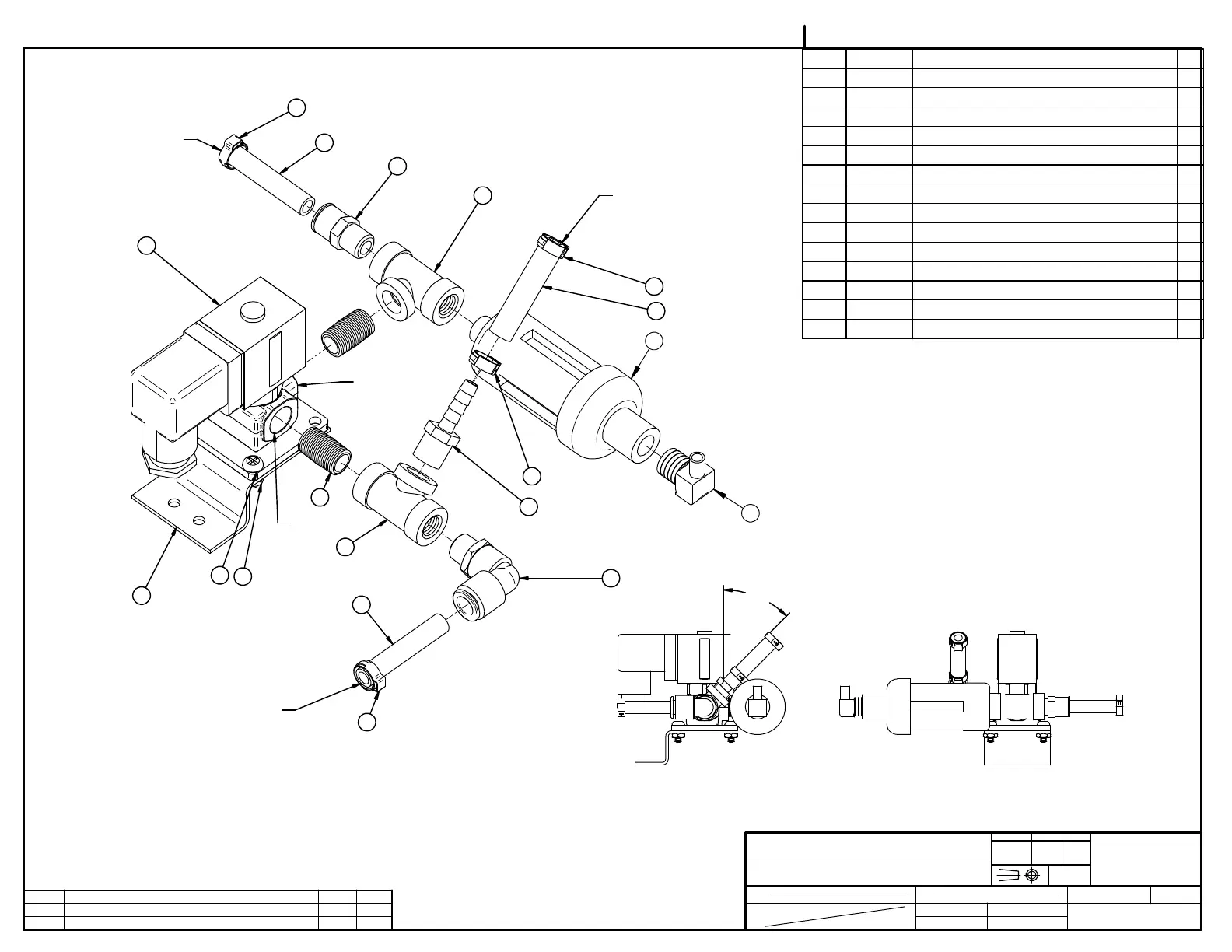

VALVE ASSEMBLY VACCUM SENSOR
13-11-14
004B4134
LET. MODIFICATION DATE INT.
A
CHAGEMENT VALVE 106-00701
14-03-26 S.T
B
CHANGEMENT CONFIG
14-06-02 SBU
7
14
ITEM PART # DESCRIPTION QT.
1 001A0564 VALVE SUPPORT 1
2 051-0144 SCREW #10-24 N.C 1/2"PAN PHIL. S/S 2
3 051-0571 NUT #10-24 S/S 2
4 100-0225 CLOSE NIPPLE 1/4" NPT SS 2
5 100-0463 TEE 1/4" NPT S/S 2
6 100-1190 STRAIGHT 1/4" MNPT x 1/4" HOSE BARB SS 1
7 101-0170 ELBOW 90° 1/4MNPTx1/4"HOSE 1
8 102-0330 ELBOW 1/4" NPT X 3/8" HOSE QUICK 1
9 102-0410 MALE CONN.1/4"MNPTx3/8"T.QUICK 1
10 104-0060 TUBE 3/8"OD x 1/4"ID POLYETHYL. 2
11 104-0102 HOSE 1/4'' ID PVC BRAIDED 1
12 105-0218 EAR CLAMP 3/8" S/S 4
13 106-00701 VALVE 3WAY 24V 1/4''NPT 1
14 114-2020 FILTER / DRYER ¼"mnpt. X 1/4"t.p. COMP. 1
5
9
10
12
13
1
3
2
4
5
8
10
12
6
12
11
12
TO VACUUM
CHAMBER
TO REAR BELLOW
TO FRONT BELLOW
45°
PORT #2
PORT #3
