4.2 - ELECTRICAL CONNECTIONS
4.2.1 - PPJ/LCJ SC with single-phase motor
The machine is outfitted with a feeding cable with a cross section area of 3x1.5 mm
2
, length 1.5m.
Connect the machine to 230V./50Hz by means of a blue CEI plug, interposing a magnetothermic-
differential switch of 10A, ∆ I = 0.03A. At this point make sure that the grounding system works
perfectly.
Furthermore check that the data shown on the serial number-technical plate (FIG. n°5) correspond to the
data on the delivery notes.
4.2.2 - PPJ/LCJ SC with three-phase motor
The machine is outfitted with a feeding cable with a cross section area of 5 x 1.5 mm²; length 5.1 ≅m.
Connect the machine to the 400V./50Hz three-phase electrical network by means of a CEI plug,
interposing a magnetothermic-differential switch of 10 A, ∆I = 0.03 A.
At this point make sure that the grounding system works perfectly.
Before finally connecting the machine to the three-phase feeder line, check the direction of rotation of
the cap by pressing the START pushbutton (see FIG. n.°9) then immediately stop it by pressing the STOP
pushbutton.
The direction of rotation of the cap seen from the discharge outlet must be
counterclockwise; if the direction of rotation is not exact, invert two of the three
feeding wires in the plug or outlet (see FIG. n°7).
The three-phase motor can run with a tension of either 230 V.or 400V. If not otherwise specified the
connections are carried out for 400V.; to adapt to a three-phase 230V. network ask for assistance from the
“ASSISTANCE CENTER”.

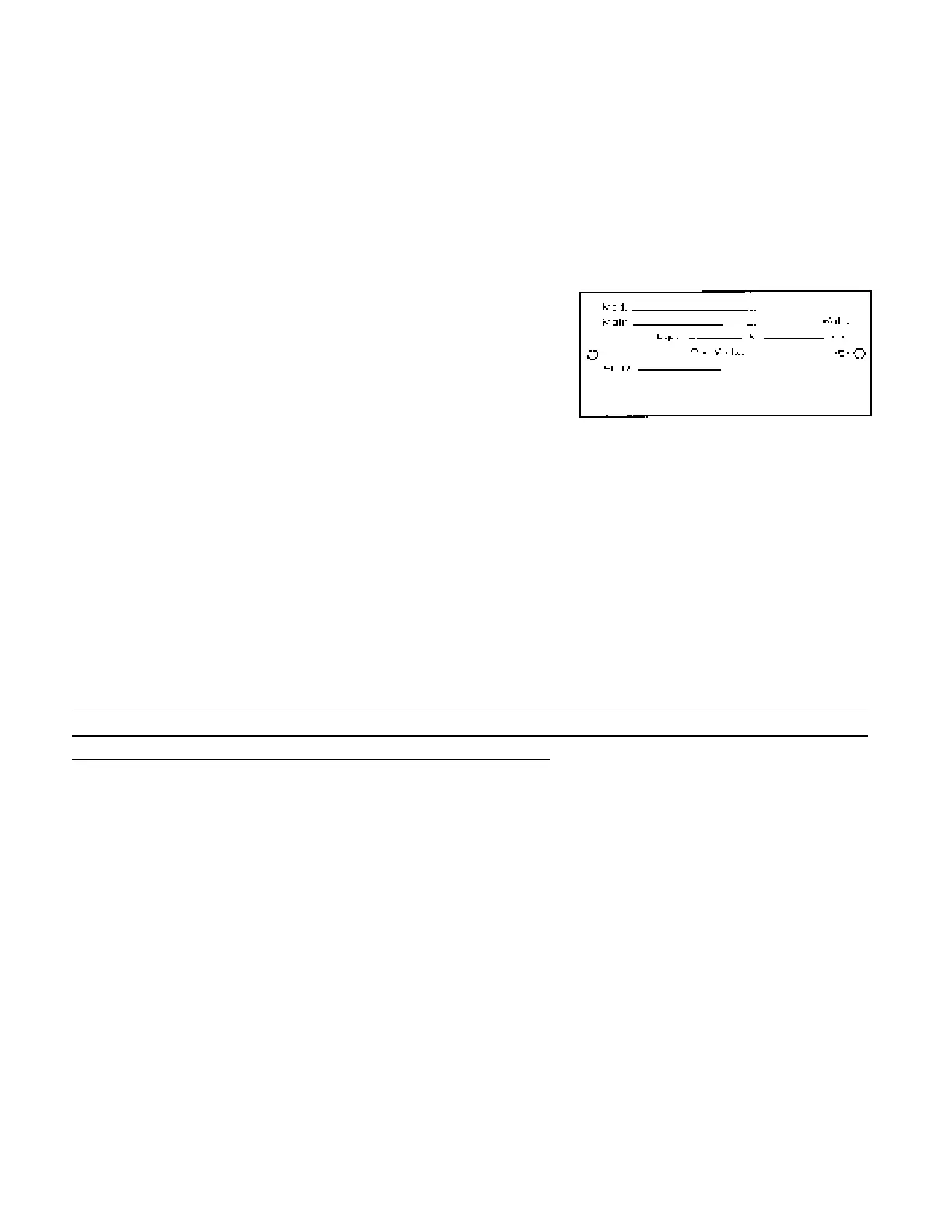

FIG. n°5 - Serial number-technical plate
