16
Push the appliance back into the fireplace, centralise and pull the loose cables through the holes into the
firebox
Whilst the opening is ready for installation of the fire, the gas supply can be routed as required and
connected to the isolation tap via the 8mm compression fitting.
Note: In no circumstance should you use soft soldered connections to or underneath the
burner tray.
The isolator tap or restrictor elbow must be fitted to the incoming supply to facilitate servicing.

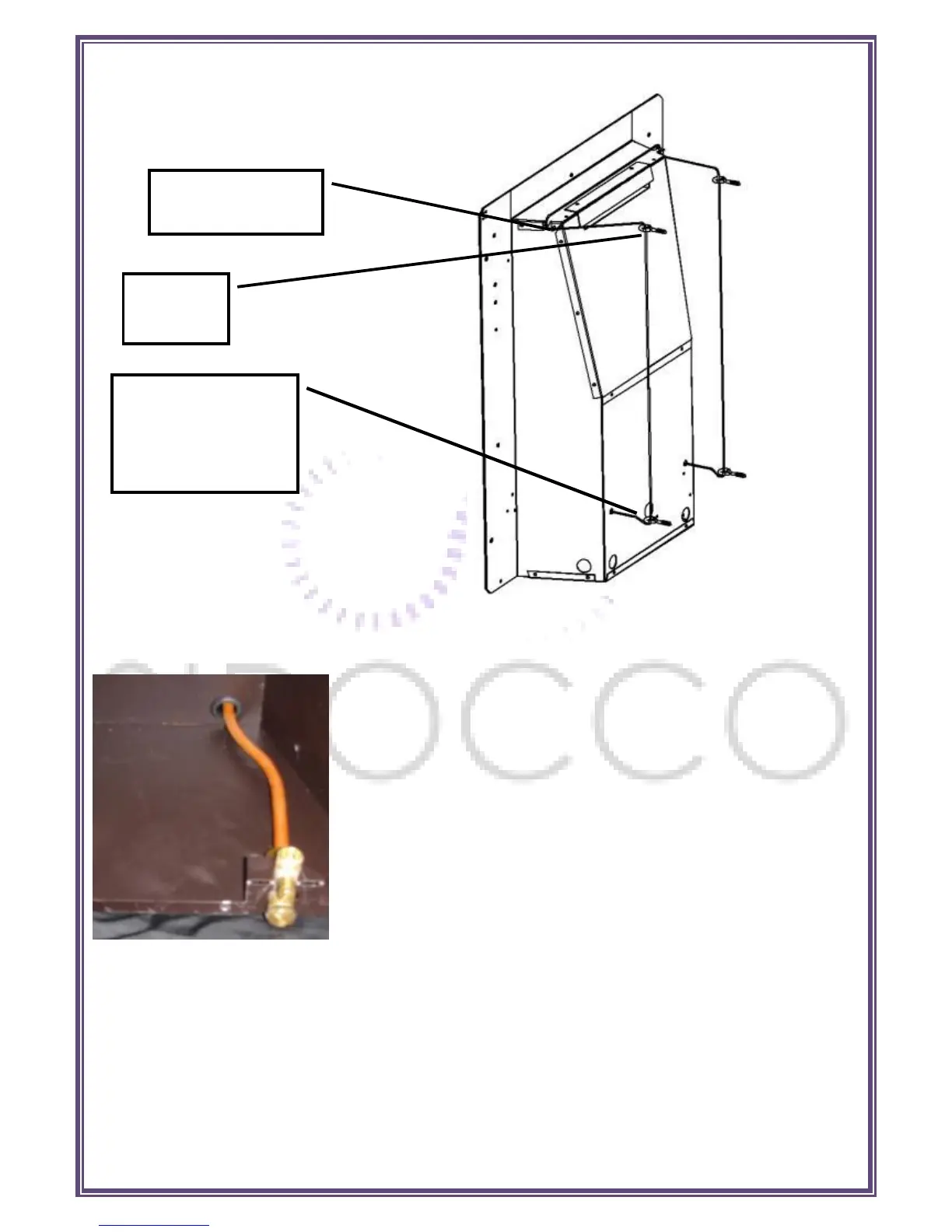

Through holes at the
top of the fire box
Through Screw eye at
the bottom and
through the 2 holes
near base of the firebox
You can now decide where to route your gas pipe, knock
out holes are provided in the rear and side of the fire box
for use where concealed pipe work is required.
Knock out the holes with a screwdriver and a sharp tap
from a hammer and fit the rubber grommet supplied.
Note: DO NOT install or use the appliance without this
seal in place.
Failure to fit this seal correctly will cause the flue
suction to act upon the area under the burner tray
resulting in poor performance, and overheating of this
area.
