Sit 710 MINISIT - Actuation; Gas Flow Set to EN 88

Ignition
Press button and keep it depressed. (Fig. 1)
Light the pilot burner and wait a few seconds. If the valve is fitted
with a piezo-electric igniter, press button to light
the burner. (Fig. 2)
Release button and check that the pilot flame
stays on, otherwise repeat the ignition procedure.
Normal operation
Set knob to the temperature required.
The maximum temperature setting is obtained by turning the
knob fully anti-clockwise. (Fig. 3)
Pilot position (Only in those versions with on the knob)
Turn knob fully clockwise (position )
Shut-down
Press button right down. (Fig.4)
CAUTION: The re-start interlock device prevents the appliance
from re-igniting until the flame supervision device has interrupted
the gas flow. After this stage (i.e. when the magnet unit has
closed) it is possible to re-ignite the appliance.
GAS FLOW SET TO EN 88
6 8 10 12 14 16 18
0
Q = [m
3
/h d=0.6]
Pu [mbar]
2
4
6
8
2L
2H
Inlet pressure range (mbar)
Type of gas
Nominal Max. Min.
2H 20 25 17
2L 25 30 20
Outlet pressure tolerance +10% -15%

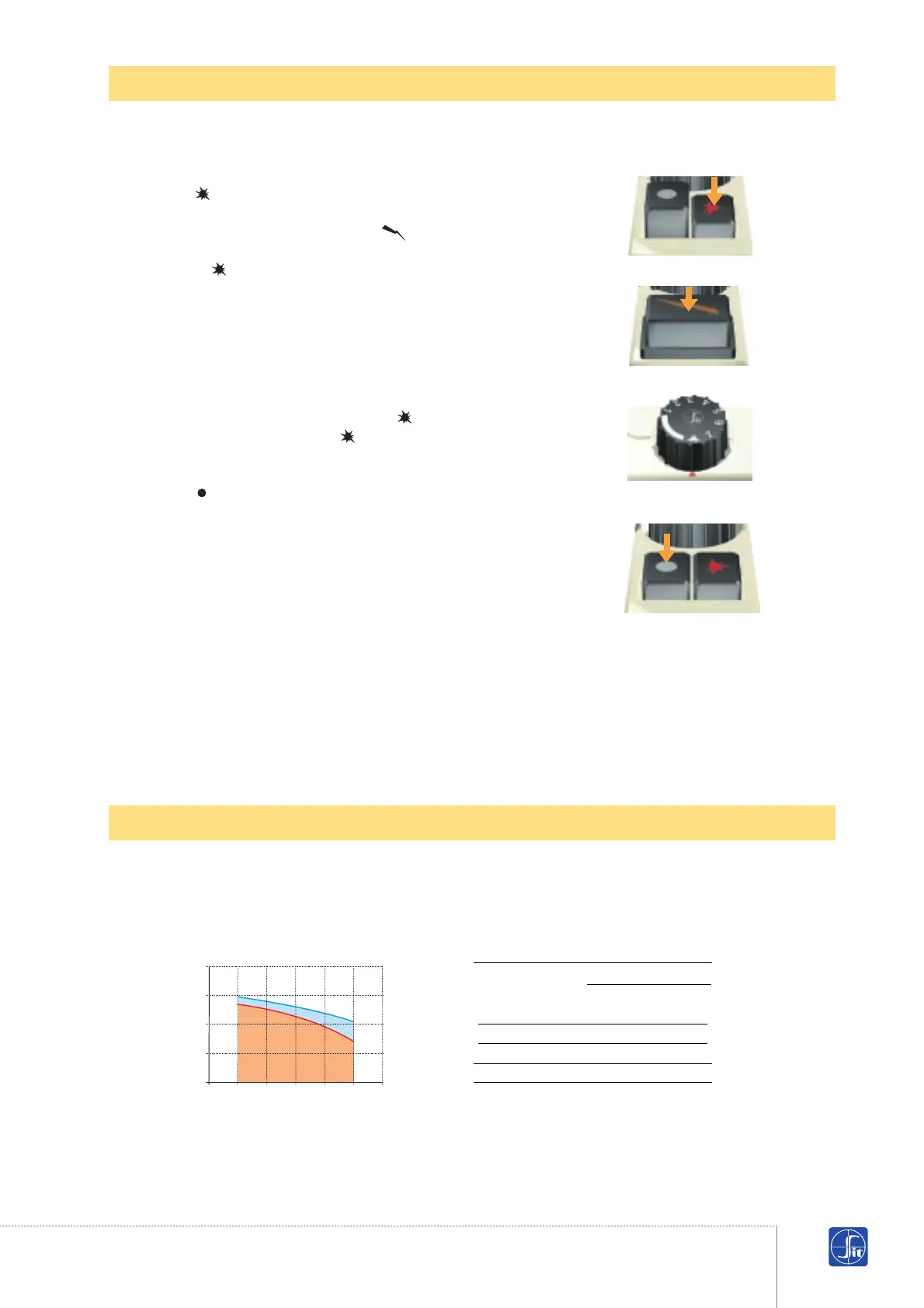

ACTUATION
fig. 1
fig. 2
fig. 3
fig. 4
