REV. 02 21 / 30

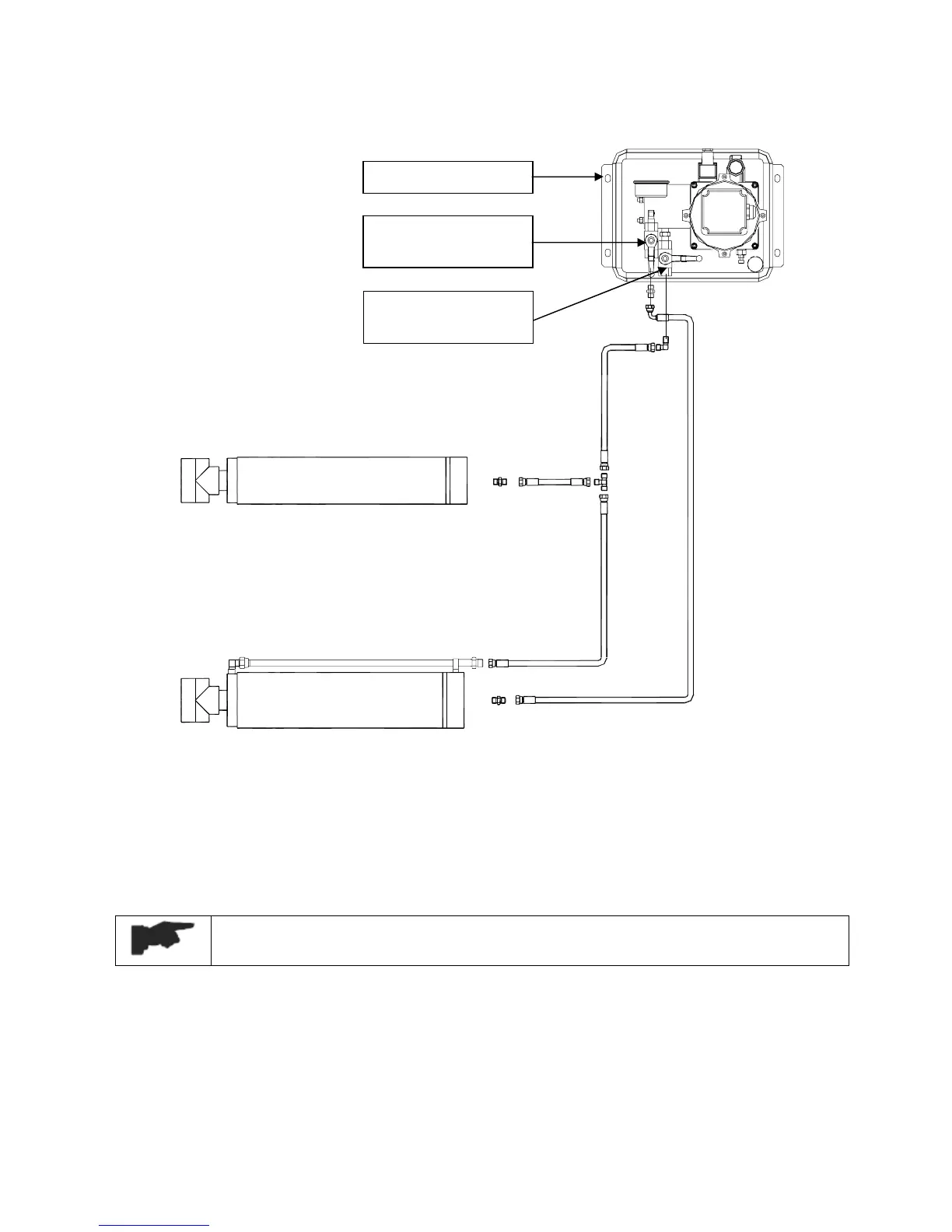

Figure 14 – HYDRAULIC CONNECTIONS
7.6 PNEUMATIC SYSTEM CONNECTION
The pneumatic supply at site (to which the pneumatic system of the lift is connected) must be equipped
with a servicing unit composed of water separator, lubricator and pressure reducer. These devices can
be supplied by the manufacturer on request.
The pressure in the pneumatic line must be kept around 6bar – 8 bar.
For the connection of the pneumatic lines proceed as follow referring to the figure 15:
• Connect the pneumatic lines pre-assembled on the runways to the solenoid air valve in the
control unit;
• Connect the pneumatic system of the lift to the pneumatic supply at site;
• Check the pneumatic control operations for proper performance.
Master hydralic cylinder
Slave hydralic cylinder
Hydralic power unit
Leveling cutoff cock
(nomrally open)
Leveling cutoff cock
(nomrally close)
