EN
4. Technical data
4
- 11 -
951-150-032-EN
Version 09

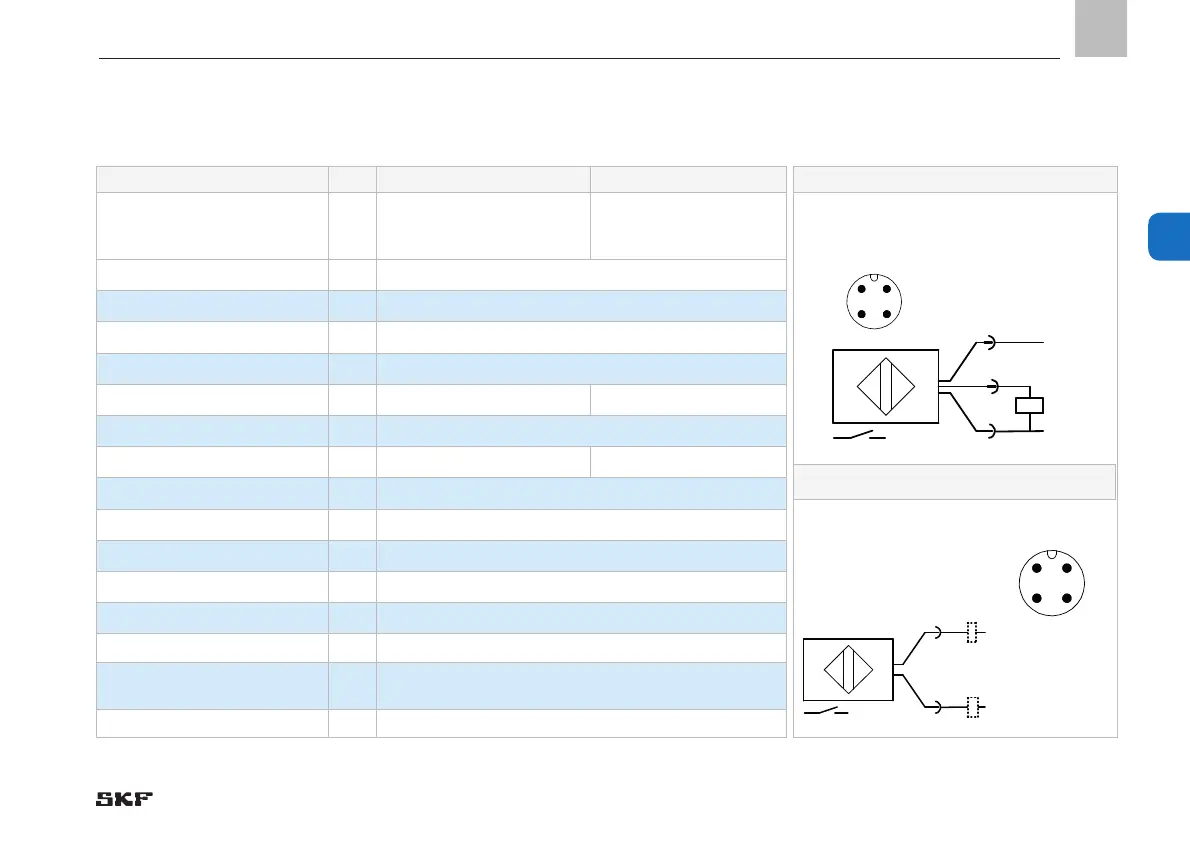

Electrical data Universal piston detector Bipolar piston detector Universal piston detector
Design
3-wire DC PNP
2-wire DC PNP/NPN
2-wire DC PNP/NPN
Operating voltage [V] 10-36 DC, supply class 2 per cULus
Max. harmonics [V] +/- 10% of max. permissible operating voltage
Power consumption [mA] < 5 only in 3-wire operation
Protection class III
Polarity reversal protection Yes Reversible
Output function NO contact
Voltage drop [V] 3.5 4.5
Minimum load current [mA] 5
Residual current [mA] < 0.8
Current-carrying capacity [mA] 100
Short-circuit-proof Yes
Overload-proof Yes
Switching frequency [Hz] 10, with damping surface Ø 4mm to 7 Hz
Enclosure rating [IP]
IP65 / IP68 / IP69K; with cable box screwed
on properly
Immunity to magnetic fields [mT] - 0.5 to +0.5
L+
2/4
1
L-
3
4
1
3
2
Connector pin assignment with cable break
protection 3-wire DC PNP
Universal piston detector
Connector pin assignment without cable
break protection 2-wire DC PNP/NPN
4
1
3
2
L+
1
2/4
L-
