4. Technical data
- 10 -
951-150-032-EN
Version 09

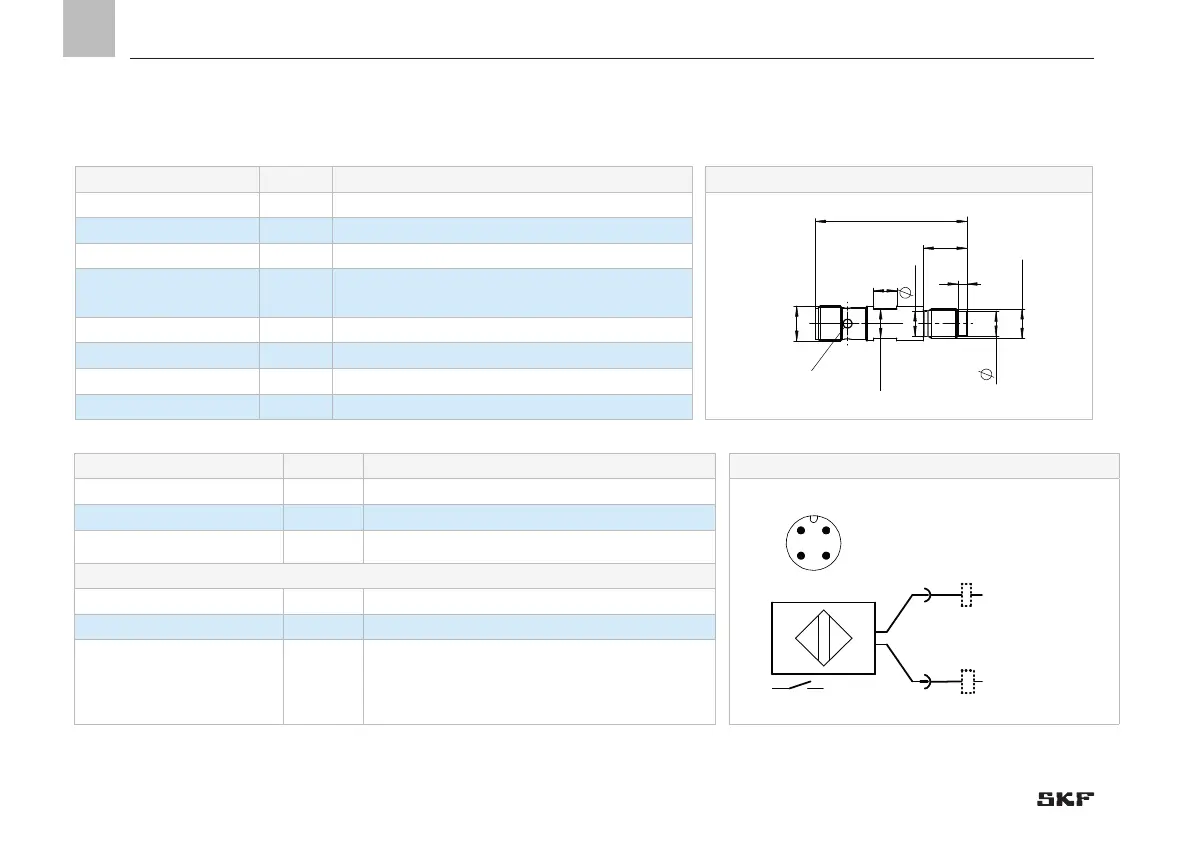

4. Technical data
4.1 General technical data
General data Designation Dimensioned drawing
Field of application Lubricant metering devices
Ambient temperature [°C] -40 ....+85
Principle of operation Piston detector/position sensor
Material
Active area stainless steel (1.4404); housing stainless
steel (1.4016), plug: PEI
Mounting type Mountable flush in the associated adapter
Tightening torque [Nm] 7
±0.5
Circuit state display LED Yellow/lights up on damping
Electrical connection M12x1 plug-in connection, gold-plated contact
Sensing range Bipolar piston detector
sensing distance [mm] 2.2 condition on delivery
Effective sensing distance (Sr) [mm] 2.2 ±10%
Hysteresis [% of Sr] ≤ 10
Accuracy/deviations
Switching point [% of Sr] ±10%
Reproducibility [% of Sr] ±10%
Permiss. operating pressure
with associated adapter
r
[bar]
Identical to permissible operating pressure of the
metering device in which the sensor with adapter is
installed (see metering device documentation).
8,5
15
M10x0,8
52
SW10
M12x1
8
8,7
3
LED
L+
L-
1 (4)
4(1)
4
1
3
2
2-wire DC PNP/NPN
