SKF Multilog IMx-S 16 User Manual

Unit Configuration
Digital Inputs
SKF Multilog On-Line System IMx-S 3 - 3
User Manual – Revision S
At maximum ambient temperature, the total sensor power from all inputs must not
exceed:
IMx-S 16 10 W
IMx-S 32 10 W (at 60 ˚C [140 °F] only IEPE sensors are recommended)
At lower temperatures more total sensor power is allowed; please contact TSG or an SKF
application engineer.
Important - Do NOT change DIP switch settings while the IMx-S unit is powered,
as this may cause damage and void warranty.
Important - Before powering the IMx-S unit, make sure that DIP switch settings
are properly set to match the recommendations for the connected sensors. Incorrect
settings may cause permanent damage to the IMx-S unit.
Digital Inputs

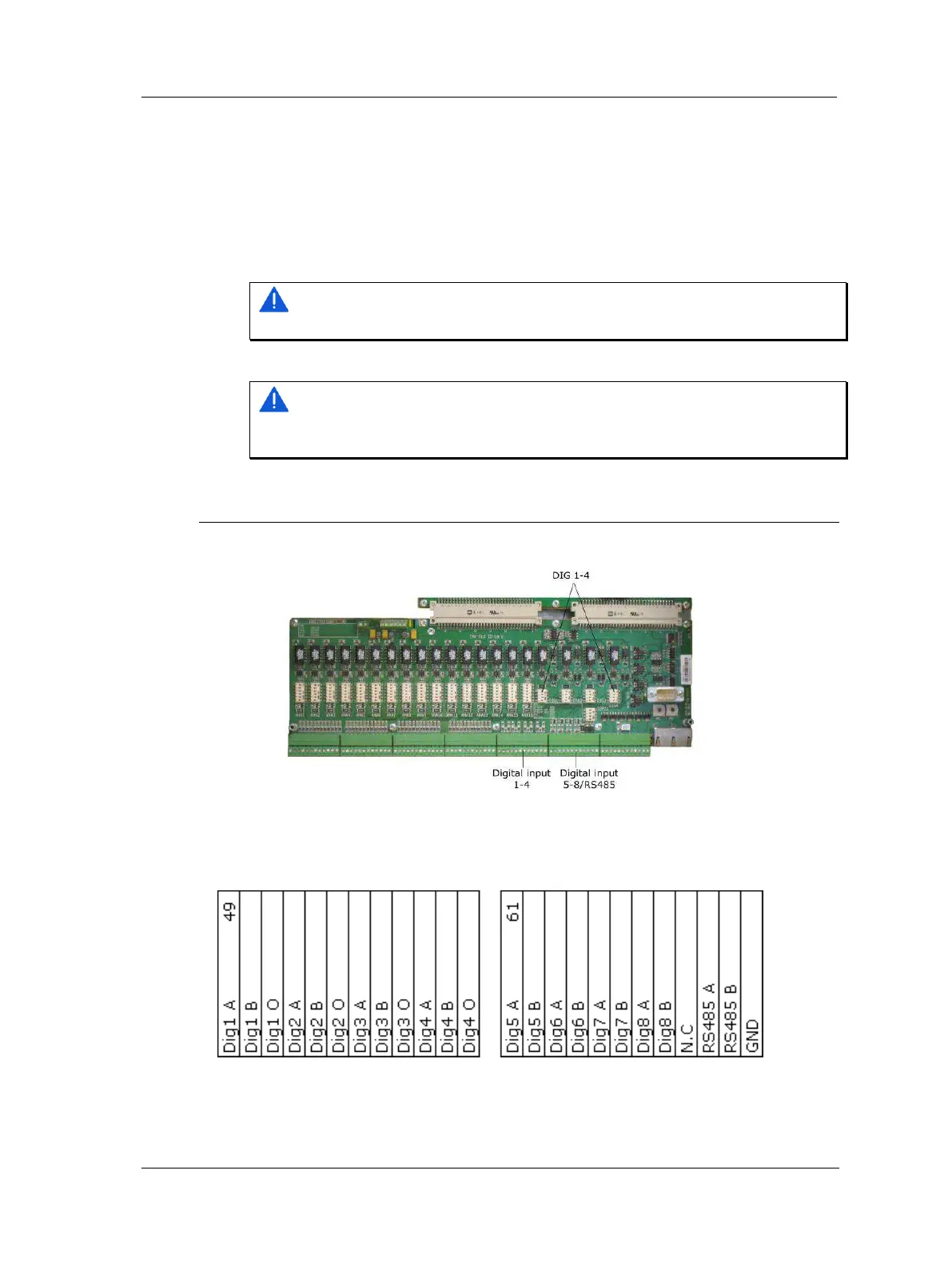

The IMx-S I/O board along with the corresponding digital terminal list are shown below.
Figure 3 - 3.
IMx-S I/O Board, Digital Inputs.
Table 3-4: Digital terminal list.
Digital inputs 1 to 4 (Dig1 to Dig4) are configurable via DIP switch settings. These must
be set according to the table below.
