SKF SF10A - Page 22

22

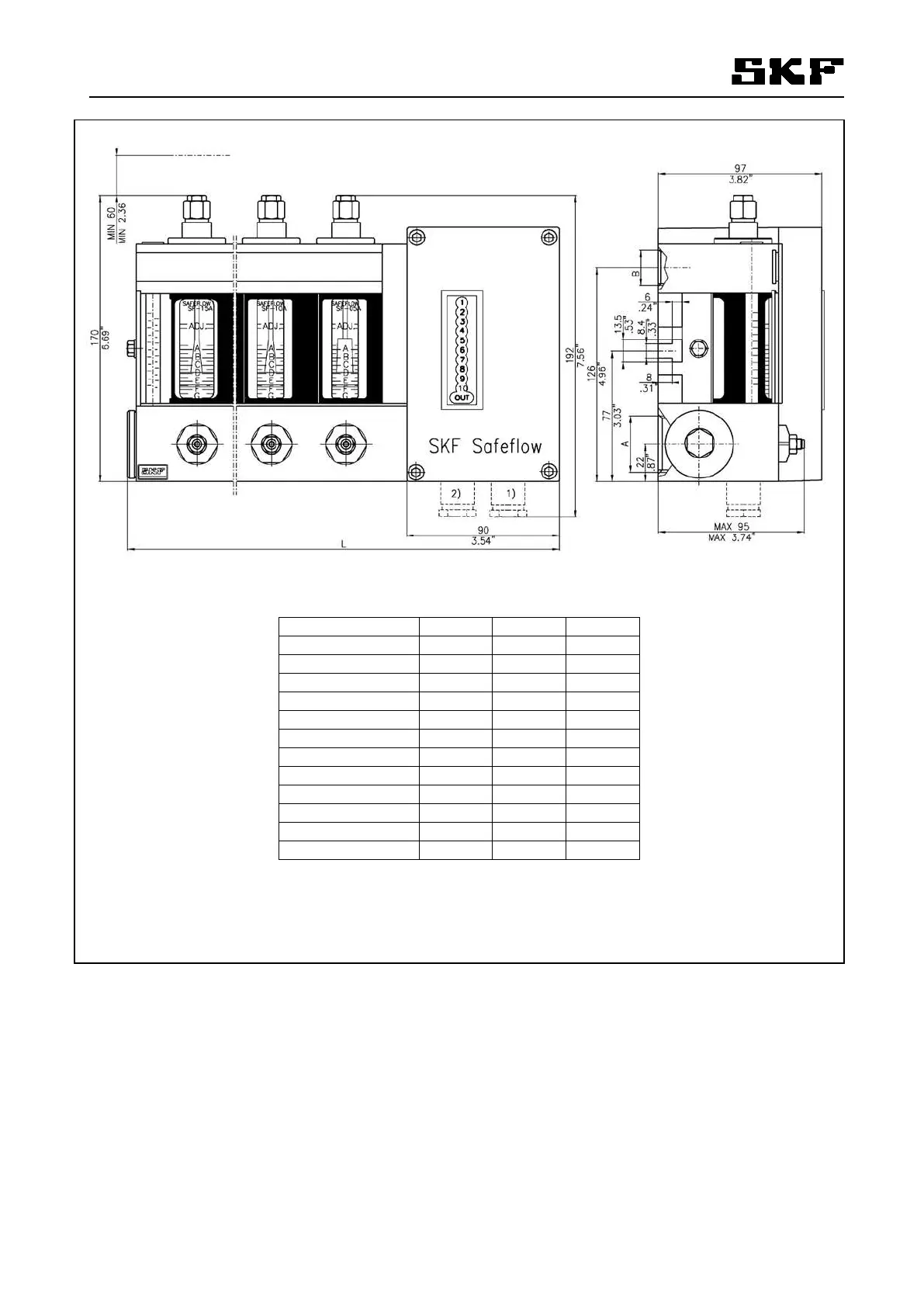

Figure 2. Dimensional drawing SF05A, SF10A and SF15A, with alarm
1) -BSC models only, 1) + 2) BSS models only.
Type
L
A
B
SF**A-01-RA-BS*
170 mm
G 1/2
G 1/2
SF**A-02-RA-BS*
214 mm
G1
G 1/2
SF**A-04-RA-BS*
302 mm
G1
G 1/2
SF**A-06-RA-BS*
390 mm
G1
G 1/2
SF**A-08-RA-BS*
478 mm
G1
G 1/2
SF**A-10-RA-BS*
566 mm
G1
G 1/2
SF**A-01-UA-BS*
6.69”
NPT 1/2
NPT 1/2
SF**A-02-UA-BS*
8.43”
NPT 1
NPT 1/2
SF**A-04-UA-BS*
11.89”
NPT 1
NPT 1/2
SF**A-06-UA-BS*
15.35”
NPT 1
NPT 1/2
SF**A-08-UA-BS*
18.82”
NPT 1
NPT 1/2
SF**A-10-UA-BS*
22.28”
NPT 1
NPT 1/2
