8.4 Electrical installation BSC-051015 and BSC-12030
The switching and set points with the electronic module FAU1015C are shown in Figure 27, FAU1015C lay-
out.
The terminal block meanings are listed in Table Terminal block sequence (see section 8.7 ).

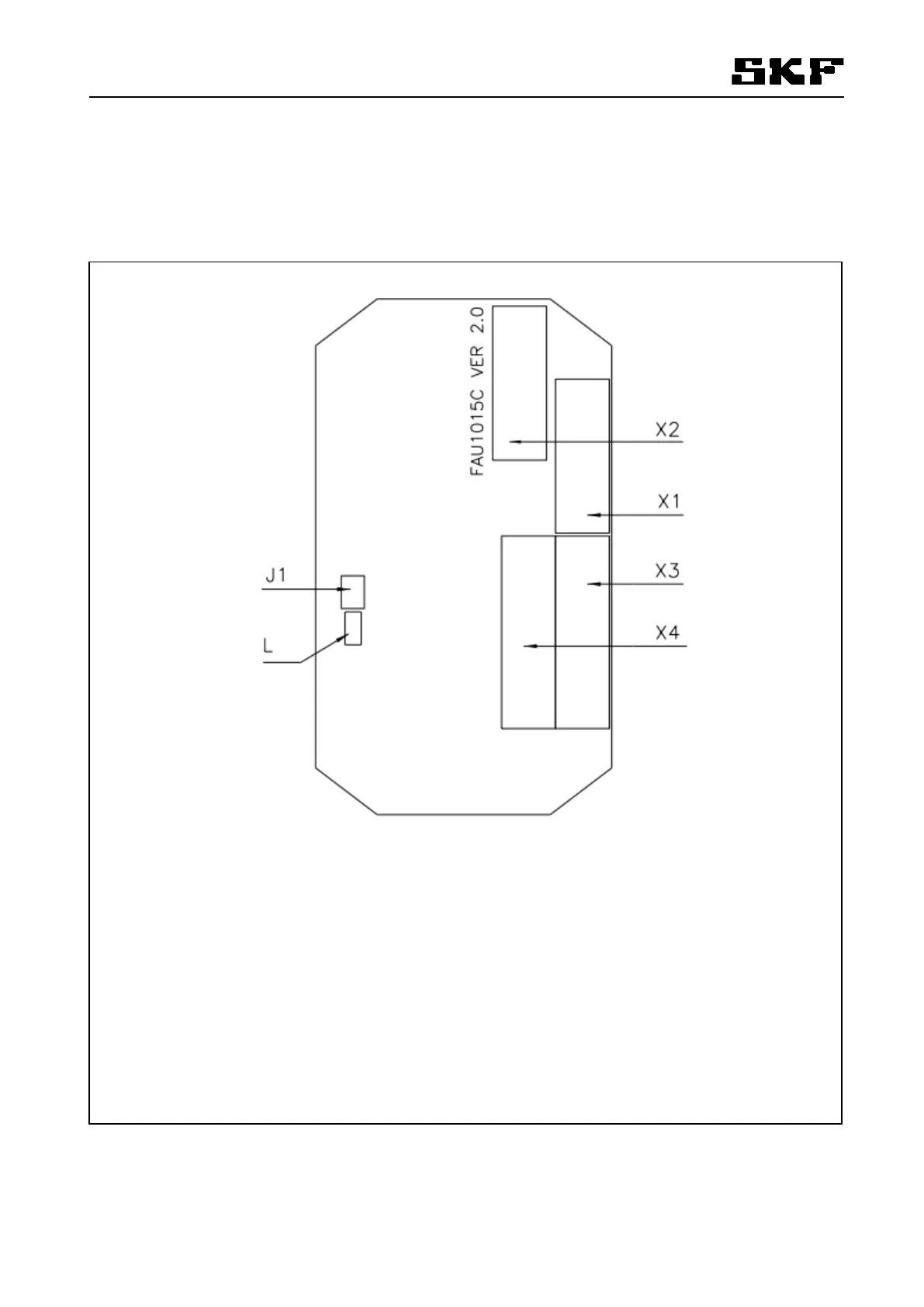

Figure 27. FAU1015C layout
461246
J1 Delay setting
L Indicator
X1 Terminal block power supply
X2 Terminal block alarm output
X3 Terminal block sensors 1 – 5
X4 Terminal block 6-10
