SKF TLSD 1-DK User Manual

7EN
1. Technical data
Designation TLSD 1-DK
Automatic single point lubricator Cabled TLSD
Maximum ratings
Voltage supply (VSS-GND) 7 V to 35 V
Current supply up to 1.5 A
Quiescent current
(sleep current)
<10 mA
Relay maximum voltage 35 V
Relay minimum current 100 mA
Ambient temperature range -20 to 50 °C (-4 to 122 °F)
Max. working pressure 5 Bar
Cable
Length 550 mm
Diameter 4.8 mm Max.
Wire size 24 AWG 7/32 (0.25 mm
2
)

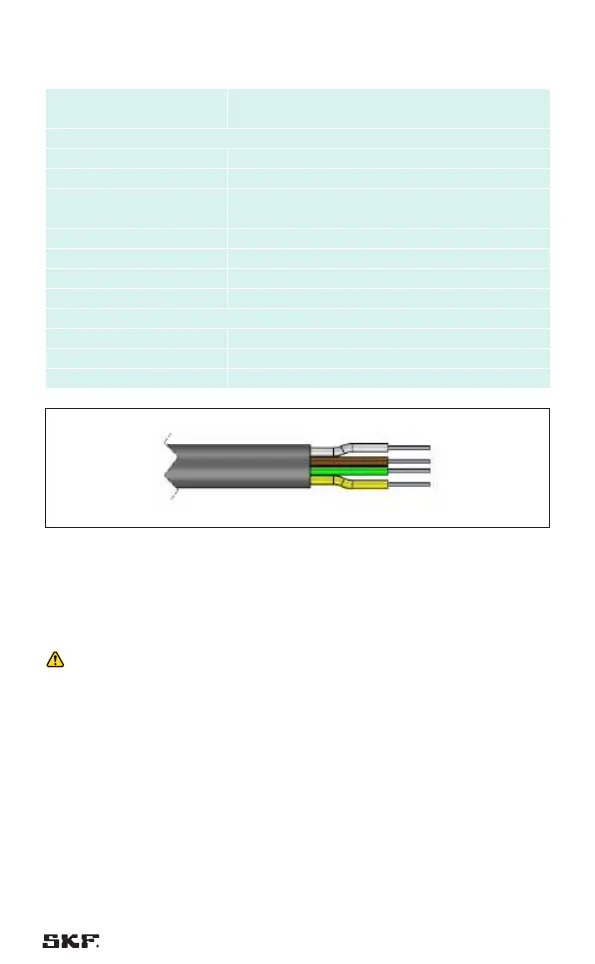

Fig. 1 – WHITE -> +Positive (VCC)
BROWN -> -Negative (GND)
GREEN -> Relay contact 1 (NO)
YELLOW -> Relay contact 2 (NO)
WARNING:
Should the power loss the dispense rate quantity calculation should be
adjusted.
