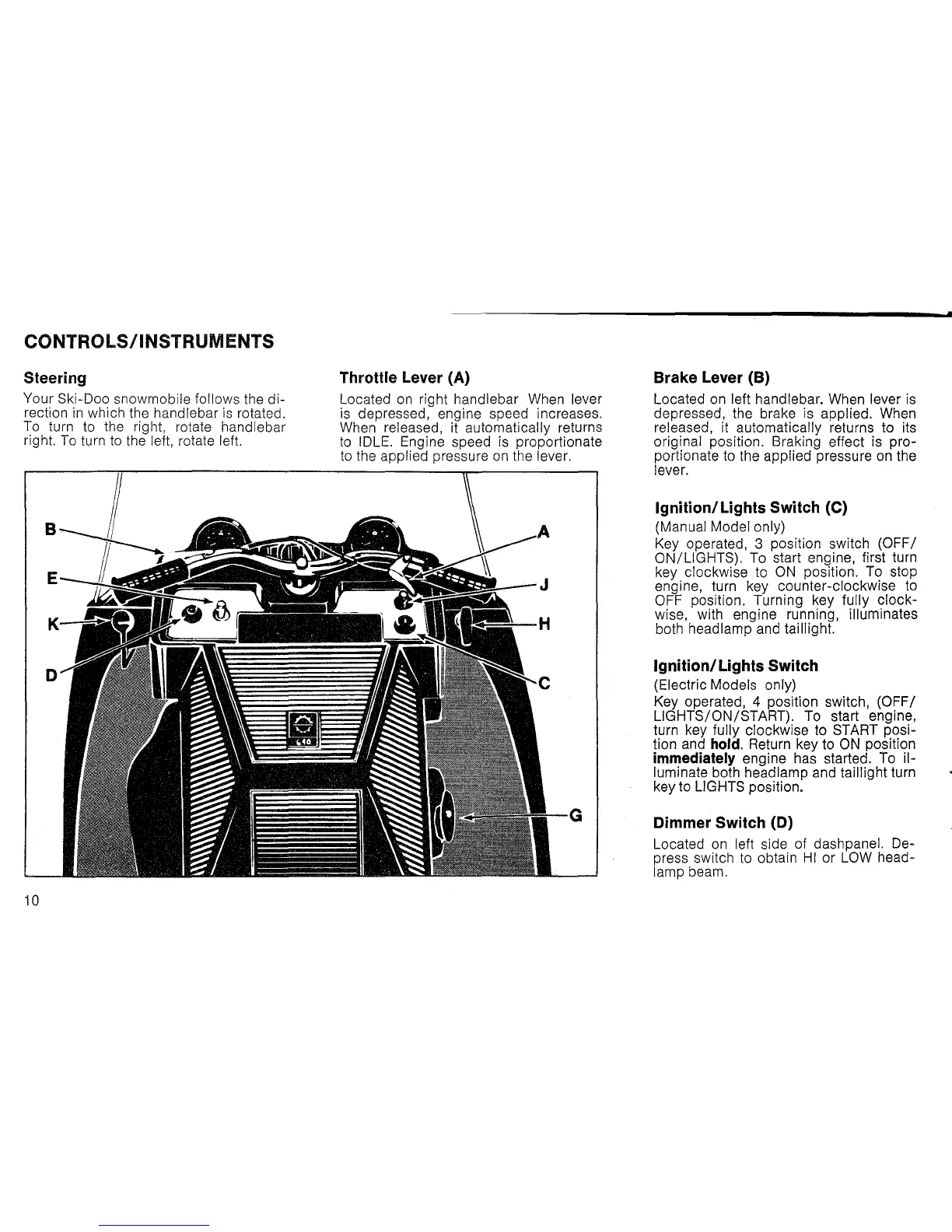

CONTROLS/INSTRUMENTS
Steering
Your Ski-Doo snowmobile follows the di-
rection
in
which the handlebar
is
rotated.
To
turn to the right, rotate handlebar
right.
To
turn
to
the left, rotate left.
B
E
K
D
10
Throttle Lever (A)
Located
on
right handlebar
When
lever
is
depressed, engine speed increases.
When
released, it automatically returns
to
IDLE.
Engine speed
is
proportionate
to
the applied pressure
on
the lever.
G
Brake Lever (B)
Located
on
left handlebar. When lever
is
depressed, the brake is applied.
When
released, it automatically returns to its
original position. Braking effect
is
pro-
portionate
to
the applied pressure
on
the
lever.
Ignition/Lights Switch (C)
(Manual Model only)
Key
operated, 3 position switch (OFF/
ON/LIGHTS).
To
start engine, first turn
key clockwise
to
ON
position. To stop
engine, turn key counter-clockwise
to
OFF
position. Turning key fully clock-
wise, with engine running, illuminates
both headlamp and taillight.
Ignition/Lights Switch
(Electric Models only)
Key operated, 4 position switch, (OFF/
LIGHTS/ON/START). To start engine,
turn key
fully clockwise to START posi-
tion and
hold.
Return key to
ON
position
immediately
engine has started.
To
il-
luminate both head lamp and taillight turn
key to LIGHTS position.
Dimmer Switch (D)
Located
on
left side of dash panel. De-
press switch to obtain
HI
or
LOW
head-
lamp beam.
,
