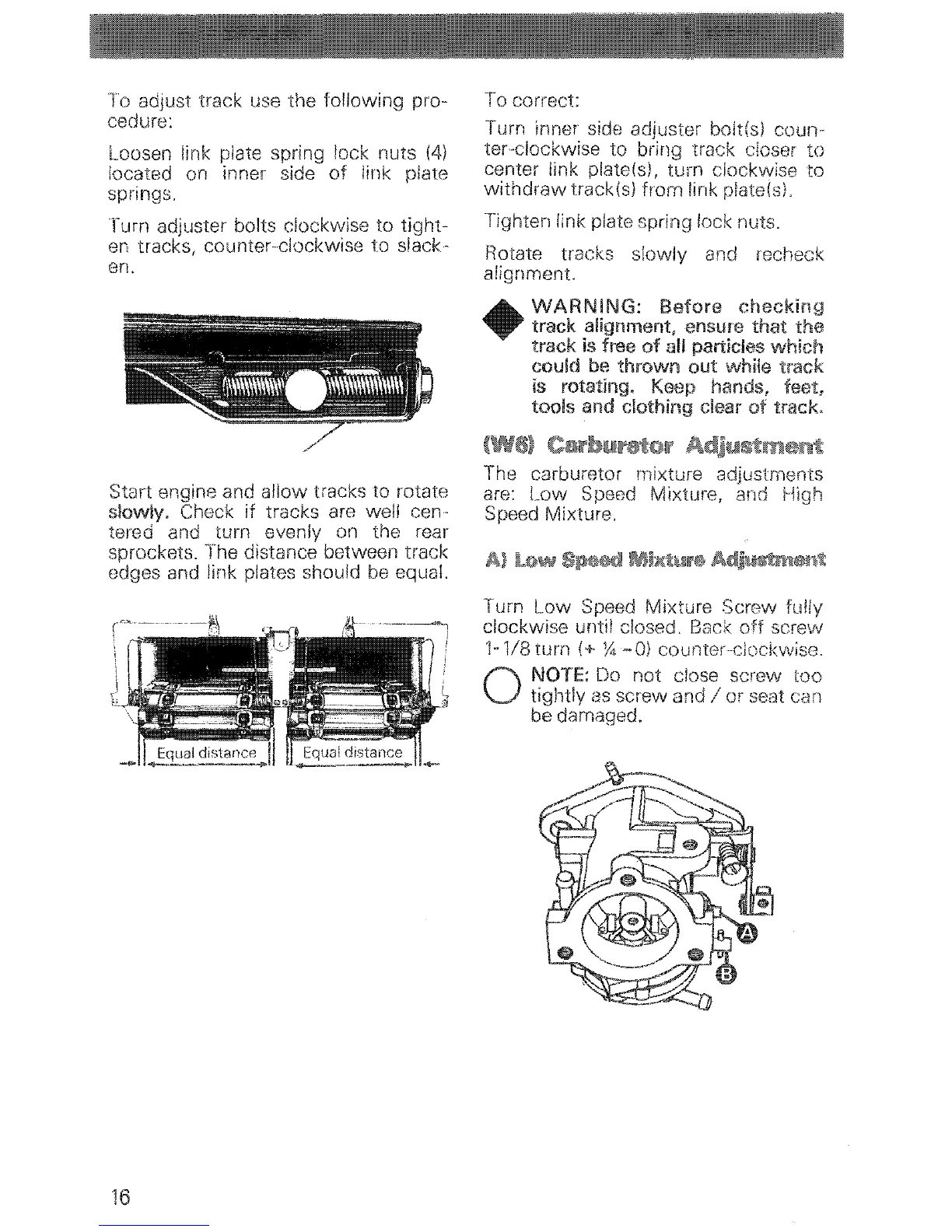

To adjust track use the following pro-
cedure:
Loosen link plate spring lock nuts (4)
located on inner side
of
link plate
springs.
Turn adjuster bolts clockwise to
tight-
en tracks, counter-clockwise to slack-
en.
To
correct:
Turn inner side adjuster boltts)
COW1-
tor-clockwise to bring track closer to
center link olatsts), turn clockwise to
withdraw
trackts)
from
link platets).
Tighten link plate spring lock nuts.
Rotate tracks Slowly and
recheck
alignment.
WARNING:
Before
track alignment, ensure
that
track
is free
of
ali particles
which
Gould be
thrown
out
while
track
is Keep
tools and
clothing
clear
The carburetor mixture
are:
Low
Speed Mlxture,
Speed Mixture.
Start engine and allow
tracks to rotate
slowly. Check if tracks are well cen-
tered and turn evenly on the rear
sprockets. The distance between track
edges and link plates should be equal.
Turn
Low
Speed Mixture Screw
clockwise until closed. Back
off
screw
1-1/8 turn
(ot-
%
~O)
counter-clockwise.
O
NOTE: Do
not
close screw too
tightly
as screw and / or seat can
be damaged.
16
