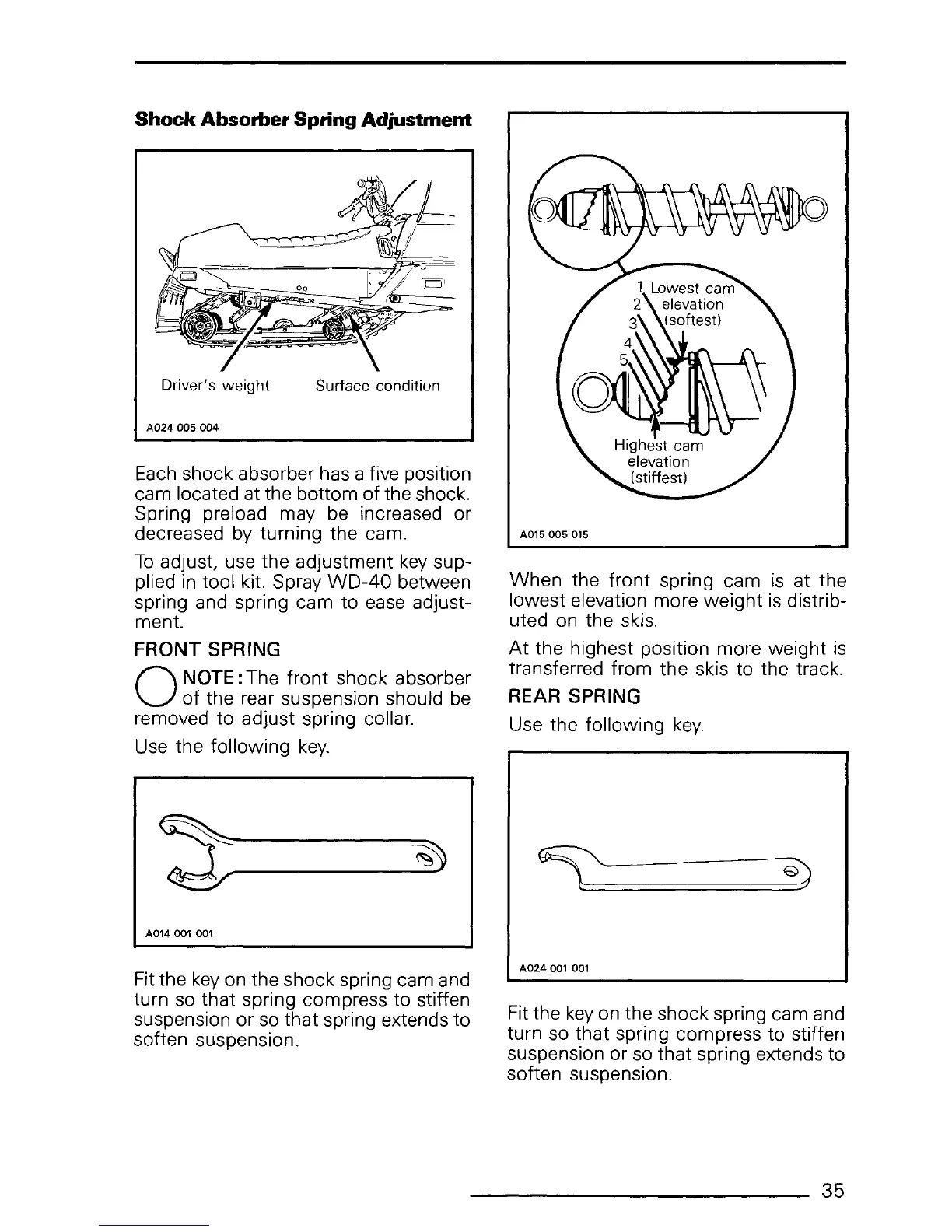

Shock
Absorber Spring Adjustment
Driver's weight
Surface condition
A024
005 004
Each
shock absorber has a five position
cam located at the bottom of the shock.
Spring preload may
be
increased or
decreased
by
turning the cam.
To
adjust, use the adjustment
key
sup-
plied
in
tool kit. Spray
WD-40
between
spring and spring cam to
ease
adjust-
ment.
FRONT SPRING
0
NOTE: The front shock absorber
of
the rear suspension should
be
removed to adjust spring collar.
Use
the following
key.
A014 001 001
Fit
the
key
on
the shock spring cam and
turn
so
that spring compress to stiffen
suspension or
so
that spring extends to
soften suspension.
A015
005
015
When the front spring cam
is
at the
lowest elevation more weight
is
distrib-
uted
on
the skis.
At
the highest position more weight
is
transferred from the skis to the track.
REAR
SPRING
Use
the following
key.
A024
001 001
Fit
the
key
on
the shock spring cam and
turn
so
that spring compress to stiffen
suspension or
so
that spring extends to
soften suspension.
35
To Next Page
