A015
005
015
0

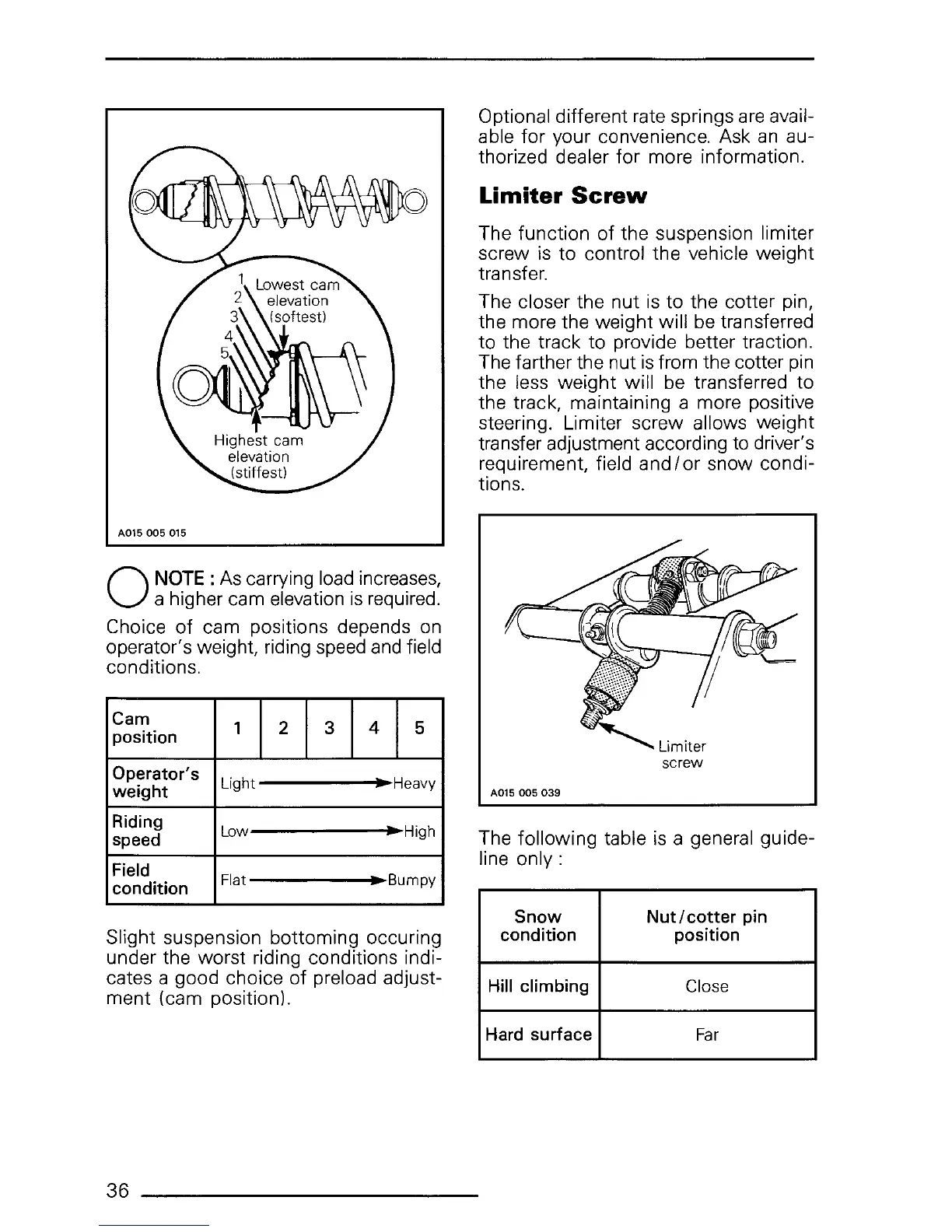

NOTE
:
As
carrying
load
increases,
a higher cam elevation
is
required.
Choice
of
cam positions depends
on
operator's weight, riding
speed
and
field
conditions.
Cam
1 2 3
4
5
position
Operator's
Light Heavy
weight
Riding
Low High
speed
Field
Flat Bumpy
condition
Slight suspension bottoming occuring
under the worst riding conditions indi-
cates a good choice
of
preload adjust-
ment (cam position).
36
Optional different rate springs
are
avail-
able for your convenience. Ask
an
au-
thorized dealer for more information.
Limiter
Screw
The function of the suspension limiter
screw
is
to control the vehicle weight
transfer.
The closer the nut
is
to the cotter pin,
the more the weight will
be
transferred
to the track to provide better traction.
The farther the nut
is
from the cotter
pin
the less weight will
be
transferred to
the track, maintaining a more positive
steering. Limiter screw allows weight
transfer adjustment according to driver's
requirement, field and
I or snow condi-
tions.
screw
A015
005 039
The following table
is
a general guide-
line
only:
Snow
Nut
I cotter
pin
condition position
Hill climbing
Close
Hard surface
Far
