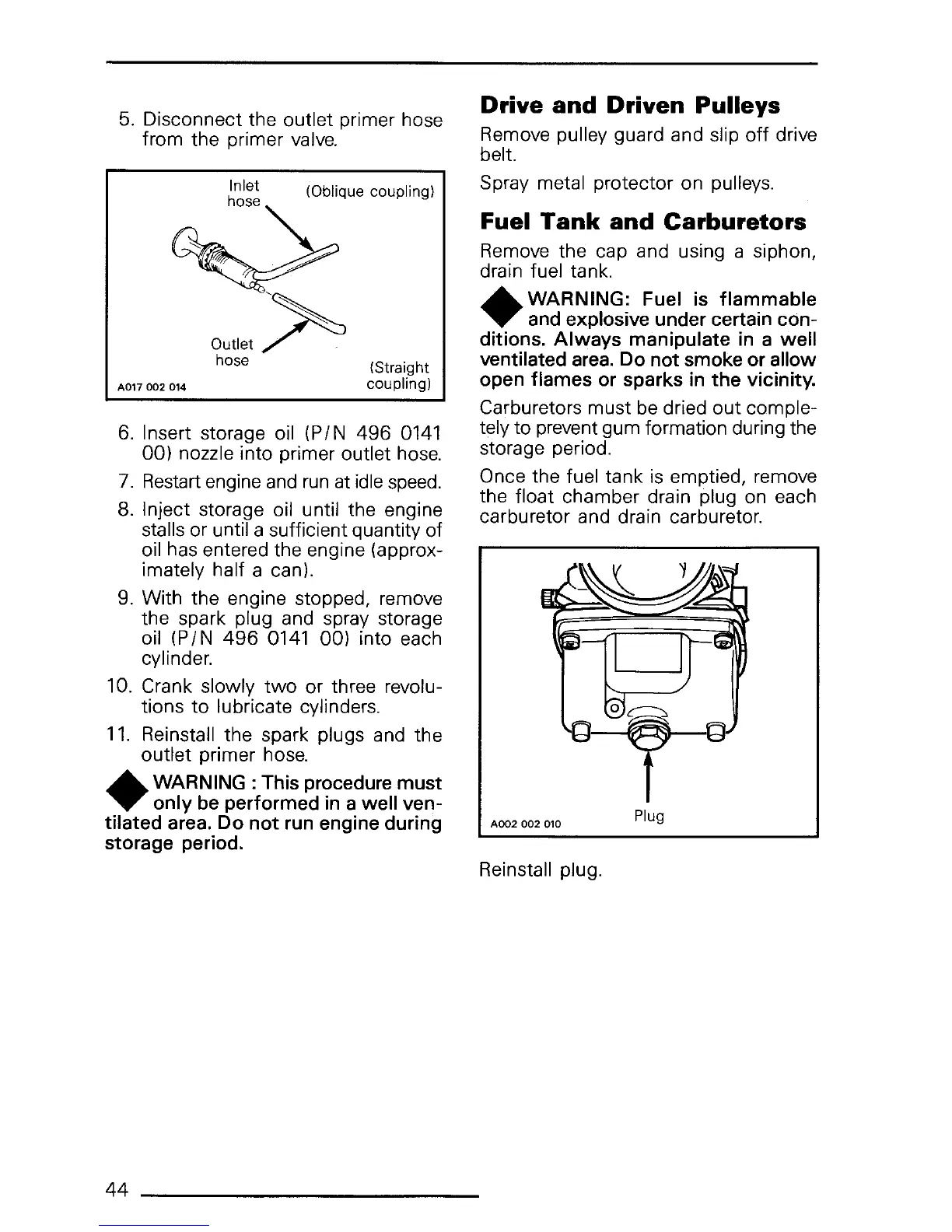

5.
Disconnect the outlet primer hose
from the primer
valve.
Inlet (Oblique coupling)
v
A017
002
014
Outlet~
hose
(Straight
coupling)
6.
Insert storage oil (P/N
496
0141
00) nozzle into primer outlet
hose.
7.
Restart engine
and
run
at
idle
speed.
8.
Inject storage oil until the engine
stalls or until a sufficient quantity of
oil has entered the engine (approx-
imately half a can).
9.
With the engine stopped, remove
the spark plug and spray storage
oil (P/N
496
0141
00) into each
cylinder.
10. Crank slowly
two
or three revolu-
tions to lubricate cylinders.
11.
Reinstall the spark plugs and the
outlet primer hose .
•
WARNING :This procedure must
only be performed
in
a well ven-
tilated area.
Do
not
run
engine during
storage period.
44
------------------------
Drive
and
Driven
Pulleys
Remove pulley guard and slip
off
drive
belt.
Spray metal protector on pulleys.
Fuel
Tank
and
Carburetors
Remove the cap and using a siphon,
drain fuel tank .
•
WARNING: Fuel
is
flammable
and explosive under certain con-
ditions. Always manipulate
in
a well
ventilated area. Do not smoke
or
allow
open flames or sparks
in
the vicinity.
Carburetors must
be
dried out comple-
tely to prevent gum formation during the
storage period.
Once the fuel tank
is
emptied, remove
the float chamber drain plug
on
each
carburetor and drain carburetor.
A002
002
010
Plug
Reinstall plug.
