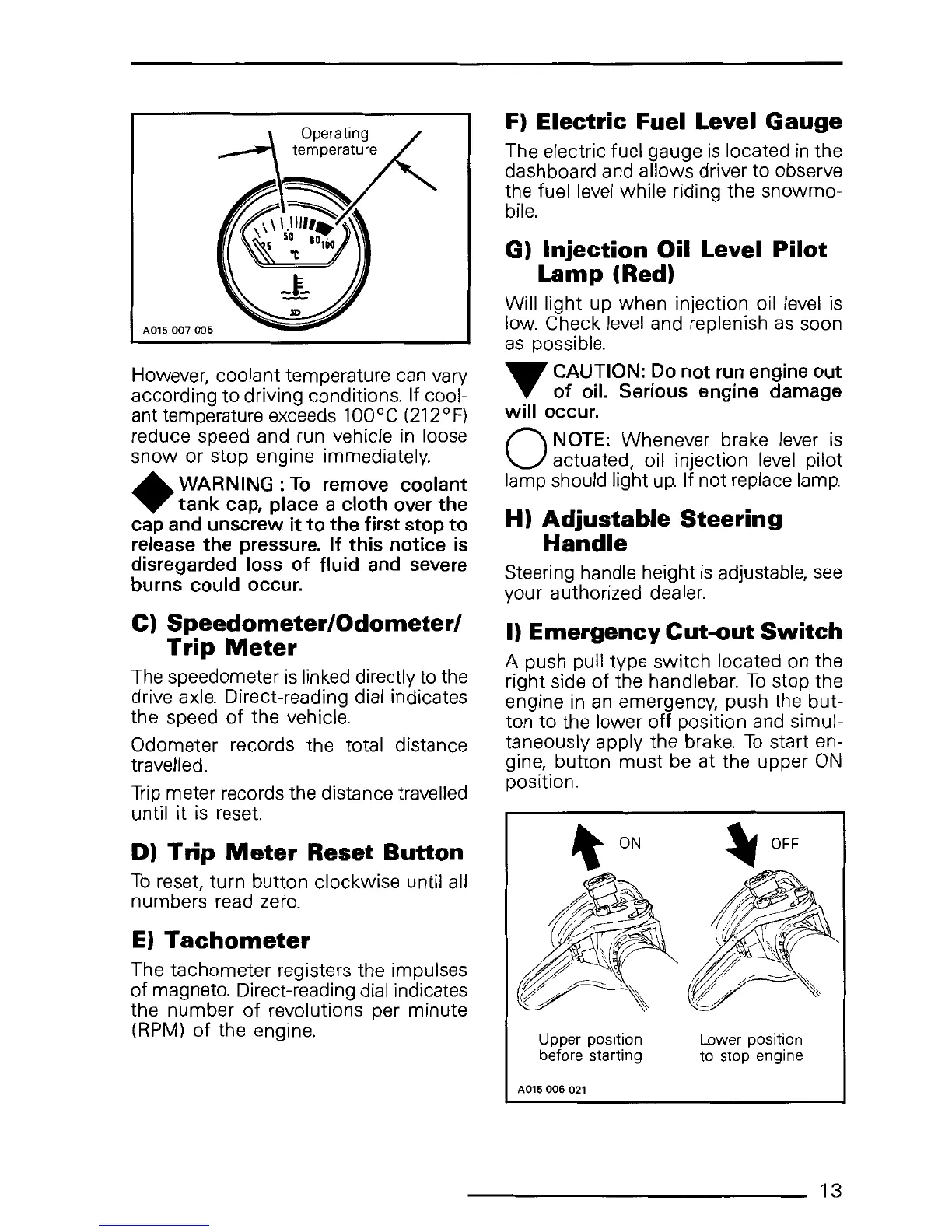

However, coolant temperature can vary
according to driving conditions. If cool-
ant temperature exceeds 100°C (212°F)
reduce speed and run vehicle
in
loose
snow or stop engine immediately.
•
WARNING :To remove coolant
tank cap, place a cloth over the
cap
and
unscrew it to the first stop to
release the pressure. If this notice
is
disregarded
loss
of fluid
and
severe
burns could occur.
C)
Speedometer/Odometer/
Trip
Meter
The speedometer
is
linked directly to the
drive
axle.
Direct-reading dial indicates
the speed
of
the vehicle.
Odometer records the total distance
travelled.
Trip
meter records the distance travelled
until it
is
reset.
D)
Trip
Meter
Reset
Button
To
reset, turn button clockwise until
all
numbers read
zero.
E)
Tachometer
The tachometer registers the impulses
of magneto. Direct-reading
dial
indicates
the number
of
revolutions per minute
(RPM)
of
the engine.
F)
Electric
Fuel Level
Gauge
The electric fuel gauge
is
located
in
the
dashboard and allows driver to observe
the fuel
level
while riding the snowmo-
bile.
G)
Injection
Oil Level
Pilot
Lamp
(Red)
Will light up when injection oil
level
is
low. Check
level
and replenish
as
soon
as
possible.
,..-
CAUTION: Do not
run
engine out
T of
oil.
Serious engine damage
will occur.
0
NOTE: Whenever brake lever
is
actuated, oil injection
level
pilot
lamp should light
up.
If not replace
lamp.
H)
Adjustable
Steering
Handle
Steering handle height
is
adjustable,
see
your authorized dealer.
I)
Emergency
Cut-out
Switch
A push pull type switch located
on
the
right side
of
the handlebar.
To
stop the
engine
in
an
emergency, push the but-
ton to the lower
off
position and simul-
taneously apply the
brake.
To
start en-
gine, button must
be
at the upper
ON
position.
~ON
Upper position
before starting
A015
006
021
Lower position
to
stop engine
13
