Ski-Doo Formula MX User Manual

CONTROLS/
INSTRUMENTS
______________________ __
A
s
Q
M
p
0--------------~

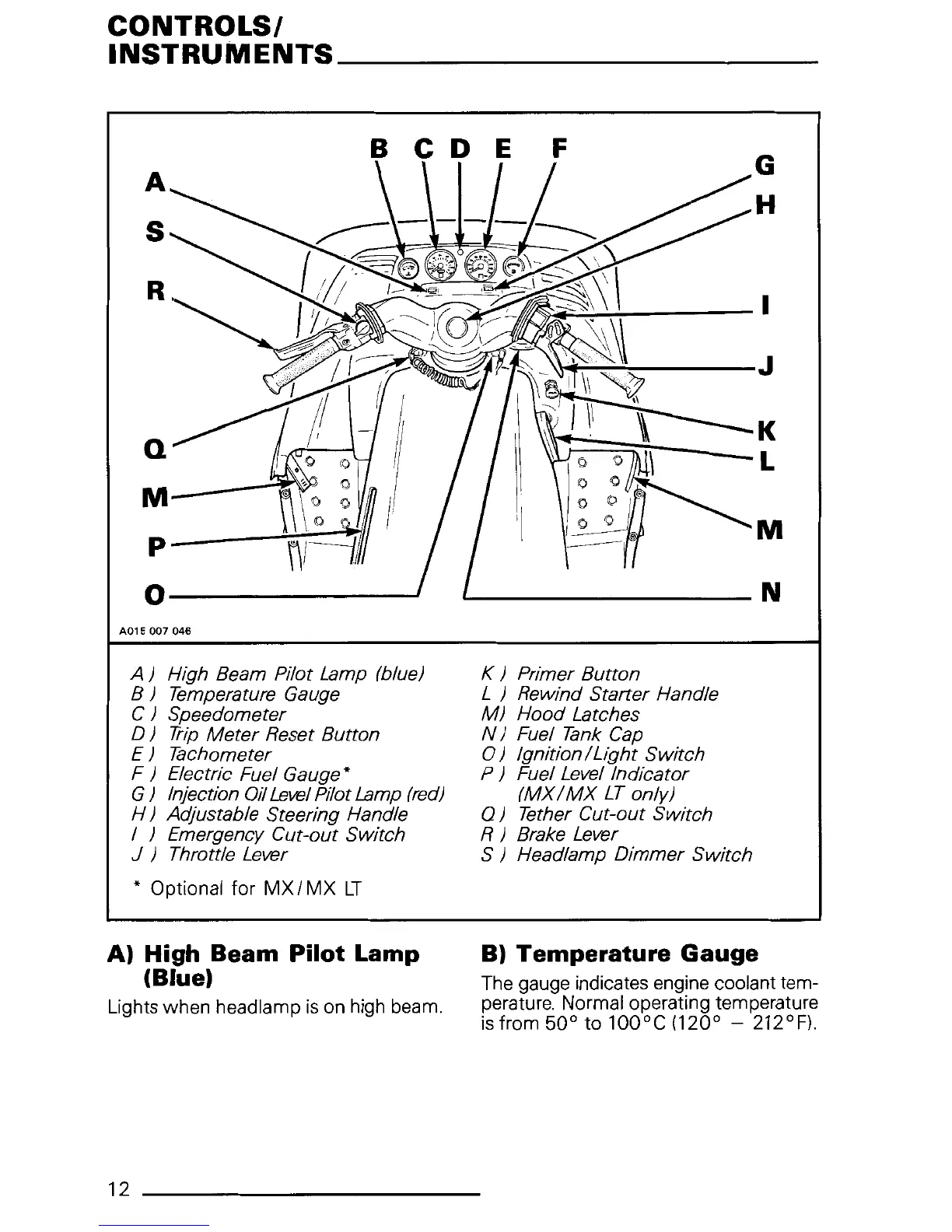

A015 007 046
A ) High Beam P1Jot Lamp (blue)
B ) Temperature Gauge
C ) Speedometer
D )
Trip Meter Reset Button
E ) Tachometer
F ) Electric Fuel Gauge*
G) Injection Oil Level Pilot Lamp (red)
H) Adjustable Steering Handle
I ) Emergency Cut-out Switch
J ) Throttle Lever
* Optional for MX/ MX LT
A) High Beam Pilot Lamp
(Blue)
Lights when headlamp is on high beam.
G
H
M
~----------------N
K ) Primer Button
L ) Rewind Starter Handle
MJ Hood Latches
N) Fuel Tank Cap
0 ) Ignition I Light Switch
P ) Fuel Level Indicator
(MXIMX LT only)
0) Tether Cut-out Switch
R ) Brake Lever
S ) Head/amp Dimmer Switch
B) Temperature Gauge
The gauge indicates engine coolant tem-
perature. Normal operating temperature
is from 50° to 100°C (120°- 212°F).
12
-------------------------
